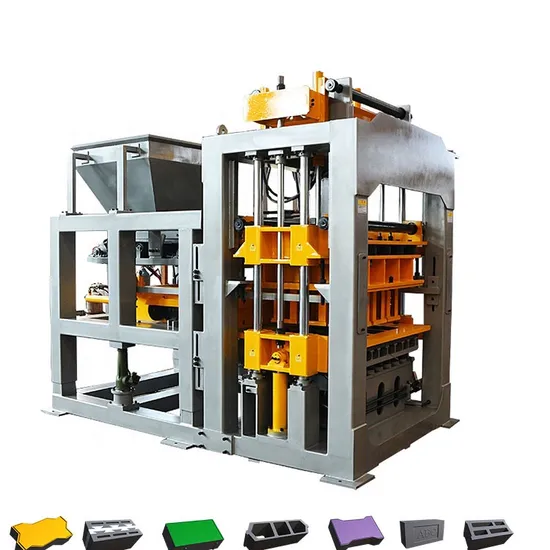

Qt12-15 Qingdao Hf Industry Automatic Cement Concrete Hollow Block Making Machine

Product Description

Product Description
QT12-15 Qingdao Hf Industry Automatic Cement Concrete Hollow Block Making Machine QT12-15 brick making machine Adopting synchronization vibration insures the products making average. The frequency can change according to different technics. Low frequency in feeding material, high frequency vibration makes the different material to have a optimal vibration way.
Main features
1) 4mm guide pillar ensure more stable
2) High pressure oil pump, bouble proportional valve.
3) PLC control and electrical components with SIEMENS brand, good quality
4) Lower frequency feeding material, high frequency vibration, block with high density

Host machine technical parameter of brick making machine
Item	details
Overall Dimension of brick machine	9350×3200×2900(mm)
Rated pressure of brick machine	21MPa
Main vibration form of brick machine	Platform vibration
Acceleration of vibration of brick machine	15-20g
Exciting force of brick machine	110kn
Cycle Time of brick machine	15-25 seconds
Vibrating Frequency of brick machine	2800-5100 rolls/minute
Overall weight	12000kgs
Motors Power	67kw
Pallet Size	1300x900x30mm
Raw Materials	crushed stone, sand, cement, dust and coal fly ash, cinder,slag, gangue, gravel, expanded perlite, and other industrial wastes
Applied Products	concrete blocks, solid/hollow/cellular masonry products,paving stones with or without face mix, garden and landscaping products,slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc

Automatic block making machine for brick making machine can produce block
Productivity of QT12-15 Automatic block making machine for brick making machine
Detailed Photos
Host machinery following:
Automatic block making machine for brick making machine Cement Silo: function storage cement

Item	Details
Capacity	50tons
Shape	whole
Diameter of tank	2m
Total height	12m

Automatic block making machine for brick making machine JS750 Mixer: mixing raw material

Item	Details
Js750 Twin Shaft mixer
Input Capacity	1200L
output Capacity	750L
Productivity	≥35m3/h
mixing vane rotation speed	30.5r/min
power	38.6KW
Weight	6800KG
Dimension ((L×W×H)mm	3220×2400×2600

Automatic block making machine for brick making machine PLD 1200 Batching machine: batching and weighing raw material

Item	Details
Cubage of weighing hopper	1.2 m³
Cubage of reserve hopper	3×4 m³
Productivity	72 m³/h
Max. metage	2000 kg
Batching category	3
Dimension(L×W×H)mm	8650×2000×2900

Automatic block making machine for brick making machine GMT pallet: support wet block to nature dry.
With 70% glass fiber, within 5 years broken, free change new one
Certifications

Packaging & Shipping
Installation Instructions

Item	Details
Whether arrange engineer to installation machine	yes, our factory will arrange engineer to your local install machine and free training your worker
Instruction	We will send you e-instruction

Block making machine oversea projects
Customer and Exhibition
Every year we will attend construction exhibition for Automatic block making machine for brick making machine

Company Profile
Shandong Hongfa Machinery Co., Ltd is a construction and building materials equipments manufacturer mainly produce all kinds of AAC block making machine, concrete mixing plant, mixer, concrete block making machine, concrete tile making machine and concrete pipe making machine with more than 20 years experience and being the biggest manufacturer in China at present. All the products are conformity with the standard of the state, and gets the ISO9001-2008 Quality System Certificate, also honored as 'One of the Top Ten Famous Brands of Bricks & Tile Field in China' and other honors.
..Build in 1990, more than 30 years experience
..Land covers 436acres
..Plant construciton area of 86000 m2
..Engineer and technical personnel 1120 people
..More than 300 various types of precision machine tools

Block making machine work shops
FAQ
1. where to find reliable and direct factory for block machine ?
---Shandong hongfa have more than 33 years rich experience in block machine manufacturing. welcome your visit.
2. Do you have ready machine in stock ?

--- we do have stock, but almost all our molds need customized according to local size requirements.
3. Do you have branch office in my country ?
--- until now we have distributor in Uz and Algeria etc. contact us if you need their contacts.
4. If my machine break down how to do ?
-- Contact me let us help to find the problem, and we can send spare parts to restart your machine.
5. I have no experience, how to install the block machine and how to change molds ?
--we have instruction books and video to teach you , if not workable, we will send engineers to your land for training.
6. HOW to pay ? is my money safe ?
---- yes dear your money is protected by the made-in-china platform. you can pay by TT BANK or LC at sight.
Contact person: Nena liu
