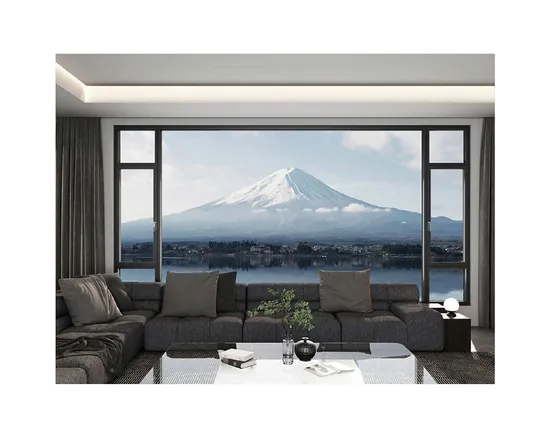

H88 Broken Bridge Window Screen Integrated Double Inner Opening Window

Product Description

H88 broken bridge window screen integrated double inward opening window is a broken bridge aluminum door and window that combines the heat insulation function of the broken bridge window, the insect protection function of the gauze curtain and the double inward opening design window type. There is a heat-insulating "broken bridge" in the middle of the window frame, which can effectively reduce heat conduction and improve the heat-insulating performance of the window. Screen curtains on windows are usually used to prevent insects from entering the room while maintaining air circulation. The window frame and window sash are integrated and can open two doors inward. It can be cleaned and maintained more conveniently, and it also facilitates the exchange of indoor and outdoor air.
Product Features
The frame, stems and fans are all rectangular cavity designs, with glue-injected corner codes and glue-injected functional connectors, making the connection firm and the frame structure stable;
The cast aluminum corner code is used. The corner code has both the corner assembly function of the corner assembly and the corner assembly function of the jack screw. It is suitable for different processing habits and processing equipment.
A full range of outdoor EPDM strips are designed for sealing, and the glass buckles are all on the indoor side, eliminating installation hazards. The glass buckles are designed with a cavity structure, which is not easy to deform, has high strength, blocks air backflow, and improves the sealing performance and wind pressure resistance of doors and windows. strength.
Standard configuration 5G+27A+5G is super large and hollow, filled with erotic gas (xenon), which effectively reduces the heat loss of door and window glass, blocks noise, and achieves excellent noise reduction, heat preservation, and sound insulation performance.
The multi-cavity structure design of the profile can reduce heat loss caused by air convection, achieve good thermal insulation performance, and can also isolate the transmission of sound.
The exterior and interior are coplanar, making the inside and outside of the window sash flush, perfectly hiding the gap between the frame and sash, and making the visual effect more simple and beautiful.
Using 20mm national standard PA66 cavity-type nylon insulation strips, it effectively blocks indoor and outdoor heat transfer channels and brings stable thermal insulation performance to the entire window.
The three-layer sealing structure effectively separates the water vapor cavity, successfully achieves equal pressure balance of air and water, significantly improves the water tightness and air tightness of doors and windows, and enhances the sound insulation effect.
The anti-collision and corner protection technology of the window sash solves the problem of sharp corners, making the design safer and preventing accidental scratches. It is a more humane modern home design.
The open drainage function design, combined with the external windshield drainage cover, avoids the phenomenon of water backflow and makes drainage smoother.
In the scenario where floor-to-ceiling inverted windows are designed, a safety glass guardrail can be designed indoors.
A variety of reinforced center sills and additional reinforced center stile designs to meet different height and strength requirements;
The window screen realizes double inward opening, breaking through the structural design.
Made of 6063-T5 titanium-magnesium alloy raw material, the wall thickness of the main load-bearing material is 2.0MM

Main Profile wall thickness (mm)	Dimensions of Front-view surface (mm)		Frame wall-mounting Size (mm)	Glass thickness (mm)	Window panel
2.0mm	frame:26	Glass profile: 66	External frame: 88	5G+27A+5G	W: 400mm-800mm
	Strengthen mullion:28.5	Screen Panel:31.5	Reinforced mullion: 155		H: 400mm-2200mm
			Glass panel: 55		Weight limit: 100kg

FAQ: What Is The Thermal Insulation And Waterproof Performance? Using 20mm national standard PA66 cavity-type nylon insulation strips, it effectively blocks indoor and outdoor heat transfer channels and brings stable thermal insulation performance to the entire window. The open drainage function design, combined with the external windshield drainage cover, avoids the phenomenon of water backflow and makes drainage smoother. What are the advantage of casement window? Open or close window with hinge easily. Casement window offers large area air circulation and unobstructed view. It can show excellent sound and heat insulation function. What Material Of Aluminum Is Used? Made of 6063-T5 titanium-magnesium alloy raw material, the wall thickness of the main load-bearing material is 2.0MM Does the casement window have screen? Yes, you can order casement window matching with built-in screen, which can increase your window functionality. Is the casement window safe? Yes, HSTM® casement window is equipped with anti-falling rope to prevent damage window sash from falling by accident.A child lock can be customized and a safety glass guardrail can be designed indoors for all-round protection. Can I customize the glass type for the casement window? Yes, you can select different types of glass for your casement windows to meet the requirements of sound insulation, heat insulation or safety protection. You can get more information in detail pages. What Are The Colors Of casement Windows? There are various colors such as sand gold black, black gold stone, sand grain gray, sand grain coffee, titanium empty gray, golden teak, etc. At the same time, you can customize it according to your personal needs. For details, you can communicate with us through the HSTM contact information. What's the price of casement window? The price range of casement window can vary depending on factors, such as dimension, model, glass type and additional features. We will recommend you to consult with HSTM team to get free quotation.
