Safety Door Frames and Fire Door Frame Roll Forming Machine Manufacturer
Product Description

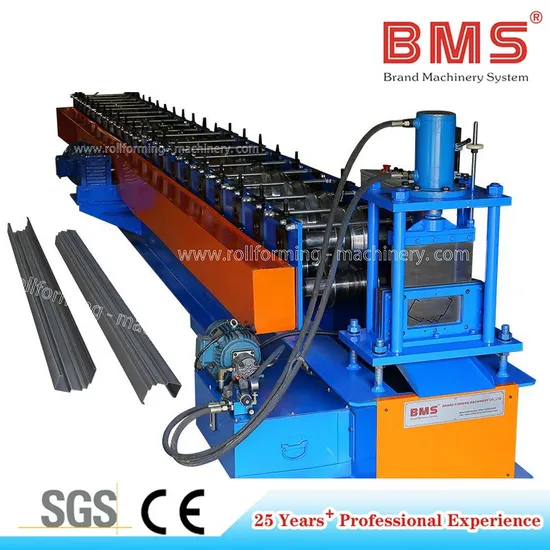

Steel Door Frame Roll Forming Machine
Material
Material Thickness:0.7-1.2mm
Machine Components Feed Material Device
Main Machine
With feeding material guide, body frame made from H400 type steel by welding
Side wall thickness: Q235 t18mm
Rollers manufactured from 40Cr steel,CNC lathes,Heat Treatment,hard Chrome Coated
Shafts Diameter=ф75mm,precision machined
Gear/Sprocket driving,about 14-step to form
Main Motor=11KW , Frequency speed control
Real forming speed 15-18m/min (Not include cutting time)
Post Hydraulic Punching+Cutting Device
Post to cut, stop to cutting,Two pieces type of cutting blade design, no blanking
Hydraulic motor: 3KW ;Cutting pressure: 0-14Mpa
Cutting tool material:Cr12MoV,Heat treatment to HRC58-62 degree
PLC Control System
Control The Quantity And Cutting Length Automatically
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,It Can Finish The Production Automatically.

Combined With	PLC, Inverter, Touch Screen, Encoder, etc
PLC	Siemens (German brand)/Schneider(French brand)
Inverter	Siemens (German brand)/Schneider(French brand)
7-Inch Color Touch Screen	Siemens (German brand)/Schneider(French brand)
Encoder	Omron (Japan brand)Switch Bottom, Indicate Light, Power Supply, Intermediate Relay, AC Contactor
Thermal Relay	Siemens(German brand)/Schneider(French brand)
Air Switch	LG-LS(Korea brand) Cut-to-Length Tolerance≤±1 mm Control Voltage 24V

After-Sale Service
1. The warranty is 24 months after the client receives the machine.
Within The 24months, we will courier the replacement parts to the client free of charge
2.We offer technical support for the entire life of our machines
3. We can send our technicians to install and train the workers in the clients' factories with extra cost
Terms Of Trade

Minimum order quantity (MOQ)	1 Set
Delivery time	about 45 workdays
Port of loading	port of Xiamen
Type of payment	by T/T or by L/C
Export	to more than 80 countries and regions, including South Korea, Taiwan, UK, Ireland, Greece, Australia, USA, Mexico, Brazil, Russia, Saudi Arabia, UAE, Iran , India, Singapore, Malaysia, Thailand, Indonesia, Philippines, Vietnam, South Africa, Nigeria, Egypt, etc

Packing Style

Packing method

Main body of machine is naked and covered by plastic film(to protect of dust and corrosion), loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
