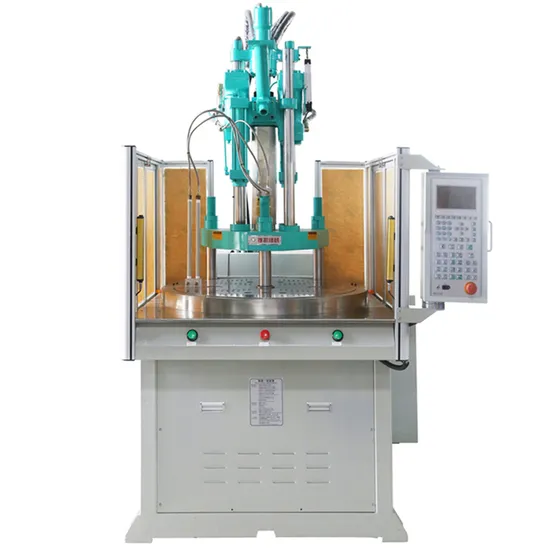

Agent Wanted BMC Bakelite Material Rotary Injection Moulding Machine Equipment

Product Description

agent wanted bmc bakelite material rotary injection moulding machine equipment
Product Description Main Features1)Chinese/English LCD display, can memorize 60 groups of mold data. 2)Double and three position platen runs smoothly and is suitable for producing various kinds of pocket inserts. It greatly improves work efficiency and saves labor. 3)It is safe because the product and delivery and inserting is not performed in molding station but the same work station. Moreover, automatic device can be used onto the machine. 4)Adopting double(pressure,flux)proportional control, the machine runs with low noise and at a high speed, it is equipped with low-voltage protective function.

Model	Unit	JY-550R2
Screw Barrel Diameter	mm	32	36	40
Theoretical Injection Volume	cm3	128.6	162.7	226
Injection Weight(PS)	g(oz)	121.5(4.28)	153.8(5.4)	201(7.08)
Max.Injection Pressure	Mpa(kgf/cm2)	201(2050)	158.85(1620)	128.6(1312)
Injection Rate	cm3/s	86.8	109.8	135.6
Injection Speed	mm/s	108
Injection Stroke	mm	160
Screw Bspeed Rotation	r.p.m	0-200
Number of Temperature Control	pcs	3+1
Nozzle Out Of From Platens	mm	45
Clamping Force	tons	55
Disk Staion	pcs	2
Clamping Stroke	mm	200
Min.Mold Thickness	mm	180/280
Max.Opening	mm	380/480
Max.Mould Size	mm	340*340/400*300
Rotary Table Size	mm	980
Ejector Distance	mm	100
Ejector Force	Mpa(kgf/cm2)	26.5(2.7)
System Pressure	KN(tf)	13.7(140)
Oil Tank Capacity	L	280
Electric Power	KW(HP)	11(15)
Heater Power	KW	5.3
Machine Dimension(LxWxH)	m	2.34*1.64*2.56
Machine Weight	tf	3.5

Vertical injection machine have the advantage of low noise, low energy consumption,high efficiency and long life time, it's widely apply to produce various terminal blocks, household appliances, consumer electronics, power tools, automotive dashboards, medical devices, open containers, connectors, cables,auto parts, Plug ,etc.
Machine Application
Our Service Pre-Sales Service* Inquiry and consulting support. * View our Factory.
After-Sales Service* Training how to instal the machine, training how to use the machine. * Engineers available to service machinery overseas.
Packing & Delivery 1.The standard package is wooden box without fumigation.
2. We can also pack it according to customers special request.
FAQ Q1:Are you a trading company or a manufactory?
A1:We are a manufactory,can give u best service and low price.
Q2:What's your guarantee or the warranty of the quality if we buy your machines?
A2:We offer you high quality machines with 1 year warranty .
Q3:When can I get my machine after I paid?
A3:We will deliver the machines on time as the date we agreed both side.
agent wanted bmc bakelite material rotary injection moulding machine equipment
