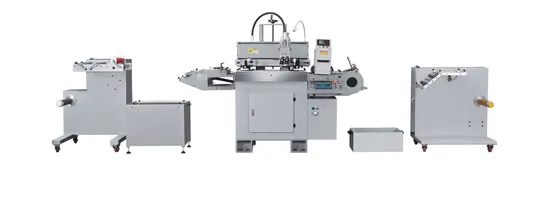

Automatic One Color Screen Printing Machine with LED UV or Taiwan UV Light

Product Description

Feature:
Full Automatic High-speed Screen Printing Machine
(1) Controlled by servo motor, adjusting printing position by auto sensors system;
(2) Tension controller and the brake make the conveying exactly;
(3) Micro adjusting meter for frame adjusting automatically;
(4) UV dryer, make the any kind ink dry enough;
(5) Free set up the printing times and the carry times on electronic touch screen;
(6) Most core parts import from Taiwan & Japan;
Teachnical Specifications:

Model No:	450
Printing size(mm)	440×600
Screen frame size (mm)	900×700
Max. Web width(mm)	450
Printing speed (IPM/Min)	0-100
Precision	±0.05mm
Power	2 phase 220V, 50/60Hz 15 KW
Max Feeding/Rewinding Diameter	700mm

Please note the machine speed may be limit by other units.
Standard Accessories

Main body	1PC
Paper feeder with air-suction unit	1PC
Rewinder	1PC
UV dryer	1PCS
Squeegee & Scraper	3PCS
Aluminium frame	2PCS

UV Technical Parameter:

Model (mm)	450
Voltage	3 phase 380V, 50/60Hz
Total Power	7.0Kw

Main accessories and Brand

Mainbody
No	Name	Brand
1	Pull servo motor	HUIKUANG
2	Printing servo motor	HUIKUANG
3	PLC	KUNSHANG
4	Electric Relay	JAPAN Hequan
5	Sensor	Japan Panasonic
6	Solid-state relay	TAIWAN YANGMING
7	Suction Device	Ruijing
8	Speed reducer	Japan KMI
9	Air cylinder	SMC

Machine Detailed Pic for Reference:
