4mm Honeycomb Cardboard Machine for High Quality Food Packaging Production
| US$800,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HF2000-100G
Sheet Former Type
Honeycomb
Paper Thickness
Normal Specification Paper
Automation
Automatic
Certification
CE
Customized
Non-Customized
Condition
New
After-sales Service
1 Year
Thickness
4-60mm
Speed
100meter/Minute
Operating Persons
7
Heating
Steam
Material
Starch/PVA
Transport Package
7 Conaniter
Specification
76000mm long x6000mm wide x5100mm high
Trademark
meixun
Origin
China
Production Capacity
10 Sets/Year
Product Description
Product Description Main Technical Parameters of the Equipment: Dive into the impressive technical prowess of our 4mm Honeycomb Cardboard Machine. Engineered with cutting-edge technology, this equipment stands as a testament to innovation in machinery. Every parameter is finely tuned to offer optimal performance and ensure the highest standards in food packaging production, providing reliability and durability to meet the demands of your business.
| parameters | Specification | |
| 1 | Facial paper (width x roll diameter) | 2 0 00mm×Φ1400mm |
| 2 | Effective width of finished paperboard | 1300mm- 2000mm |
| 3 | Paper weight | 140g/M²-- 4 20g/M² |
| 4 | Adhesive | starch glue |
| 5 | Finished paperboard thickness | 5-60mm |
| 6 | Finished paperboard length | 800mm -- 3500mm |
| 7 | Maximum production speed of honeycomb paperboard | 100m/min (sheet thickness 6mm, honeycomb side length 4.5 mm, core paper weight 80-100 grams, surface paper weight 170grams, paperboard length 2500mm) |
| 8 | heating method | steam heating |
| 9 | Equipment installed power | About 200KW _ |
| 10 | normal production power consumption | About 200 KW* 5 0%- 6 0% |
| 11 | Total weight of equipment | About 150 T (including dry unit) |
| 12 | Equipment Dimensions | 76000mm(length)×6000mm (width)×5100mm(height) |
| 13 | Direction of machine operation | based on customer's needs |
| part name | project configuration | Remark | |
| 1 | Finished paper core pulling unit | Up and down brush roller conveying | Stable conveying and even pulling |
| 2 | Paper Core Drying Unit | 6 M steam heating, hot air circulation | drying, shaping |
| 3 | Paper core conveying group | Synchronous paper core conveying group | Stable delivery |
| 4 | Facial paper shaftless paper holder | Hydraulic shaftless paper holder | Convenient |
| 5 | Arc Plate Preheating Group | Using arc hot plate | Steam heating , |
| 6 | Automatic paper splicer | Manufacturer standard | outsourcing |
| 7 | Lower core surface glue coating unit | Anilox roller gluing, metering roller independent control | The upper rubber roller is finely ground, and the amount of glue is uniform and controllable |

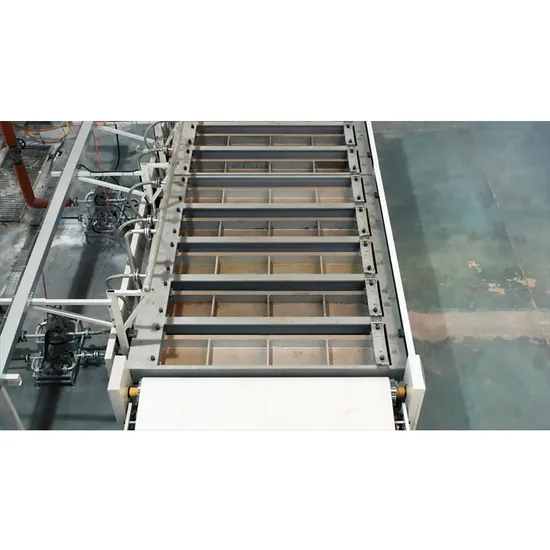

| 8 | paperboard composite drying group | with deep hole drilling steam ironing board Composite with pressure roller and cotton conveyor belt | Less steam consumption, firm composite, controllable moisture content of paperboard |
| 9 | Tissue preheating 2 | Equipped with diameter Φ 1000 preheating cylinder | Steam heating , adjustable wrap angle |
| 10 | Upper core surface glue coating unit | Anilox roller gluing, independent control of metering roller, the whole gluing part can be raised and lowered | The upper rubber roller is finely ground, and the amount of glue is uniform and controllable |
| 1 1 | paperboard composite drying group | with deep hole drilling steam ironing board Composite with pressure roller and cotton conveyor belt | Less steam consumption, firm composite, controllable moisture content of paperboard |
| 1 2 | paperboard cooling unit | Channel steel frame structure | |
| 1 3 | Servo slitting unit | 5 knives 8 lines | |
| 1 4 | Automatic spiral knife cross cutting machine | Spiral knife structure | |
| 1 5 | paperboard collection unit | Small longmen Collection | |
| 1 6 | other | Main electrical producing areas : Taiwan , Japan , South Korea , domestic |
