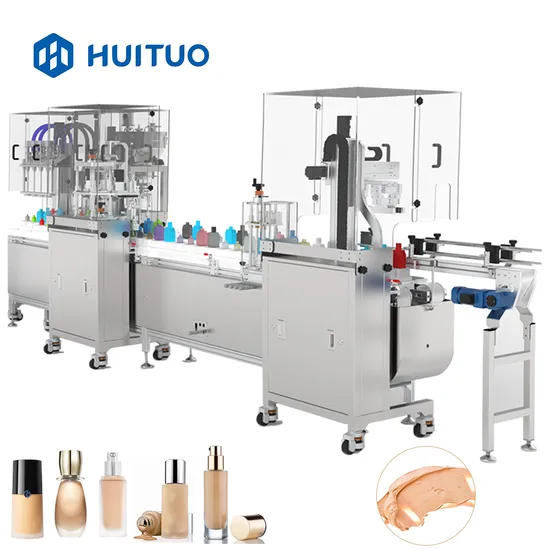

Advanced Design Bottle Filling Capping Machine for Liquid Makeup Foundation

Product Description

Advanced Design Bottle Filling Capping Machine for Liquid Makeup Foundation Basic Information
MaxMod is a multifunction modular machine that can meet diverse production needs. Suitable for assembling bottles and caps of different types, as well as filling of liquids with various viscosities. It has high filling accuracy and precise torque control. The filling components are easy to disassemble and be cleaned then changeover. Compared to traditional models, it greatly improves efficiency and is widely used in the production of daily chemical products, cosmetics and other fields.Product DescriptionIt consists of 6 modules: Conveyor Module, Air-cleaning Module, Filling Module, Capping Module, Cap-pressing Module and Puck-out Module. Only covers an area of 12 square meters. Intensive and space-saving, efficient and easy to maintain!
Characteristics1.Free combination
It consists of 6 modules: Conveyor Module, Air-cleaning Module, Filling Module, Capping Module, Cap-pressing Module and Puck-out Module.You can freely mix and purchase according to your needs.
2.Diversified production
Applicable to all types of bottles and caps. Different filling nozzles can be selected according to different materials to fill (toner, lotion, cream, etc.). Bottle fixers and claw heads can be replaced according to different sizes of caps and bottles. The process of capping and cap-pressing can be interchanged conveniently.
3.Equipments upgrade
Modular design allows more free space for the device. Different modules can be upgraded according to production requirements. It is also possible to upgrade the degree of equipment intelligence, choosing different configurations according to the needs of different development periods.
4.Reliable quality
The host adopts advanced PLC automatic control technology, and key electrical components come from globally renowned electrical component suppliers, such as Rexroth, Siemens, Sick, SMC, etc.
Product Parameters

Item	Description
Dimension	5000mm(Length)*2000mm(Width)*2000mm(Height)
Component details	4-head air-cleaning & 4-head piston filling & 2-head capping & 2-head cap-pressing & 4-head puck-out (Standard machine, customized on demand)
Applicable bottle height	30-340mm
Applicable bottle diameter	≥8mm
Applicable material	toner, lotion, cream, etc.
Filling quantity	1-500ml
Filling accuracy	±0.5%
Capping torque	≤5NM
Cap-pressing pressure	≤400N
Production speed	40-60bpm
Total power	7.0kw
Air source requirement	0.4-0.6MPa clean and stable air
Air consumption	130 NL/min 0.5-0.6MPa
Power supply	220-380V, 50-60HZ
Machine weight	930 kg
Machine material	Frame:stainless steel frame, aluminium profile; Component contact material: 316L stainless steel; Pipe material: hygiene grade hose; Electrical box: SUS304 stainless steel; Connecting and fixing mechanical components: SUS304 stainless steel; Control valve: 316L stainless steel; Capping head: silicone; Sealing part: rubber/fluoro rubber/silicone.

Why choose us?1.Extensive experience in intelligent packaging
2.Professional R&D team
3.Deep customization service
4.CCCI & UDEM & CE certification
5.One year warranty with lifetime software upgrades
Our Service1.Pre-sale service
According to the product parameters provided by the user, Huituo Technology has professional design engineers to provide customer-centric product customization system to help customers easily realize diversified flexible production, ensuring users can get the most comprehensive service, the most reasonable solution, the most cost-effective product.
2.Sale service
After the signing of the contract, our company immediately convened a special meeting to appoint a special person, responsible for all matters related to the contract, responsible for coordinating the various work in the production process, including processing progress, design and manufacturing drawings and documents, manufacturing, packaging and transportation. , technical consultation, etc., until the acceptance is qualified for delivery to the end user.
3.After-sale service
After the equipment is put into normal operation, we will solve the problems in the use of filling and capping production line and other related problems in time, and eliminate the fault as quickly as possible to ensure the customer's production requirements. We offer a one-year warranty and necessary spare parts to ensure your normal production.
Company ProfileHUITUO is a company with extensive experience in intelligent packaging, dedicated to the design and manufacturing of packaging equipment in the fields of daily chemical, cosmetics, pharmaceuticals, food, etc. We have numerous professional technical development personnels and obtained over 100 innovative patents and more than 800 successful cases. We can provide you with customized filling machine, capping machine and whole line solutions. We take "focus & customer-centric" as the development philosophy of Huituo, and quickly develop into a leader in the daily chemical packaging industry.
FAQQ: Where is your factory?
A: Our factory is located in Changzhou City, Jiangsu Province, China. It's very close to Shanghai(airpline and train both available). We warmly welcome customers all over the world to visit our factory!
Q: What products are suitable for your production lines?
A: We are dedicated to the research and development of packaging equipment in the fields of daily chemical, cosmetics, pharmaceuticals, food, etc. We have a wide range of production lines to choose from based on different lid types, bottle types, filling volumes, materials, production speeds, etc. We also provide customization services to meet your various needs.
Q: How do I know if your machine is suitable for our products?
A: You can send us samples of your products and we will test them on our machine.
Q: What after-sales service can you provide?
A: We have a 1-year warranty of the machines. We provide 7 * 24-hour remote support and lifetime software upgrade. Huituo engineers & technicians are available to send to your countries for services if you agree to pay the expenditure.
Q: What are your cooperative brands?
A: Due to the excellent quality of our products, we have established cooperative relationships with numerous internationally renowned brands, including Unilever, Procter&Gamble, L'Oréal, Roche, etc. We are looking forward to becoming your partner!
