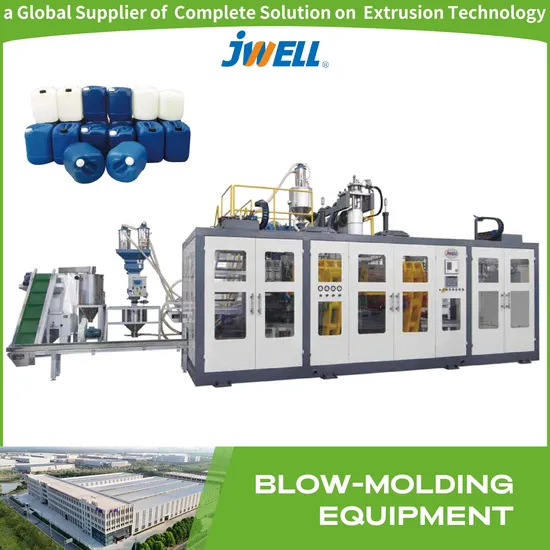

Jwz-Bm30d/50d/100d Double Station Blow Molding Machine for 15-100L Chemical Packaging Containers

Product Description

Product Parameters

Model	Unit	BM30D	BM50D	BM100D
Max product volume	L	30	50	100
Dry cycle	Pc/h	800	600	500
Die head structure	Accumulating type	Accumulating type	Accumulating type	Accumulating type
Main screw diameter	mm	90	100	120
Max plasticizing capacity(PE)	kg/h	180	220	280
Driving motor	KW	55	75	110
Accumulating volume	L	5.2	6.2	12.8
Oil pump motor power	KW	22	30	30
Clamping force	KN	280	400	600
Space between platen	mm	400-900	450-1200	500-1300
Platen size W*H	mm	740*740	880*880	1020*1000
Max.mould size	mm	550*650	700*850	800*1200
Heating power of die head	KW	20	28	30
Machine dimension L*W*H	m	5.2*8.5*3.5	5.6*9.2*3.8	6.0*10.2*4.2
Machine weight	T	16	23	25
Total power	Kw	115	145	195

Detailed Photos

Product Description

Key Features: Wide Application: Produces 15-100L jerrycans, open-top barrels, and chemical packaging containers. Efficient Output: High-output extrusion system for increased productivity. Enhanced Precision: Accumulating die head ensures consistent molding quality. Optional Features: Includes a view strip line system, hydraulic servo control, and double-layer co-extrusion options. Customizable Design: Flexible configurations to meet diverse production needs. Product Features Versatile Capacity Range: Produces 15-100L jerrycans, open-top drums, and chemical packaging containers. Double Station Design: Enhances production efficiency and ensures simultaneous operations for higher output. High-Performance Extrusion System: Delivers consistent material flow for quality and speed. Customizable Options: View strip line system for transparent level indication. Energy-saving hydraulic servo system for precise performance. Double-layer co-extrusion for added material strength and durability. Accumulative Die Head Technology: Provides uniform material distribution, ensuring stable and consistent product quality. Product Description The JWZ-BM30D/50D/100D Double Station Blow Molding Machine is engineered to cater to a diverse range of container production needs, including 15-100L jerrycans, open-top drums, and chemical packaging products. Featuring advanced double-station technology, this machine delivers efficient, high-output performance suitable for industrial packaging demands. With its optional view strip line system, hydraulic servo control, and double-layer co-extrusion capability, it offers versatility and precision for various production scenarios. The integration of an accumulative die head ensures exceptional material distribution, enabling manufacturers to achieve consistent quality and uniform product performance.
Product Application Widely used for industrial and chemical packaging production, including jerrycans and open-top drums. Ideal for hazardous liquid storage, industrial-grade oil packaging, and transportation containers. Suitable for manufacturing paints, lubricants, detergents, and other chemical solutions. Company Profile
