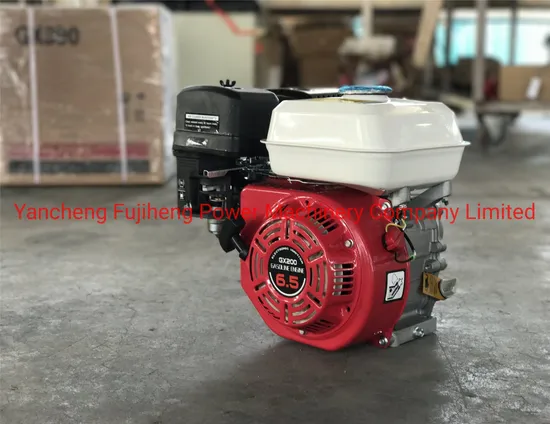

Japanese Original Gasoline Engine Gx160 5.5HP 9HP Gx270 Gx390

Japanese Original Gasoline Engine Gx160 5.5HP 9HP Gx270 Gx390

US$125.00 50 Sets (MOQ)

Basic Info.

Model NO.
GX160
Certificate
EPA, Carb, CE
Intake Pressure Impulse
Naturally Aspirated
Speed
High Speed
Piston Movement
Reciprocating
Ignition Mode
Ignition
Number of Cylinders
Single-Cylinder Machine
Cooling Cylinder
Air-Cooled
Number of Strokes
Four-Stroke
Certification
CCC, CE, RoHS, Carb
Discharge Standard
Euro III
Cylinder
Single Cylinder
Fuel
Gasoline
Stroke
4 Stroke
Power
Electronic
Start
Kick Start
Warranty
12 Months
After-sales Service
Free Spare Parts
Transport Package
Brown Carton or Color Carton
Specification
CE. EPA. CARB
Origin
China
Production Capacity
500PCS/Day

Product Description

1.Engine output:4HP to 15HP
2.Certificate:EPA,CARB,CE
3.Warranty:12 months
4.Package:Brown cartons or color cartons with OEM logo
5.Can not sell to European market and North American market
Model GX160 GX200 GX390
Engine Type Air-cooled 4-stroke OHV Air-cooled 4-stroke OHV Air-cooled 4-stroke OHV
Bore x Stroke 68 X 45 mm 68 X 54 mm 88 X 64 mm
Displacement 163 cm3 196 cm3 389 cm3
Net Power Output* 4.8 HP (3.6 kW) @ 3,600 rpm 5.5 HP (4.1 kW) @ 3,600 rpm 11.7 HP (8.7 kW) @ 3,600 rpm
Net Torque 7.6 lb-ft (10.3 Nm) @ 2,500 rpm 9.1 lb-ft (12.4 Nm) @ 2,500 rpm 19.5 lb-ft (26.4 Nm) @ 2,500 rpm
PTO Shaft Rotation Counterclockwise (from PTO shaft side) Counterclockwise (from PTO shaft side) Counterclockwise (from PTO shaft side)
Compression Ratio 9.0 : 1 8.5:1 8.2:1
Lamp/Charge coil options 25W, 50W / 1A, 3A, 7A 25W, 50W / 1A, 3A, 7A 25W, 50W / 1A, 3A, 10A, 18A
Carburetor Butterfly Butterfly Butterfly Float Type
Ignition System Transistorized magneto Transistorized magneto Digital CDI with variable timing
Starting System Recoil Starter Recoil Starter Recoil/electric
Lubrication System Splash Splash Splash
Governor System Centrifugal Mechanical Mechanical Centrifugal Mass Type
Air cleaner Dual Element Dual element Dual element
Oil Capacity 0.61 US qt. (0.58 L) 0.63 US qt (0.6l) 1.16 US qt (1.1 L)
Fuel Tank Capacity 3.3 U.S. qts (3.1 liters) 3.3 U.S. qts (3.1 liters) 6.4 U.S. qts (6.1 liters)
Fuel Unleaded 86 octane or higher Unleaded 86 octane or higher Unleaded 86 octane or higher
Dry Weight 33 lbs. (15.1 kg) 35 lbs. (16.1 kg) 69 lb (31.5 kg)
