Sanshine Automatic Fish String Rewinding Robot (SS-RW02)

Product Description

Detailed Photos

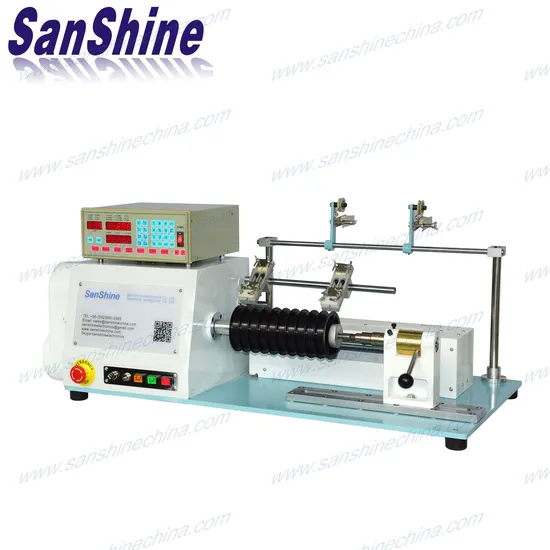

Pictures of Sanshine Automatic fish string rewinding robot (SS-RW02):
Product Description
The Sanshine Automatic fish string rewinding robot (SS-RW02) is one High-Torsion digital coil rewinding machine. It is digital Programmable coil rewinding machine with 1/2HP DC motor. The Maximum wire diameter can reach 3.0mm. It's the best choice for rewinding fish string, rewinding fish wire, rewinding fish thread, rewinding copper wire, rewinding wires, rewinding plastic string, rewinding textile thread, rewinding sewing thread, etc. .This machine can be customized according to coil size by requested.

Feature of Sanshine Automatic fish string rewinding robot (SS-RW02) : 1. Microprocessor design, easy for program-setting.
2. Stepper motor driven by constant-current power supply, high spreading Speed precise winding.
3. "Start Point" could set by key panel or with teachable function. Display Will show the position of spreading head while setting.
4. Wire passing through ceramic rollers prevent enamel from high temperature.
5. Two wire spreading heads with winding nozzle make sure the spreading wire precise and be high efficiency.
6. Foot-switch connection for better efficiency.
7. Winding parameters and options can be set.

Specification of Sanshine Automatic fish string rewinding robot (SS-RW02):

Model	SS-RW02
Spindle Number	1
Wire diameter	0.5~3.0mm
Spread pitch	0~9.999mm
Spread width(traverse)	350mm
Finished coil diameter	Finished coil diameter
Winding motor	500W DC Motor
Spread motor	4-Phase Stepper Motor
Max. speed	1600 / 400rpm
Memory	999 Steps
Power source	AC220V/110V + 10%, 50/60 Hz
Dimension(cm)	70x52x60
Net weight	42kgs

Our Services
Service tenet
Provide you the best service with "fast + satisfactory + safe".
Warranty period
12 months long after the user received the product.
Warranty items
Only for abnormal breakdown caused by the machine design or manufacture defect,
free repair and accessory will be provided.
Technology service ability
All service engineers with many years experience are gotten special technology training, who can deal with various breakdown problem.
Guide the user to use accurately and how to maintain the product.
Provide free consultation about production process technology of electronic products.
Service after sell
In order to guarantee the machine used normally, we'd have training on how to operate, use and maintain our product by English manual, video, guiding on line.
Use instruction
Apply for the right complete size of product, otherwise, the wrong dimensions will affect the use effect.
Do ensure using the product accord to the use instruction completely.Do not exceed the scope of application of the products.
Maintain the product after use,Damp proof, rust proof, leak proof, explosion-proof, regular maintenance and inspection should
be taken care. All done help to extend the use period.
User document management
Establish perfect user document management in EPR system, Every product running details would be followed to manage. The users would be taken good care.
About product
1. Product photo: All product photos are taken by real product, There is the color aberration between the product and photo, which is caused by shoot light, product size, manual technology and computer display etc. It's not quality problem. Parts of products are changed in appearance due to technology revolutionary and process improvement. SanShine would ensure the parameter of product is unchanged, The product couldn't affect to use.
2.Product size: All parameters are all measured by manual just for reference. There is a small deviation due to the difference of measure tools, lot products and produce process. Real size should be accordance with the final delivery product.
3.Quality inspection: All products should be inspected strictly before shipment. Ensure the good function and appearance.
Packaging & Shipping
Package and transport
General package(Paper carton or plastic bag): For small goods, Package it with form and pack paper to guarantee unbroken during the transport.
Wooden case package: For larger scale goods as machine equipment etc, we have special skilled carpenter, who would make the proper wooden case with exact thickness,density,length. The up arrow ↑marked on the outer wooden case. Buffer material would be put in the wooden case to prevent crack and shock. We will inform you the delivery note. You just need to wait for phone call, then pick up the goods at the nearest logistic station .(Please let me know in advance if you want get the goods at home.)
