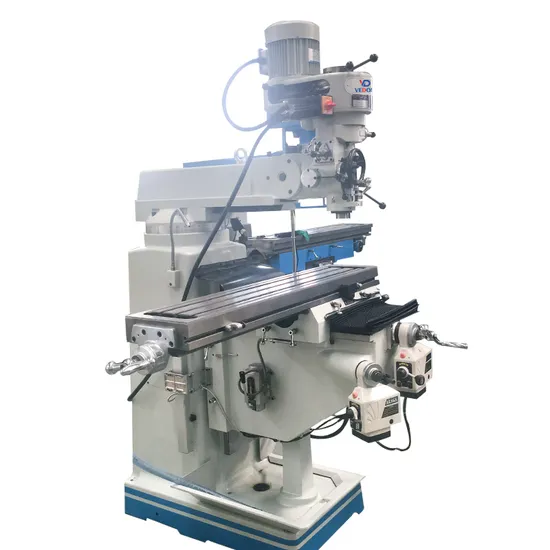

X6325 Taiwan Turret Milling Machine

Product Description

X6325

Product Parameters

Specification	X6325	X6325A	X6325B
Table Size	254x1270mm(10"x50") 254x1370mm(10"x54")
Table longitudinal travel	850mm 950mm
Cross travel	420mm	400mm	400mm
Vertical travel	420mm
T-slot Number/Width	3-16mm
Ram travel	470mm
Distance from spindle nose to table surface	0-405mm
Distance from spindle center to column	140-609mm
Spindle taper	standard: R8,optional: ISO30/ISO40
Spindle travel	127mm
Spindle speed	0.04(0.0015")/0.08(0.003")/0.15(0.006")mm/revolution
Spindle motor power	2.25KW (3HP)
Head swivel	90°
Head tilting	45°
Package size (One set per case)	1516x1550x2080mm
Package size (Two sets per case)	1650x1750x2170mm
Package size (Three sets per case)	1650x2285x2235mm
Machine weight	1550kg	1380kg	1420kg
Note: X axis travel will be shorten about 100mm when assemble power feed box.

Machine Details
Company Profile
Shandong Vedon Intelligent Equipment Co., Ltd.,
We Specialize In The Design And Manufacturing Of High-Precision Cnc Machines For Metalwork Processing. Including 5 Axis Machining Center, Gantry Type Machining Center, Horitonal Type Machining Center, Vertical Machining Center, Cnc Lathe Etc..
With A Strong Focus On Innovation, Quality, And Reliability, Our Advanced Cnc Equipment Enables Precision And Efficiency In Every Application. Whether For Small-Scale Operations Or Large Industrial Projects, We Deliver State-Of-The-Art Solutions Tailored To Meet The Diverse Needs Of The Metalworking Industry. Powered By Cutting-Edge Technology And A Commitment To Excellence, We Are Dedicated To Enhancing Productivity And Driving Success For Our Global Clients.


FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,
Vertical Machining Center ,Lathe Machines and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province, China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
7: What about your warranty?
A: Warranty is five year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
8:How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
