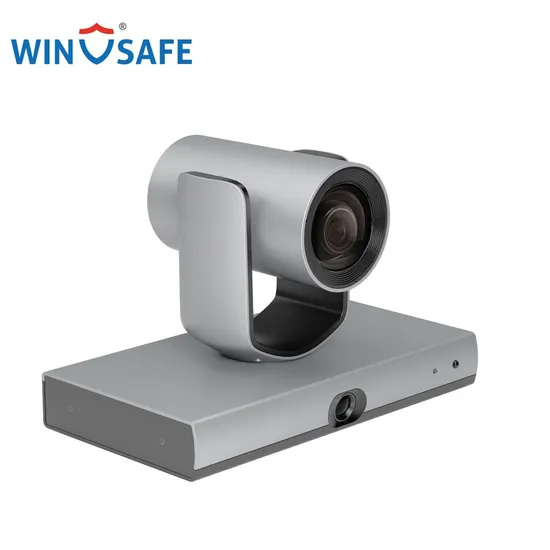

Zone Tracking and Lock-N-Track 4K Video Camera Support Broadcast Resolution 59.94 and 29.97
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
PVC-G512P
Shape
Tracking Cameraa
Material
Plastic
Resolution Ratio
4K
Feature
USB, HD, 3G-SDI
Language Support
English
Usage
Video
Image Sensor
1/2.8" 4K CMOS, 8.46MP
Focal
F = 3.4mm - 40.3mm
Iris
F1.8 - F3.6(Tele)
Zoom
Optical: 12X
Field of View
81° - 7.6°
White Balance
Auto, Indoor, Outdoor, One Push,Manual, Auto Track
Full-View
94
Preset Number
256
Interface
HDMI 3G-SDI IP USB
Transport Package
Neutral
Specification
CE, FCC, Rohs etc.
Trademark
WINSAFE/OEM
Origin
Shenzhen, Guangdong
HS Code
8525801390
Production Capacity
10000PCS/Month
Product Description
- Dual-cam design, simultaneous 4K UHD outputs of tracking cam and full-view cam
- Tracking cam: 12x optical zoom, HFOV up to 81°, max resolution 4KP60
- Full-view cam: 4K lens, HFOV 94°, no distortion
- Built-in advanced AI algorithm based on deep learning, to ensure stable tracking and precise posture recognition
- Board writing recognition based on pose estimation, giving clear view of writing content
- Rich tracking modes such as auto framing, zone tracking, lock-n-track, group tracking etc.
- Simultaneous outputs over HDMI, USB2.0, Ethernet, 3G-SDI, support POE
- Built-in Web UI for easy setting and control
- Support 59.94/29.97 frame rate
| Image Sensor | 1/2.8" 4K CMOS, 8.46MP | ||
| Focal | f = 3.4mm - 40.3mm | ||
| Iris | F1.8 - F3.6(Tele) | ||
| Zoom | 12x optical zoom | ||
| HFOV | 81° - 7.6° | ||
| Focus | Auto, Manual, PTZ Trigger, One Push Trigger | ||
| AGC | Auto/Manual | ||
| White Balance | Auto/Indoor/Outdoor/One Push/Manual/Static | ||
| AE Control | Auto/Manual/Shutter Priority/Iris Priority/Brightness Priority | ||
| Shutter Speed | 1/50 - 1/10,000s | ||
| Full View Camera | |||
| Image Sensor | 1/2.8" 4K CMOS, 8.46MP | ||
| White Balance | Auto | ||
| Exposure | Auto | ||
| Lens | f=2.8mm | ||
| HFOV | 94° | ||
| PTZ | |||
| Pan | -130° - +130°, 0.2° - 80°/s | ||
| Tilt | -30° - +90°, 0.2° - 60°/s | ||
| Preset Number | 256 | ||
| Interface | |||
| HDMI | 1 x HDMI with audio Output switchable between full-view cam and tracking cam: Max. 4KP30 Output only from tracking cam: Max. 4KP60 Support broadcast resolution: Max. 4KP59.94/P29.97 | ||
| 3G-SDI | 1 x 3G-SDI with audio Output swichable between full-view cam and tracking cam: Max. 1080P60 Output only from tracking cam: Max. 1080P60 Support broadcast resolution: Max. 1080P59.94/P29.97 | ||
| Network | 10/100M RJ45 self-adaptive with POE H.264/H.265, support main and sub steam Output switchable between full-view cam and tracking cam: Max.4KP60 Support NDI HX3/Dante/AV-H/ONVIF/RTSP/RTMP/SRT/TCP/UDP/RTMPS/VISCA OVER IP Audio compression: AAC, G.711 Built-in Web UI | ||
| HDBaseT(Optional) | 1 x HDBaseT(Optional) Output swichable between full-view cam and tracking cam: Max.4KP30 Output only from tracking cam: Max. 4KP60 | ||
| USB | USB2.0 Type-B with UAC, UVC1.1 Output switchable between full-view cam and tracking cam: Max. 4KP30 UVC supports H.264/MJPEG | ||
| Audio Interface | 1 x Line IN, 3.5mm | ||
| Control Interface | 1 x RS-232 IN, 1 x RS-232 OUT | ||
| DIP Switch | Rotary DIP switch to define video format | ||
