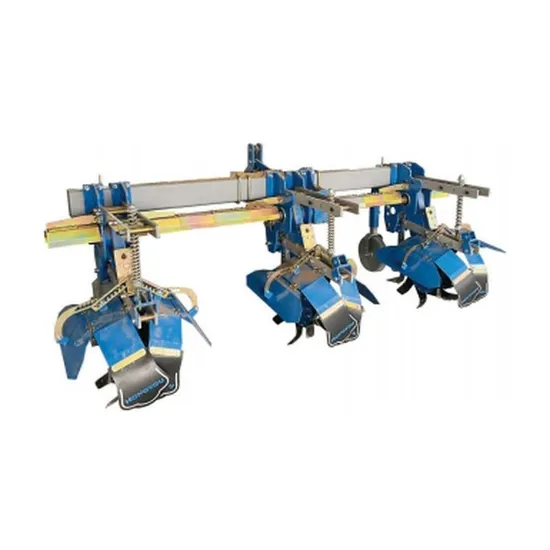

Efficient Sowing 1ks-2 ODM OEM Custom Three Point Suspension Agricultural Soil Tiller

Product Description

Product Description
Soil Tiller
A soil tiller is a mechanical equipment used in agricultural production. It is mainly used to turn, loosen and organize the soil to create good soil conditions for sowing, planting and crop growth. It cuts the soil through rotating blades or plowshares, breaks up soil clods, increases soil aeration and water permeability, and buries weeds and stubble in the soil to promote the recovery and improvement of soil fertility.
The soil tiller has many significant features. First, it is equipped with a variety of cutters, such as rotary tillers, plowshares, etc., which can be selected and replaced according to different soil types and operation requirements. Secondly, the tiller has a variety of power sources. It can be used in conjunction with a tractor or an independent power system, which is flexible and convenient to operate.
The soil tiller is widely used in agricultural production, mainly used for plowing, land preparation, and land leveling operations in farmland. It is suitable for a variety of soil types, whether it is clay, loam, or sandy soil, and can effectively complete the farming task.
Product Parameters

1KS-2 PARAMETER LIST
NO.	PROJECT	DESIGNVALUE	NO.	PROJECT	DESIGN VALUE
1	Structural Style	Three Point Suspension	7	Working efficiency	≥0.2 ha/h
2	Moving style	Wheel type	8	Tractor Power	≥40 HP
3	Working dimensions (length*width*height)	1300*2400*1200mm	9	Matched To The Power Output Shaft Speed	720 r/min
4	Transport dimensions (length*width*height)	1150*2100*1200mm	10	Matching Hanging Width	400/650mm
5	Overall Weight	400kg	11	Number of blades	24
6	Number of rows of soil preparation	2	12
Note:The values in the specification table are theoreticalvalues,please refer to actual values.

1KS-3 PARAMETERLIST
NO.	PROJECT	DESIGNVALUE|	NO.	PROJECT	DESIGN VALUE
1	Structural Style	Three Point Suspension	7	Working efficiency	≥03 hah
2	Moving style	Wheel type	8	Tractor Power	≥70 HP
3	Working dimensions (length*width*height)	1300*3200*1200mm	9	Matched To The Power Output Shaft Speed	720 r/min
4	Transport dimensions (length*width*height)	1150*2850*1200mm	10	Matching Hanging Width	400/650 mm
5	Overall Weight	570kg	11	Number of blades	36
6	Number of rows of soil preparation	3	12
Note:The values in the specification table are theoreticalvalues,please refer to actual values.

Detailed Photos
EFFICIENT OPERATION CAPABILITY
The soil tiller quickly turns and loosens the soil through high-speed rotating blades or plowshares, greatly improving the efficiency of land cultivation. Compared with traditional human or animal farming methods, it can save a lot of time and labor.
IMPROVE SOIL STRUCTURE
During the operation, the tiller can chop the soil, break the soil clods, increase the air permeability and water permeability of the soil, and bury weeds and stubble in the soil to promote the recovery of soil fertility and create a good soil environment for crop growth.
DEPTH ADJUSTMENT FUNCTION
Modern soil tillers are usually equipped with depth adjustment devices, which can flexibly adjust the tillage depth according to different crop planting needs and soil conditions, ensure uniform soil turning, and meet diverse agronomic requirements.
WIDE RANGE OF APPLICATIONS
The soil tiller is suitable for a variety of soil types, whether it is clay, loam, or sandy soil, it can effectively complete the tillage task. At the same time, it can also be used in a variety of agricultural scenes such as farmland, orchards, vegetable gardens, nurseries, etc., with strong versatility.
EASY OPERATION AND VERSATILITY
Soil tillers are usually used in conjunction with tractors, and are easy to operate and maintain. In addition, they can be equipped with a variety of tools and accessories to achieve multiple functions such as rotary tillage, ridging, and furrowing, so that one machine can be used for multiple purposes to meet different agricultural production needs.

FAQ
Q1. What are your terms of payment?
A1:T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q2. What are your terms of delivery?
A2:EXW, FOB, CFR, CIF. Which delivery terms depend on your choice?

Q3. How about your delivery time?
A3: Generally, it will take 30 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Most time we have some in stock.

Q4. Are you interested in a dealership with a local company?
A4: Of course, we are quite interested in this business. We'd like to cooperate with some local partners to sell more HONGYOU machines in the local market and supply better service.


Q5. Do you test all your goods before delivery?
A5: Yes, we have 100% test before delivery and we can email you the test video if you need it.

Q6.Can you customize the machine for me?
A6: Yes, we can customize it according to the customer's requirements.
