Waste PP PE PVC Film Plastic Recycling Washing Machine

Product Description

Waste PP PE PVC Film Plastic Recycling Washing Machine
Application Areas:
Industrial Film Printing Packaging Plastic Film Recycling Crushing Washing Line of Wanrooetech is capable of processing a wide range of hard and soft plastic waste, for example, agricultural films, greenhouse films, package films,PE waste film,PP waste film,PVC waste film,industrial film,printed film and etc.
Description :
PP PE plastic washing recycling machine is widely used to washing recycling the used PP/PE plastic soft plastic. Such like shopping bags, packing films, garbage bags, woven bags, non-woven bags and films. This recycling machine can crushing washing and drying the dirty soft plastic into clean film flakes.
After plastic film/bag flakes cleaned, you can make them into pellets/granules with next process, which called plastic pelletizing machine.
This production line is high automatic operating and low consume, can save labor, save power and save water, easy to maintenance.
With advanced design, concepts and technologies to suit different status of waste plastic bags/films. This PP PE plastic recycling machine could layout as "L", "S" or "U" shape according different workshop.
Features :
To crushing washing recycling the used, dirty waste PP PE films/bags, protect the environment, Avoid white pollution.

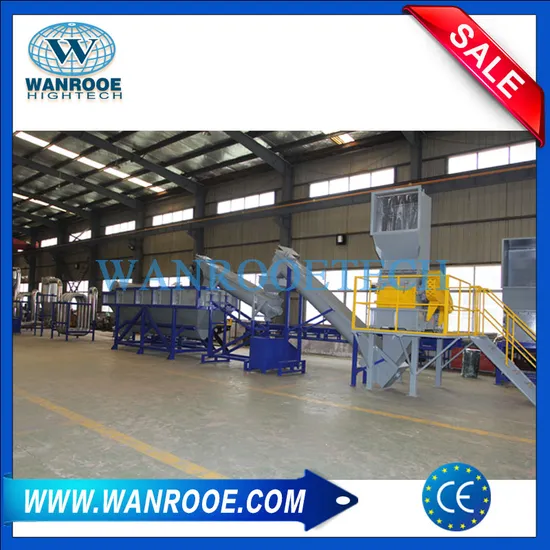

This recycling line is composed of crusher, cold & hot washing system, dewatering, drying, packing system, etc.
This PP PE waste plastic crushing, recycling and washing recycling machine line can easily wash and recycle waste PP PE films/bags. Waste and dirty PP PE films/bags can be processed step by step, by this recycling machine. It is special for washing PP PE films/bags. We can help to attach equipment at the end of the washing recycling line so that the completely dry flakes can be collected and packed directly after been washed.
The whole production line can designed based on how dirty the PP PE films/bags are, and make sure of the quality of the final products.
Coordinating the production line with follow programmed work (granulating system), and it will make waste and dirty PP PE films/bags to be the PP PE granules material and in order to producing new PP PE products.
Advantages:
1. Our price is competitive and we take responsibility to any quality uncertainty.
2. Our pursuit of first-rate quality, reasonable prices and comprehensive after sales services offers both potential and long-standing clientele confidence in our company.
3. High automation level producton line to reduce cost on labor and increase production.
4. Innovative design of hot washer and washing tank.
5. PLC control, Choose motor brand according to customer's requirements.
6. We use 304 stainless steel to produce machines which contacting water.
7. Professional design team to design every project according to cutomer's need
Equipment List and Details
1.Debaler: As PP/PE films often arrive at washing facilities in baled form, films such as LDPE / LLDPE are compacted in large bundles tied together, bales must first be opened before it can enter the washing equipment. This can be done either manually or via the debaler.
2.Plastic crusher: The plastic granulator cuts PP / PE films into small pieces. The size reduction process is essential in our PE film washing line as long pieces of plastic film can easily tangle in conveyor and rotary-based equipment such as those used in the washing line. To prevent this from happening, the plastic granulator cuts the PP / PE film into pieces that are approximately 10-20mm in size. To further improve this process, we've implemented the use of a wet granulator where water is continuously sprayed into the cutting chamber. This not only partially cleans the PE film, the water acts as a lubricant reducing heat and friction buildup.
3.Single-Shaft / Double-Shaft Shredder/ Crusher: Our industrial single-shaft and double-shaft shredders are designed for use in larger capacity PE film washing plants or recyclers processing PE films that have higher levels of contamination.
4.High Friction Washer: Originally designed in Germany and improved upon throughout the years, this high-power washing machine has the unique ability to thoroughly was PP / PE film scrubbing off dirt, debris, and even breaks apart paper and cardboard into fibers. Learn more about our high friction washer.
5.float / Sink Separation Tank: An essential part of the PE film washing line, the separation tank is the major line of defence against contaminants. Using water as a medium, PP / PE film that float are separated from contaminants that sink such as sand, rocks, glass, metals, and other plastics such as PET, PA, PS, etc.
6.Dewatering Machine: The first stage in the drying process, the dewatering machine uses centrifugal foce to remove a large portion of water content from PP/PE film coming directly from the washers.
7.Dewatering Screw Press: A different type of dewatering machine, the screw press uses pressure to squeeze water from the PP/PE film coming directly from the washers. It's up to you to decide which dewatering machine is more suitable for your needs.
8.Thermal Drying System: The PP/PE film is vacuumed out of the dewatering process and dehydrated through a series of stainless steel tubes. Our effection drying system can reduce moisture content to under 3%. This is the final preparation process for the PP/PE film before it is stored or pelletized into plastic granules.
9.Product Silo: A storage tank for the clean, dry pieces of PP or PE film.
Detail:
System Configuration:

No.	Machine Name	Note
1	Bale breaker	Custom
2	Belt Conveyor	PVC Belt
3	Metal detector	Custom
4	Label Remover	Remove the label from the bottles.
5	Manual Sorting Belt	Custom,PVC Belt
6	Belt Conveyor	PVC Belt
7	Crusher	Blade metal:alloy(9CrSi or SKD-II)
8	Screw Loader	Made of Stainless steel
9	Hot Washer	Made of Stainless steel ,can put some soda
10	High-speed Friction Washer	Made of Stainless steel Can be design Two-screw
11	Sink-Float Tank	Single-screw or Two-screw
12	Dewatering Machine	Vertical or Horizontal
13	Drying system	Made of Stainless steel
14	Storage hopper	Normally 1000L
15	Flakes Pneumatic Separating Machine	New style label remover for flakes

Technical Parameters

Model	Material	Install Power	Capacity	Water Consumption	End Products Humidity
PNQF-PET300	PET,PS,PC,ABS	100kw	300kg/h	4-6litres/kg	<=3%
PNQF-PET500	PET,PS,PC,ABS	150kw	500kg/h	3-6litres/kg	<=3%
PNQF-PET800	PET,PS,PC,ABS	200kw	800kg/h	3-5litres/kg	<=3%
PNQF-PET1000	PET,PS,PC,ABS	280kw	1,000kg/h	2-3litres/kg	<=3%
PNQF-PET1500	PET,PS,PC,ABS	350kw	1.5Tons	2-3litres/kg	<=3%
PNQF-PET2000	PET,PS,PC,ABS	400kw	2Tons	2-3litres/kg	<=3%
PNQF-PET3000	PET,PS,PC,ABS	500kw	3Tons	2-3litres/kg	<=3%
