Multifunction 2D 3D 3 Axis 4 Axis CNC Router Price Atc Wood Engraver Cutting Milling Machine
| US$13,800.00-16,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
A4-1530-L8
Condition
New
Certification
CE
CNC or Not
CNC
Voltage
380V
Woorking Area
1500*3000*300mm
Spindle
9kw Hqd
Inverter
11kw Delta
Control System
Syntec 60we
Motor Driver
Syntec 1000W
Reducer
Japan Shimpo
Table
Vacuum Work Table
Guide Rail
25mm
Dust Collector
3kw Double Bag
Transport Package
Wooden Package
Specification
4100*2280*2000mm
Origin
China
Product Description

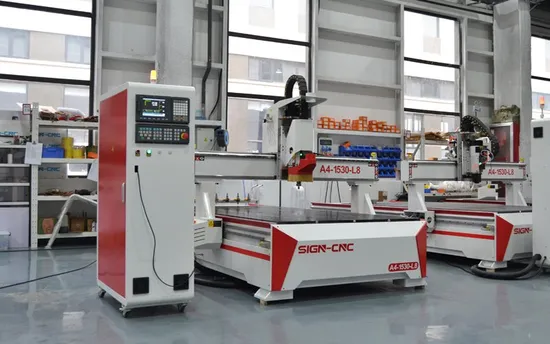

1530 Woodworking CNC Router Machine 3Axis ATC CNC Machine for Furniture Making CuttingDetailed Photos
Product Parameters
| Model | A4-1530-L8 | ||
| Working Area | 1500*3000mm | ||
| Z Axis Height | 300mm | ||
| Spindle Power | 9.0KW HQD ATC Air Cooling Spindle | ||
| Spindle Speed | 0-24000RPM | ||
| Inverter | 11KW Delta high frequency Inverter | ||
| Drive Motors | Syntec 1000W AC servo motor and driver | ||
| Reducer | Japanese Shimpo planetary reducer | ||
| Control System | Syntec 60WE bus control system | ||
| Table | Vacuum working table with 5.5kw vacuum pump | ||
| Tool Magazine | Linear type 8 tools changer magazine | ||
| Dust Collector | 3KW dust collector with double bags, stand, brush, pipe, etc | ||
| Command Language | G code | ||
| Software | Artcam with post processor | ||
| Max. Rapid Travel Rate | 45m/min | ||
| Max. Working Speed | 30m/min | ||
| Operating voltage | AC 380V/50HZ/60HZ | ||
| Operating conditions | Humidity: 30% -75%, temperature: 0 - 45 degree | ||
| Warranty | Two years | ||
