Automatic CNC Bending Cold Profile Roll Forming Machine

Product Description

Product Description

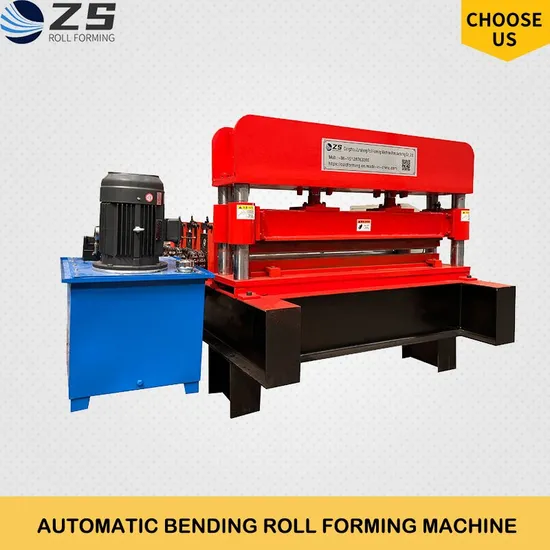

Hydraulic Bending Roll Forming Machine
We can customized bending roll forming machine follow with your design and thickness,it is full automatic feeder and working.
One bending machine is can make different design, we can change mold.
Roll Forming Machine Components:

No.	Name	Qty
1	Bending Roll Forming Machine	1 Set
2	PLC Control Box	1 Set
3	Hydraulic Pump Station	1 Set
4	Production Support Table	1 Set

Detailed Photos
Feeder System:
he latest design of feeder system.Stable working and coil not swing.Easy adjusting.Working width:Within 1250mm Main Roll Forming System:
Driving Type: Chain(common)
Flattening system: shaftShaft: 45# 120mmMotor Power: 5.5kW or according to the design requirements;Main Frame: 350# or 400# H-beam steel welded. Hydraulic Bending Sytem:
Working Model: Hydraulic Cutter (common) or Electric Cutter;Cutter Blade Material: Cr12.PLC Control Sytem:
PLC Brand:Delta
Touch screen:Delta
Easy operating
No.20 orders
PLC Control SystemControl The Quantity And Cutting Length AutomaticallyInput The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,It Can Finish The Production Automatically.

Combined With	PLC, Inverter, Touch Screen, Encoder, etc
PLC	Siemens (German brand) Or Delta(Taiwan brand)
Inverter	Siemens (German brand) Or Delta(Taiwan brand)
7-Inch Color Touch Screen	Siemens (German brand) Or Delta(Taiwan brand)
Encoder	Omron (Japan brand)Switch Bottom, Indicate Light, Power Supply, Intermediate Relay, AC Contactor
Thermal Relay	Siemens (German brand) Or Delta(Taiwan brand)
Air Switch	LG-LS(Korea brand)Cut-to-Length Tolerance≤±1 mmControl Voltage 24V

After-Sale Service:
1. The warranty is 18 months after the client receives the machine.Within The 24months, we will courier the replacement parts to the client free of charge 2.We offer technical support for the entire life of our machines3. We can send our technicians to install and train the workers in the clients' factories with extra cost
Terms Of Trade:

Minimum order quantity (MOQ)	1 Set
Delivery time	about 60 workdays
Port of loading	port of Tianjin
Type of payment	by T/T or by L/C
Export	to more than 80 countries and regions, including South Korea,Taiwan, UK, Ireland, Greece, Australia, USA, Mexico, Brazil, Russia,Saudi Arabia, UAE, Iran , India, Singapore, Malaysia, Thailand, Indonesia, Philippines, Vietnam, South Africa, Nigeria, Egypt, etc

Packing Style:

Packing method

Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.

Our Advantages:
