Stud Type Track Roller Bearings Kr16PP, Kr19PP, Kr22PP, Kr26PP, Kr30PP, Kr32PP, Kr35PP, Kr40PP, Kr47PP, Kr52PP, Kr62PP, Kr72PP, Kr80PP, Kr90PP

Product Description

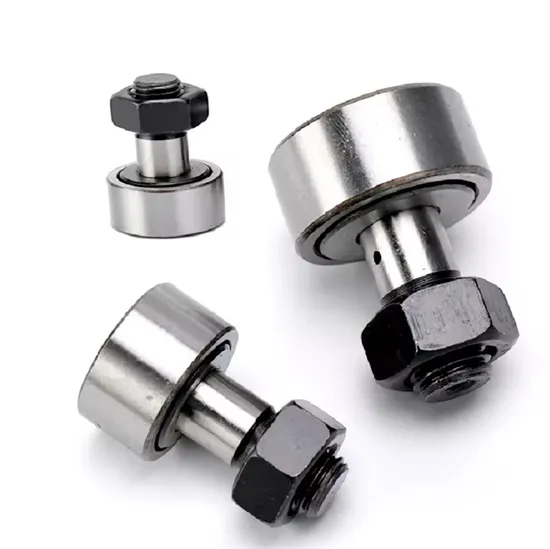

Stud type roller bearing track rollers are ready-to-fit needle or cylindrical roller bearings of single or double row design.
They have particularly thick-walled outer rings with a crowned outside surface (also available with a cylindrical outside surface on request), can support high radial loads and tolerate axial loads which are due to small misalignments, skewed running or temporary contact running impacts.
Instead of an inner ring, stud type roller bearing track rollers are supplied with a heavy-section roller stud with fixing thread and a mounting aid. They are not mounted in a housing bore but supported on a flat raceway (mating track).
In the design with an eccentric collar, stud type roller bearing track rollers can be adjusted to the mating track. As a result, larger manufacturing tolerances can be tolerated, for example, in the adjacent construction.
Stud type roller bearing track rollers are always produced with axial guidance of the outer ring.
They are open or sealed on both sides.

Items	D	d1	B
	mm	mm	mm
KR16-PP	16	6	28
KR16-SK-PP	16	6	28
KR19-PP	19	8	32
KR19-SK-PP	19	8	32
KR22-PP	22	10	36
KR26-PP	26	10	36
KR30-PP	30	12	40
KR32-PP	32	12	40
KR35-PP	35	16	52
KR40-PP	40	18	58
KR47-PP	47	20	66
KR52-PP	52	20	66
KR62-PP	62	24	80
KR72-PP	72	24	80
KR80-PP	80	30	100
KR90-PP	90	30	100

FAQ
Q1: Are you a manufacturer or a trading company?
A: We have been a professional manufacturer of bearings since 1995 with ISO9001:2015 certificate.
Q2: How is the quality level of your bearings?
A: Our bearings are made of supreme GCr15 bearing steel and are produced with the first class workmanship. The tolerance grade could be P0, P6, P5, P4. The vibration level could be Z1V1, Z2V2, Z3V3.
Q3: Can I get samples to see the quality?
A: Yes, samples are free, but the courier charge shall be borne by the buyer.
Q4: Could you offer OEM service and print my logo/mark on the products?
A: Yes, we could. Please send us your mark registration files, we shall print your logo/mark on the bearings and package.
Q5: How is the lead time?
A: For regular items that are in stock, we could make shipment immediately right after your payment. If the goods are not in stock, our production time is from 15 to 45 days according to the quantity.
Q6: What if I receive defective product for my order?
A: All our bearings are 100% inspected strictly before packing. If you receive any defective product, please provide us photos or videos to show the problem. After confirmation, we shall send you the new product as replacement free of charge.
Q7: What is your term of payment?
A: Term of payment is negotiable. Usually it is 30% deposit in advance, and the balance 70% is paid when the goods are ready for shipment.
