Concrete Mixing Truck Mini Self Loading Concrete Mixer Truck

Product Description

Advantages of self dumping mixer:Self-loading concrete mixer is the combination of concrete mixer truck and cement mixer, which can automatically feed, measure, mix and discharge concrete mixture. Equipped with a powerful engine and 4 wheel steering, the self loading concrete mixer is just like a small car and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site. With self loading mixer machine, you will never to worry about transporting raw material.

Name	Item	Specification
	Net	8100 KG
	Transmission	4 WD
	Brake	Air Brake
	Chassis	Off-road

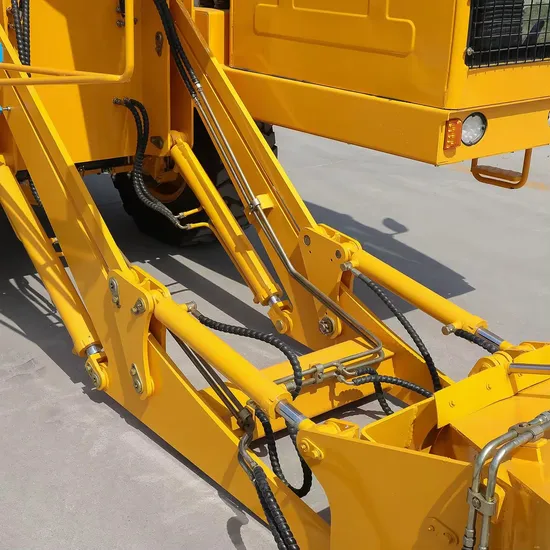

	Loader bucket	capacity		0.7m3
		Control		Hydraulic
	Tilt angle	20%
	Speed	High		0-30KM/H
		Low		0-9KM/H
	Mini turning radius	3.5M/R
Engine	Type	Yuchai	4108
	Rated Power/RPM	85KW/2200RPM
	Max.Torque/RPM	360N.M/1400RPM
	Cylinder	4
	Starter	Electric
	Cooling type	water cooling
Maxing Drum	Output capacity	3.5M3
	Bank Angle	16 °
Chute	Swing Angle	≥50°
Loader control	Hydraulic 4 way stick
Tyre model	16/70-20 construction tyre
Electronic parts	Waterproof circuit
Drum Rotation	270 degree to provided 4 ways discharge concrete
Water tank capacity	297L
Hydraulic oil tank capacity	150L
Diesel oil tank capacity	190L
Overall size	7941x2360x2500mm
Wheelbase	3000mm
Tread	1700mm
Axle Capacity	15tons
Water Pump	By two separated water pump for faster add water
Tank geometric volume	5.8 cbm

Main Features:1. The self mixing concrete truck can automatic feeding, measuring, mixing and discharging concrete.
2. The self loading mixer for sale has easy operation, high working efficiency, high mixing effect.
3. It has independent water supply system, which can ensure the high quality of concrete.
4. It just need one operator to drive, load, and mix raw material while moving it.
