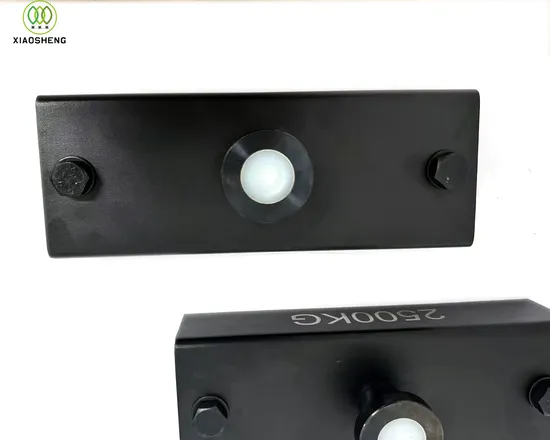

2500kg Construction Rare Earth Permanent Concrete Formwork Shuttering Magnet for Precast

Product Description

Product Description
The core of the precast concrete magnet is assembled from strong neodymium magnets and premium blackened carbon steel housing with a thickness of over 3mm, which can generate a very strong attraction force. Its pulling force ranges from 450KG to 3000KG. The top of the box has a durable on/off steel button that works like this: press the button to connect, pry the button up to release. Prefabricated concrete magnets, also known as template magnets, are designed and invented for fixing templates on steel and wood template platforms, and have been invented by the construction industry and put into use in large quantities. We focuses on providing detailed and comprehensive solutions for precast concrete components, and its main products include magnetic box fixed by side form, magnetic system, magnetic base fixed by various embedded parts and magnetic chamfer, etc. Our magnetic box has round lines, is highly compatible with various components, hardly causes abrasion and scratch to the platform panel, avoids platform damage, and also reduces the maintenance cost for you. In addition, the magnetic box has a great magnetic force, and although it is small in size, it has excellent working efficiency, which can effectively save manpower. It can be reused for many years on the premise of correct use, so it is widely used in construction and concrete industry.
We will continue to act in the interest of our customers and continue to introduce new Concrete Magnets that meet the needs of the market and ensure leadership in the industry. We are in line with the working attitude of keeping improving, provide good after-sales service for users, and wholeheartedly meet the needs of users. Our company adheres to the corporate philosophy of 'paying attention to details and doing better', is open to customer suggestions for improvement, and constantly carries out technological innovations, and strives to meet the different needs of the market for products. We constantly improve our management and technology level, and continue to carry forward the enterprise spirit of advancing with the times and never being satisfied.

Product Parameters

Name	2500KG Construction Rare Earth Permanent Concrete Formwork Shuttering Magnet for Precast
Material	Neodymium magnets, carton steels
Item No.	XS-2500
Size	320x120x60(mm)
Shape	Rectangular
Grade	N35
Coating	Backening
Magnetizing direction	Thickness
Min. Holding Force	2500KG
Tolerance	±0.10mm
Max. working temperature	80ºC
Salt spray test	Over 48 hours
Production time	15-35 days
Min. order	US$1,000.00 if no stock
Terms	TT, LC per discussion
Certificate	ISO9001:2015, RoHS, REACH, MSDS,SGS
Other models	450KG,600KG,900KG,1000KG,1300KG,1350KG,1600KG,1800KG,2000KG,2100KG,2500KG,3100KG
Brand	XIAOSHENG

Item No.	Capacity	Product Size LXWXH(MM)	Stud(mm)	1PCS product weight(KG)	Carton Size LXWXH(CM)	QTY(PCS)/CTN	G.W./CTN(KG)
XS- 450	450KG	170*60*43	M12	1.8KG	35X25X15	5	9.0KG
XS-600	600KG	170*60*43	M12	1.8KG	35X25X15	5	9.7KG
XS-900	900KG	280*60*43	M12	3.0KG	35X25X15	3	8.4KG
XS-1300	1300KG	320*90*60	M16	5.8KG	35X25X15	2	12.0KG
XS-1600	1600KG	290*120*60	M16	6.0KG	35X25X15	2	13.5KG
XS-1800	1800KG	320*120*60	M16	7.2KG	35X25X15	2	14.8KG
XS-2100	2100KG	320*120*60	M16	7.6KG	35X25X15	2	15.6KG
XS-2500	2500KG	320*120*60	M16	7.8KG	35X25X15	2	20.0KG
XS-3100	3100KG	320*160*60	M16	10.0KG	35X25X15	2	21.0KG
XS-3500	3500KG	320*160*60	M16	11.0KG	35X25X15	2	22.0KG

Applications
Advantages:
-Magnetic adsorption will not damage the template table;
-Easy to install and precise positioning;
- Reusable for more than 3 years. Longer service life if properly maintained;
- Improve the working environment and ensure site safety.
The function of the precast formwork magnets is to fix the formwork on the pouring layer.Due to the inclusion of special materials,precast shuttering magnets have higher pull-off strength than other magnet materials.The magnetic force of the magnet is shielded using a metal box with a switch for the control of the magnetic force.It has the advantages of easy installation and operation, and can keep permanent magnetism on the premise that the magnet is not damaged.During maintenance, it should be noted that the operator needs to use a dry brush to clean the inside and outside of the magnetic core instead of liquid and water because it will cause rust. Precast shuttering magnets are widely used in the construction industry due to their many benefits for concrete production.
Packing:Carton/pallet/plywood case
Delivery:
1. We generally accept payment by wire transfer or letter of credit;
2. We use sea or air transportation;
3. Orders are generated within 15-35 days, it may be faster if in stock.
Production Workshop
Quality Control
Certifications
Customer Visit/Visit Customer
FAQ
1) Are you manufacturer or trader for shuttering magnet?
We are an experienced manufacturer.

2) How to maintain it?
Just use dry brush clean the inside magnet core and outside, don't use liquid or water when you clear it as it will rust it.

3) What is the normal usage life?
Usually at least 3 years' usage life without problem, but maybe longer or shorter as it depends on how you protect it.

4) Can I do customized shuttering magnet?
Yes, your item number or logo can be engraved in the metal housing by laser printing. Other colors also are acceptable only if you have bigger quantity.
