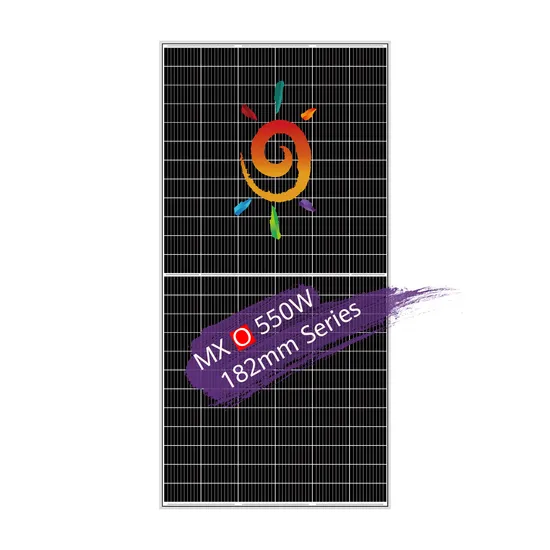

Tier 1 Mono 550W 600W 700W 800W 1000W Solar Panels Factory for Solar System Home
Basic Info.
Model NO.
RSM550M-144HC
Number of Cells
144cells
Application
Solar Energy System Projects
Condition
New
Certification
EST, ISO, CB, CE, TUV, VDE, IEC61215, IEC617, Pid, Cec, Jet
Material
Monocrystalline Silicon
Product Name
580W Solar Panels
Cells
210/182/166/158.75mm
Junction Box
IP68 Rated, 3 Diodes
Tpt Back Sheet
Black/White Backsheet
Cable
4mm2 Symmetrical Lengths
Frame
Silver/Black Anodized Aluminium Alloy
Glass
3.2mm High Transmission Tempered Glass
System Voltage
1000V/1500VDC
Connector
Compatible Mc-4/Male/Female/Fuse
Transport Package
Rosen Design Standard Carton on Pallets
Specification
2279*1134*35mm opt
Trademark
Rosenpv or OEM
Origin
China
HS Code
8541430000
Production Capacity
500000watts/Day
Packaging & Delivery
Package Size
90.00cm * 65.00cm * 45.00cm
Package Gross Weight
105.000kg
Product Description
Product DescriptionTechnical Specification Data(STC) of Solar Panel
| Model | RSM540-144HC | RSM550-144HC | RSM560-144HC | RSM570-144HC | RSM580-144HC |
| Rated Maximum Power at STC | 540W | 550W | 560W | 570W | 580W |
| Maximum Power Voltage(Vmp/V) | 41.64 | 41.96 | 42.28 | 42.59 | 42.89 |
| Maximum Power Current(Imp/A) | 12.97 | 13.11 | 13.25 | 13.39 | 13.53 |
| Open Circuit Voltage(Voc/V) | 49.60 | 49.90 | 50.20 | 50.50 | 50.80 |
| Short Circuit Current(Isc/A) | 13.86 | 14.00 | 14.14 | 14.28 | 14.42 |
| Module Efficiency(%) | 20.9 | 21.3 | 21.7 | 22.1 | 22.4 |
| Standard Test Condition(STC) | Irradiance 1000w/m², Cell Temperature 25ºC, Air Mass AM1.5 | ||||
| ELECTRICAL DATA(NOCT) | |||||
| Maximum Power-PMAX (Wp) | 408W | 416W | 424W | 432W | 440W |
| Maximum Power Voltage(Vmp/V) | 38.99 | 39.44 | 39.90 | 40.34 | 40.78 |
| Maximum Power Current(Imp/A) | 10.47 | 10.55 | 10.63 | 10.72 | 10.80 |
| Open Circuit Voltage(Voc/V) | 46.43 | 46.68 | 46.93 | 47.19 | 47.45 |
| Short Circuit Current(Isc/A) | 11.09 | 11.17 | 11.25 | 11.33 | 11.41 |
| NOCT: Irradiance at 800W/m², Ambient Temperature 20°C, Wind Speed 1m/s. | |||||
Detailed Images of Solar Panel
EVA Solar Cell Frame High Transmittance EVA,High GEL Content To 5BB, 6BB, 9BB, 10BB, 12BB Available 35mm 40mm Anodized Aluminium
Provide Good Encapsulation And Protect Cells 158.75cells, 166cells, 182cells,210cells Alloy
From Vibration With Longer Durability. High Efficiency Cells Anti-Pid Black/Silver Color Optional Junction--Box Compatible MC4 Label IP 68 rated Waterproof MC4 Compatible /MC4 EVO2/TS4* Waterproof Customized Label
Innovative Full-Glue-Filled 500N Tensile Strength OEM/ODM with your Logo Portrait/Landscape Length Optional Female/Male/Fuse Professional Silver Color
Packing & Delivery
Packing Details : In carton on pallet or wooden box, OEM with your logo available
Delivery Details : 5-10 working days
Factory & Stock
Projects
Rosen projects are installed around the world for home, commercial and industrial use. Home Lithium battery hybrid solar systems are more installed
for roof mounting with solar panel power range 3kw, 5kw, 8kw, 10kw, 15kw, 20kw, 30kw etc, lithium batteries with power wall and rack mount types.
Commercial projects are more On Grid systems like 50kw, 100kw, 150kw, 200kw, 300kw Grid tied for cement or soil ground mounting. Industrial
projects for tender EPC like 1MW, 2.5MW, 3MW, 5MW, 10MW etc. Usually we have solar panels PERC, bifacial and black types in stock.
