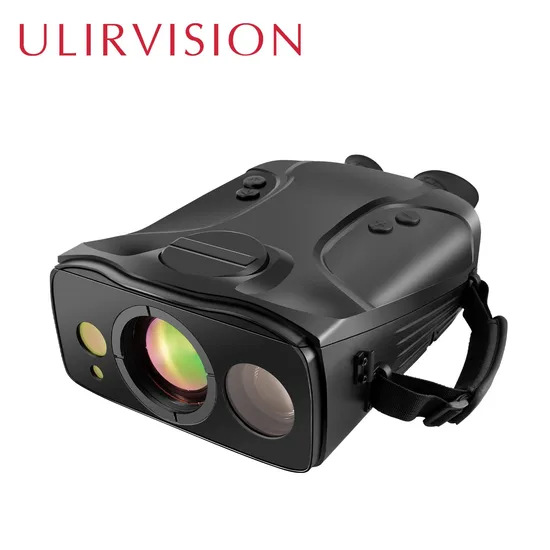

High Quality High Resolution Thermal Infrared Binocular Night Vision Telescope Wolf320|Wolf640
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
Wolf320|Wolf640
Type
Infrared Telescope
Magnification
10X
Function
Waterproof, Fogproof, Night Vision, Waterproof, Fogproof, Night Vision
Usage
Bird Watching/Hunting
Structure
Catadioptric Telescope
Lens Type
Zoom Lens
Lens
Glass, Acrylic
Item
Wolf320wolf640
Focal Length
40mm~240mm Continuous Zoom
Focusing
Electric Focus/Auto Focus
Resolution
1440*1080
Specification
320mm× 232mm× 115mm
Trademark
ULIRVISION
Origin
China
Production Capacity
5000 Pieces/Years
Product Description
Product DescriptionWolf320|Wolf640 are composed of cooled infrared thermal imaging components, high-definition visible light, GPS, electronic compass and eye-safe laser ranging module. Equipped with 6X infrared continuous zoom lens and 10X visible light continuous zoom lens, the imaging quality is excellent; the design is compact and lightweight, and the HMI is friendly. The telescope can easily measure and locate the target, greatly improve the effectiveness of 24h reconnaissance and provide rich reconnaissance information.
| Item | Wolf320 | Wolf640 |
| Thermal imaging performance | ||
| Type | MCT Cooled | |
| Resolution | 320×256 | 640×512 |
| Pixel pitch | 30um | 15um |
| Spectral range | 3~5μm | |
| NETD/Sensitivity | ≤20mK | ≤25mK |
| Focal length | 40mm~240mm continuous zoom | |
| FOV | 13.7° × 10.8°~2.3°× 1.8° (±5%) | |
| Focusing | Electric focus/auto focus | |
| Visible light performance | ||
| Resolution | 1440×1080 | |
| Focal length | 18mm~180mm continuous zoom | |
| FOV | 17.1°x12.8°~1.7°x1.3° | |
| Minimum illumination | 0.001Lux | |
| Positioning function | ||
| GPS | Accuracy (RMS): Lng&Lat: 5m, elevation: 10m | |
| Electronic compass | Accuracy, pan: ±0.6°, tilt: ±0.3° | |
| Laser Ranging finder | Wavelength 1550nm (eye safety) | |
| Range 20m~5Km | Range 50m~10Km | |
| 3Km (2.3mx2.3m vehicle) | 6Km (2.3mx2.3m vehicle) | |
| Accuracy, ±2m | ||
| Target Location | ≤30m(8Km) | |
| Image function | ||
| Display | Binocular OLED, 1280×1024, adjustable diopter | |
| Image enhancement | DDE, image filtering | |
| Polarity/LUT mode | Black hot/White hot | |
| Contrast/Brightness | Auto/Manual adjustable | |
| Electronic Zoom | 1×, 2×, 4× | |
| Storage | Built-in 32GB storage | |
| WIFI | Built-in WIFI, video transmission and control | |
| Interface | ||
| Power interface | Yes | |
| Video output | PAL | |
| Communication Interface | RS232 | |
| Data interface | USB2.0 | |
| Power System | ||
| Battery type | Rechargeable lithium battery | |
| Operating time | >5h continuous (normal temperature) | |
| External power | DC:12V~30V | |
| Environment Parameters | ||
| Operating temperature range | -40ºC~+60ºC | |
| Storage temperature range | -45ºC~+70ºC | |
| Encapsulation | IP67 | |
| Physical data | ||
| Size (without eye mask) | 320mm×232mm×115mm | 299mm×219mm×112mm |
| Weight (with battery) | ≤4.0Kg | ≤3.6Kg |
| Operating distance | ||
| Detect human(1.7m×0.5m) | 4Km | 8Km |
| Recognize human(1.7m×0.5m) | 1.3Km | 2.5Km |
| Detect vehicle(2.3m×2.3m) | 9Km | 13Km |
| Recognize vehicle(2.3m×2.3m) | 3Km | 5Km |
| Standard | ||
| Standard | Infrared thermal imaging telescope, 8 batteries, charger, control line, warranty card, user manual, certificate, transportation box | |
