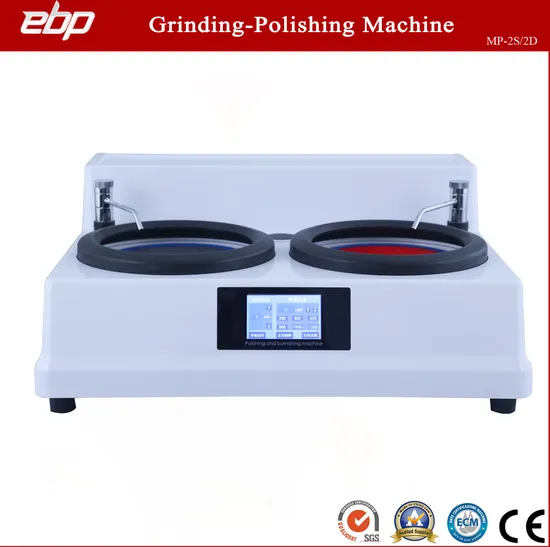

Manual Operation Metal Sample Grinder Polisher Machine with Touch Screen

Product Description

Product Description
Manual Operation Metal Sample Grinder Polisher Machine with Touch Screen
In the process of metallographic sample preparation, the grinding and polishing of the sample is an indispensable process. After the sample is ground and polished, a bright mirror-like surface can be obtained. The MP-2S and MP-2D metallographic sample grinding and polishing machine adopts a vector frequency converter to adjust the speed, which can make the speed of the grinding and polishing disc infinitely adjustable between 50-1000r/min. The grinding and polishing of the sample can be completed by replacing the metallographic sandpaper and polishing fabric. It is especially suitable for metallographic laboratories in factories, colleges and research institutes, and is an excellent equipment for grinding polishing metallographic samples.
Features:
One machine can do the rough grinding, fine grinding, rough polishing and fine polishing of metallographic specimens. MP-2D: Double independently working plates φ230mm, double times improved working efficiency. The shell is made of high-end ABS, which is novel and beautiful in appearance. The faucet adopts copper material, which has good corrosion resistance Stepless speed design, low noise, stable working performance. Can meet meet a variety of needs. Support clockwise and anti-clockwise rotation direction work. With water cooling system to prevent damage to the metallographic structure due to overheating of the sample. And can get more better metallographic surface easily. Product Parameters
Technical Specifications:

Model	MP-2S	MP-2D
Disc number	Double disc with one motor	Double disc with two motor
Control mode	Single control (two disc single controller)	Independent control (two disc two controller)
Grinding polishing plate Diameter	Double disc Φ230mm
Rotate Speed	50-1000r/min (stepless adjustable) and 6 constant speed; 6 constant speed: 200/400/600/800/1000/1200r/min
Input power	1.2KW
Machine Size (L*W*H) & N/W	720*760*370mm; 50kg
Power Supply	Single phase, 220V 50Hz

Standard Accessory:

Name	Quantity
Grinding plate Φ230 (on machine)	2pcs
Water retaining ring (on machine)	2pcs
Pressing ring φ230 (on machine)	2pcs
Abrasive paper φ230	6pcs
Polishing cloth φ230	1pc
Water inlet pipe	1pc
Water outlet pipe	1pc
Manual	1 pc
Certificate	1 pc

Main Products


Company Profile
About us:
EBP Instruments is a leading factory in China, professional produce and supply all kinds of hardness tester, sample preparation machine, metallographic microscope, and NDT, etc.
