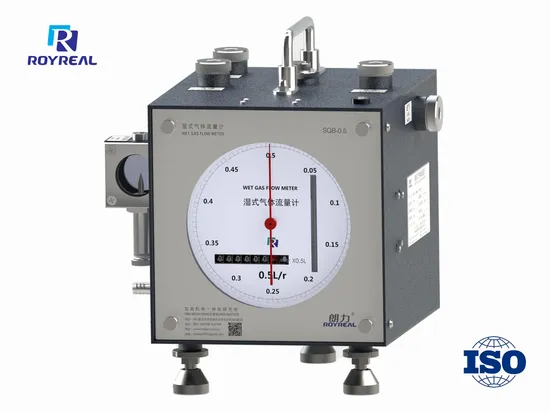

Wet Gas Meter 1L/H~300L/H

Product Description

Product Description Wet Gas Flow Meter is a Volumetric Gas Flowmeter, test range is from The Minimum 0.016L/min To The Maximum 200L/min, high-accuracy, no leaking and good stability, available for Laboratory, Research Organization, Environment Measurement, Working Site and other gas volume or gas flow measurement, and it also can be used for transfer standard and work standard, widely used in energy sources, chemical engineering, metallurgical, manufacturing industry and so on.
Product Parameters

Tech Index
Material	SQB-0.5
Drum Volume	0.5L/rev.
Accuracy	±0.2%
Flow Range	0.016 L/min~5 L/min(1 L/h~300 L/h)
Environment Temperature	(20±2)ºC
Relative Humidity	45%~70%
Pressure Loss	≤120pa
Type	Mechanical type
Packing box	Carton box
Packing Size	500mm*500mm*500mm

Our Advantages 1. Extended Uncertainty is superior less than 0.2%.
2. A new Three-Dimension Design Metering Drum Wheel, precision plasma processing, assurance of stable and reliable metering performance.
3. Optional is equipped with high-precision Temperature Sensor and Pressure Sensor, high-resolution Pulse Signal Generator in order to metering more accurately.
4. Adopt Needle Reflection-Type Fluid Level Indicator, control fluid level easily.
5. The material is 304 Stainless Steel or 316L Stainless Steel, good corrosion resistance, solid and durable.
6. Internet Of Things Function, can communicate in real time with computer via the total line.
7. Each must be calibrated strictly by 0.05 Level HQD Type Active Piston Gas Flow Calibration Device before coming out, assurance of the measurement accuracy. Product Types Choosing

Model No	Drum Capacity	Entire Flow Range	Standard Flow Range	Pressure Loss
SQB-0.5	0.5L	(1~300)L/h,(0.016~5)L/min	(8~270) L/h,(0.133~4.5)L/min	≤120pa
SQB-1	1L	(2~600)L/h,(0.033~10)L/min	(10~540) L/h,(0.166~9)L/min	≤120pa
SQB-2	2L	(4~1200)L/h,(0.066~20)L/min	(16~1080) L/h,(0.266~18)L/min	≤120pa
SQB-2.5	2.5L	(5~1500)L/h,(0.083~25)L/min	(20~1350) L/h,(0.333~22.5)L/min	≤120pa
SQB-5	5L	(10~3000)L/h,(0.166~50)L/min	(30~2700 )L/h,(0.5~45)L/min	≤120pa
SQB-10	10L	(20~6000)L/h,(0.333~100)L/min	(40~5400) L/h,(0.666~90)L/min	≤120pa
SQB-20	20L	(50~10000)L/h,(0.833~166)L/min	(60~9000) L/h,(1~150)L/min	≤120pa
SQB-25	25L	(100~12000)L/h,(1.66~200)L/min	(60~9000) L/h,(1~150)L/min	≤120pa
Wet gas flow meter accessories(Optional)
Photoelectric Encoder		Gas Pressure Transmitter	Gas Temperature Transmitter
Liquid Temperature Sensor		Intelligent Flow Integrator (Touch screen)	Data Communication Module
Intelligent Measurement and Setup Software

Detailed Photos
Packaging & Shipping
Company Profile
Established in early 1990, YiBin Mechatronics Research Institute is a national high-tech enterprise that is concerned with the design and development of opto mechatronics products and intelligent instruments and meters. At present, Full Automatic Gas Meter Verification Facility, Gas Flow Calibration Facility and Flow Measuring And Controlling Instrument are our leading products.
Our professional and technical personnel accounted for more than 60% of the total employees, a number of products developed by our company won the National Invention Patents. We also conduct an industry-university-research cooperation with Sichuan University, China Institute of testing and technology and other key universities and state authority testing institutions. Users are as follows: Government Testing Organizations such as Chengdu Metrology Institute, Inner Mongolia Metrology Institute, Hebei Metrology Institute and so on, Energy Enterprises such as CNPC, Gas Companies and other manufacturing enterprises.
We have a sound quality certification system, each link strictly complies with the standards from the design, procurement, production and factory testing to site installation and debugging, in order to ensure the Quality and Accuracy of the products.
