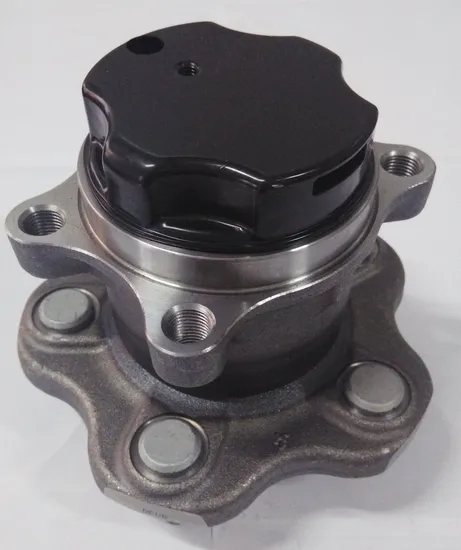

432023lm0a/19316566 for Nissan Nv200 / Evalia Bus E-Nv Rear Wheel Hub Bearing Auto Parts 530773

Product Description

The first generation of hub bearings	Mainly double row angular contact ball bearings and tapered roller bearings, the installation process is simplified by pre-set preload and built-in sealing rings
second generation hub bearing	On the basis of the first generation, the assembly parts are reduced, and the design of fixing nuts and flanges makes the installation more convenient
third generation hub bearing unit	integrates the ABS sensor, and the inner and outer flanges are fixed to the rim and the steering knuckle respectively for higher precision integration and connection.

Product Name	Wheel Hub Units
Brand Name	OEM/WELTRUN
Seals Type	OPEN
Material	Chrome Steel ,Stainless steel,Ceramic,Nylon
Clearance	C0,C2,C3,C4,C5
Precision Grade	P6,P5,P4,P2(ABEC3, ABEC5, ABEC7, ABEC9)
Greese	SRL ,PS2, Alvania R12 ,etc
Number of Row	Double Row
Certifications	ISO 9001
Package	Box,Carton,Wooden Box,Plastic Tube or Per buyers requirement .
MOQ	1PCS
Serice	OEM
Sample	Available
Payment Term	TT or Western Union
Port	Guangzhou/Qingdao/Shanghai/Ningbo

Product Description

1. Hardness: Metal materials have the ability to resist the sagging surface of hard objects. Industry technical requirements standard: 60HRC-65HRC
2. Under the condition of roundness accuracy, the rolling ball sequence and clearance sequence are not easily worn, which can improve the service life
Roundness:<2.5um
3. Use world-renowned brand lubricating grease with good lubrication performance to improve product performance. Brands: SHELL, KOYO, MOBIL
4. Learn from world-renowned hardening treatment experiences such as BCA and TIMKENM to meet OE quality standards
5. The precision riveting surface adopts solid riveting, introduces advanced riveting machines, and adopts strict riveting standards; Strictly control the riveting progress to prevent cracks and improve safety.
The wheel hub unit is the connection point between the wheel and the vehicle transmission system. It transmits the power generated by the engine or electric motor to the wheels, enabling the vehicle to move. plant environment
Multi-vehicle series

Wheel Bearing	Dimensions(mm)				Mass	Hub Assembly	Clutch Bearing	Truck Bearng	Taper roller bearing	Wheel bearing kit	Wheel Bearing
	d	D	B	C
DAC25520037	25	52	37	37	0.31	54KWH01	VKC2601	564734.H195	HM218248/10	VKBA 1333	510082
DAC25520042	25	52	42	42	0.36	51KWH01	VKC2091	566193.H195	32218	VKBA 3455	510086
DAC27530043	27	53	43	43	0.34	52710-25001	VKC3500	566425.H195	EK50045		510058
DAC27600050	27	60	50	50	0.56	52710-2D111	VKC3501	566426.H195	EK50046	VKBA 3661	510092
DAC28580044	28	58	44	44	0.48	51750-2D003	VKC3502	566427.H195	NP672572	VKBA 1358	510093
DAC29530037	29	53	37	37	0.35	42200-SAA-G02	VKC3505	569868.H195	39581/39520	VKBA 3614	510095
DAC30550032	30	55	32	32	0.28	28BWK15	VKC3507	571762.H195	NP318274	VKBA 3676	510100
DAC34660037	34	66	37	37	0.5	MB242820	VKC3514	201059	30206	VKBA 3680	510037
DAC35650035	35	65	35	35	0.4	2DACF4-100/495	VKC3515	800792	30207	VKBA 3613	510038
DAC35650037	35	65	37	37	0.51	27BWK03 ABS	VKC3519	803194A	30209	VKBA 3639	516004
DAC37720033	37	72	33	33		43200-30R07	VKC3523	VKBA3552	30210	VKBA 3648	516005
DAC37720037	37	72	37	37	0.59	3DACF026F1AS	VKC3527	VKBA5314	30212	VKBA 3596	516012
DAC38700037	38	70	37	37	0.56	3DACF026F-2A	VKC3530	VKBA5397	30313	VKBA 6831	510072
DAC38720036/33	38	72	36	33	0.56	53KWH01	VKC3538	VKBA5412	32007X	VKBA 1460	512405
DAC38720036	38	72	36	36		1DACF6-98/44	VKC3541	VKBA5415	32212	VKBA 3617	512416
DAC38720040	38	72	40	40	0.63	2DACF5-95/702	VKC3548	VKBA5416	32219	VKBA 3556	512469
DAC38740036	38	74	36	36	0.62	801344D	VKC3552	VKBA5423	32309	VKBA 6556	512494
DAC39720037	39	72	37	37	0.6	2DACF5-100/425	VKC3553	VKBA5424	32310	VKBA 3907	512510
DAC39740036	39	74	36	36	0.54	D6512615XE	VKC3555	VKBA5552	33209	VKBA 6520	512554
DAC39740036/34	39	74	36	34	0.52	3DACF10-85/52	VKC3556	BTF0056EB	33213	VKBA 3656	512568
DAC40720036/33	40	72	36	33	0.67	42410-87101	VKC3558	80503A.H195	33213	VKBA 3981	513335
DAC40720036	40	72	36	36		42200-SM4-018	VKC3559	F-805567	33118	VKBA 3532	513338
DAC40740036	40	74	36	36	0.62	3DACF026F-1AC	3151027031	805092C	32310	VKBA 3658	513365
DAC408402538	40	84.02	53.8	53.8	0.97	43560-26010	F - 358286	805011C	33215	VKBA 3554	513366
DAC42720038	42	72	38	38	0.54	89411-B2050	360809B	805479	33116	VKBA 3786	513389
DU42750060	42	75	60	60		2DACF6-1143/59	F - 358547	805008	3977X/3921XA	VKBA 3605	27BWD01J
DAC42760033	42	76	33	33	0.65	3DACF10-84/78-I	CR 1315	805531	LM78349A/10C	VKBA 3576	28BWD03A
DAC42760038/35	42	76	38	35	0.65	BR930872	500000820	805012	32206B	VKBA 3643	28BWD01A
DAC42760040	42	76	40	40	0.68	42410-12130	3151133031	BTH0018A	L44649/10	VKBA3608	30BWD01A
DAC43790045	43	79	45	45	0.84	2DACF4-100/565	3151044031	BTH0022	L45449/L45410	VKBA1437	32BWD05
DAC45820045	45	82	45	45		LA01-33-04XB	3151899001	BTH0053	34274/34492A	VKBA 007	34BWD11
DAC49900045	49	90	45	45	1.08	42410-87701	3151807001	BTH0055	594A/592A	VKBA3404	34BWD07B
DAC50890051	50	89	51	51		55BWKH01V	500023560	81 93420 0346	32218	VKBA1441	34BWD09A
DAC52960050	52	96	50	50		43202-72B00	PRB-42	VKBA528	JH307749/10	VKBA 959	35BWD19E
DAC54960051	54	96	51	51		89544-06070(R)	3151875001	SET420	42686/42624	VKBA 733	35BWD07
DU55900054	55	90	54	54		2DACF5-100/56	500053960	VKBA 673	575S/572	VKBA 505	35BWD07A
DAC55900060	55	90	60	60		2DACF6-100/45	F-218286.2	VKBA523	482A/472	VKBA 5038	35BWD16
