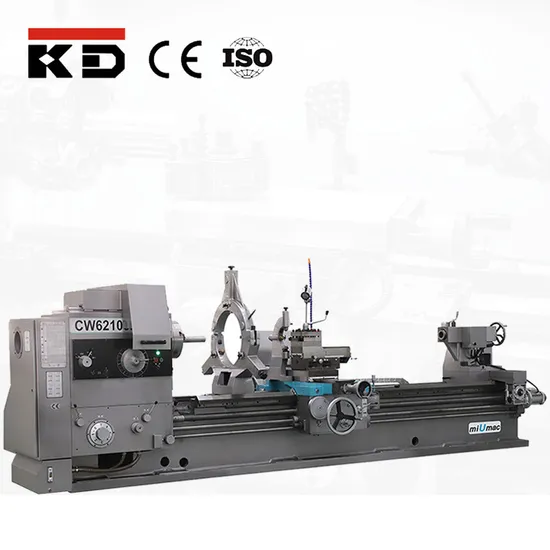

Gear Head Conventional Engine Lathe Cw62110b/1500
| US$3,000.00-50,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
CW62110B/1500
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
Normal Precision
Certification
CE, ISO 9001
Condition
New
Bed Width
600mm
Spindle Bore
105mm
Max Swing Over Bed
1100mm
Motor Power
11kw
Colour
Any Colour
OEM
Yes
Transport Package
Export Wooden Case(Heat Treated)
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
8458190000
Production Capacity
130 Sets/Year
Product Description
Product Features
1. Precision ground and hardened bed ways, long life and low noise.
2. The spindle is supported with precision roller bearings. The spindle system is high in rigidity and accuracy.
3. Rapid feed structure is available on apron.
4. Clutch in headstock makes the lathe start smoothly and brake quickly.
PRODUCT SPECIFICATIONS
| MODELS | CW6291B | CW62100B | CW62110B | |
| CAPACITY | ||||
| Max. swing over bed | Ф910mm | Ф1000mm | Ф1100mm | |
| Max. swing over carriage | Ф580mm | Ф580mm | Ф680mm | |
| Max. swing over gap | Ф1100mm | Ф1200mm | Ф1300mm | |
| Effective length of gap | 400mm | |||
| Width of bed | 600mm | |||
| Max. length of workpiece | 1.5/ 2/ 3/ 4/ 5/ 6/ 8m | |||
| Max. turning length | 1.35/ 1.85/ 2.85/ 3.85/ 4.85/ 5.85/7.85 m | |||
| Max. weight of workpiece | 2000kg | |||
| SPINDLE | ||||
| Spindle nose | D11 | |||
| Spindle bore | Ф105mm | |||
| Taper bore of spindle | Metric Ф120 1:20 | |||
| Steps of spindle speed | 4 STEPS | |||
| Range of spindle speed | 10~630rpm | 5~645rpm | ||
| FEED RANGE OF TOOL POST FOR PER REVOLUTION OF SPINDLE | ||||
| Number of longitudinal feeds | 64 | |||
| Range of longitudinal feeds (1:1) | 0.1~1.52mm/r | |||
| Range of longitudinal feeds (16:1) | 1.6~24.3mm/r | |||
| Number of cross feeds | 64 | |||
| Range of cross feeds | Half of longitudinal feeds | |||
| RAPID TRAVEL | ||||
| Longitudinal | 4000mm/min | |||
| Cross | 2000mm/min | |||
| THREADING | ||||
| Metric pitch threads | 1~240mm/ 50 | |||
| Whit-worth threads | 14~1TPI/ 26 | |||
| Module threads | 0.5~120M.P/ 53 | |||
| D.P.Threads | 28~1DP/ 24 | |||
| TAILSTOCK SLEEVE | ||||
| Taper bore | M.T.NO.5 | |||
| Max travel | 250mm | |||
| External diameter | Ф100mm | |||
| OTHERS | ||||
| Vertical distance from spindle center to installing basis | 33mm | |||
| Max travel of compound rest | 200mm | |||
| Swing angle of tool post | ±90° | |||
| Max travel of cross slide | 500mm | 570mm | 620mm | |
| Size of tool shank | 32×32mm | |||
| Main motor power | 11kw | |||
| Rapid feed motor power | 1.1kw | |||
| Coolant pump power | 90w | |||
| 3m machine overall dimension | 5155x1450x1630mm | 5155x1450x1685mm | 5155x1450x1735mm | |
| 3m machine net weight | 7050kg | 7550kg | 8050kg | |
