Single Screw Soybean Extruder Animal Feed Machine High Quality Low Price

Product Description

Soybean Expander/Soybean Extruding Machine/Single Screw Soybean Extruder
1. Processing method of extruded soybean/Soybean Expanding Machine/Single Screw Soybean Extruder
The main equipment for extruding soybean is the extruder, which can be divided into two types: dry puffer and wet extruder. The main difference between the dry extruder and the wet extruder is that the wet extruder has a modulator, and steam is introduced into the extruder. The initial input of wet extruder is larger than that of dry extruder, but the output per unit time is high and the energy consumption is low. The specific use of dry expansion machine or wet expansion machine, users can determine according to their actual situation.
2. Soybean Extruding Process/Soybean Expanding Machine/Single Screw Soybean Extruder
Raw material screening impurity removal crushing expansion cooling finished product packaging
In general, the production of extruded soybean flour requires the following main equipment:
1. Soybean crusher can smash soybean into soybean powder by pounding.
2. Soybean extruder: This is the key equipment for the production of extruded soybean flour. The soybean flour first enters the conditioner of the extruder, which is heated and humidified by steam. The soybean flour after steam conditioning enters the extruder from the strong feed. The function of the strong quality feeder is to prevent the materials with high heat and humidity from caking and blocking when they enter the cavity. After entering the expansion cavity, the extruder screw pushes the soybean flour forward. In the process of pushing forward, a large amount of heat is generated to make the soybean warm and mature. Finally, the extruded soybean flour is produced by the extrusion machine cavity head.
3. The water content and temperature of extruded soybean flour with high temperature and high moisture content enters into the cooler and is cooled by natural air drawn by the fan, so as to reduce the moisture and temperature of extruded soybean flour to the qualified level, so as to facilitate the storage of users.
4. Crusher: according to the needs of users, crush the extruded soybean powder to the fineness suitable for users, and finally get qualified extruded soybean powder products.
The above are the main equipment for the production of extruded soybean flour. In actual production, there are some supporting equipment. According to the different production process, the following equipment may be used: screw conveyor, elevator, pulse dust collector, brake dragon, fan, rotary grading screen, etc.
3. Detection method of extruded soybean/Soybean Expanding Machine/Single Screw Soybean Extruder
The purpose of soybean expansion is to destroy some anti nutritional factors effectively, improve its utilization rate, and make livestock and poultry get better production performance after feeding. However, if the aging is excessive, some amino acids will be destroyed. If it is over heated, the damage to lysine, arginine and cystine will be increased, and the digestibility of methionine, isoleucine and lysine will be decreased, and the food intake will be reduced. If the degree of ripening is not enough, it will seriously affect its utilization rate, so it is necessary to do a test on its ripening degree. Generally, the degree of ripening is determined by the activity of urease in soybean flour. At present, there are many detection methods, the more commonly used are pH value-added method and phenol red method. According to the Chinese feed standard, the value of urease activity measured by pH method should not exceed 0.4. Many studies have shown that the urease activity is only in the range of 0.03-0.04, and the feed effect is the best. However, it is better to use urea phenol red method to detect urease activity in the field of feed manufacturers. Therefore, the method is simple and fast, and the technical level is not high. It is easy to master, and can also achieve the purpose of detection in production, which is suitable for popularization and use.
4. Problems in the process of Soybean Extrusion/Soybean Expanding Machine/Single Screw Soybean Extruder
The quality of full fat soybean depends on good operation management and operation skills. Only by controlling the three parameters of time, temperature and humidity can the product quality be stable.
1. The quality of soybean: moisture content is 12.5% - 14%, impurity is not more than 2.5.
2. The best particle size of material entering the chamber is 3-6 mm, so as to achieve constant quality and improve production capacity.
3. In order to ensure the constant product quality, the residence time of raw materials in the chamber and the temperature in the chamber should be recorded in the production process. Generally speaking, the time of raw materials in the chamber is less than 30s, the duration of the highest temperature is 5-6s, the temperature of the best section should be 130-145 ºC, and the moisture content of the product should be below 8%. In addition, proper amount of water can be added during processing, which helps to reduce trypsin inhibitor without denaturation of lysine.
4. Cooling: the temperature of full fat soybean after extrusion is very high. It should be cooled down as soon as possible to prevent the product from over ripening and damaging the protein. It should be especially careful that the moisture content of the product after wet expansion is high, which must be fully dried and cooled to achieve safe storage moisture.
5. Parameters of Dry type Soybean Extruder/Soybean Extruding Machine/Soybean Expanding Machine/Single Screw Soybean Extruder

Model	Capacity	Motor power	Feed power	Cut power	Screw diameter
HH-D60	120-150kg/h	15KW	0.4KW	0.4KW	60mm
HH-D70	180-250kg/h	18.5KW	0.4KW	0.75KW	70mm
HH-D80	300-350kg/h	22KW	0.6KW	1.5KW	80mm
HH-D90	400-450kg/h	30KW	0.8KW	2.2KW	90mm
HH-D120	500-700kg/h	55KW	1.1KW	2.2KW	120mm
HH-D135	800-1000kg/h	75KW	1.1KW	2.2KW	135mm
HH-D160	1200-1500kg/h	90KW	1.5KW	2.2KW	155mm
HH-D200	1800-2000kg/h	132KW	1.5KW	3KW	195mm

Parameters of Wet type Soybean Extruder/Soybean Extruding Machine/Soybean Expanding Machine/Single Screw Soybean Extruder

Model	Capacity	Motor power	Feed power	Cut power	Screw diameter
HH-W60	200-250kg/h	15KW	0.4KW	0.75KW	60mm
HH-W70	300-400kg/h	18.5KW	0.4KW	0.75KW	70mm
HH-W80	500-600kg/h	22KW	1.1KW	0.75KW	80mm
HH-W90	700-800kg/h	37KW	1.1KW	1.1KW	90mm
HH-W120	1000-1200kg/h	55KW	1.1KW	1.1KW	120mm
HH-W135	1400-1600kg/h	75KW	1.5KW	2.2KW	135mm
HH-W160	2000-3000kg/h	90KW	2.2KW	2.2KW	155mm
HH-W200	3000-5000kg/h	132KW	2.2KW	3KW	195mm

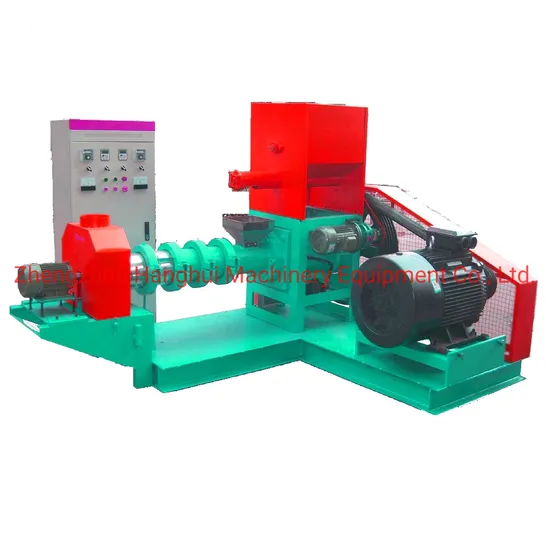

6. Pictures of Soybean Extruder/Soybean Extruding Machine/Soybean Expanding Machine/Single Screw Soybean Extruder
7. Delivery of the Soybean Extruder/Soybean Extruding Machine/Soybean Expanding Machine/Single Screw Soybean Extruder
Within 7-10 working days after deposit payment.
