High Speed Automatic Cone Winding Machine in Textile for Sewing Thread with PLC

Product Description

Product Description

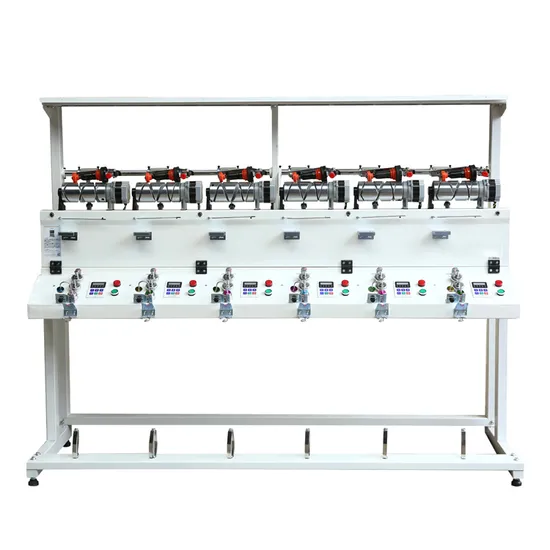

The machine for winding and waxing yarn of flat knitting machines, circular knitting ,and used for winding in textile spinning mills and weaving manufacturers.It has the advantages of yarn break self-stop,beautiful shape,unified and adjustable speed.
The soft winding machine is suitable for soft cone winding before yarn dyeing. The hard cone winding machine is suitable for winding yarn of flat knitting machines,circular knitting,spinning machines,dyed yarn to waxing. Product Parameters

No.of spindles	2,4,6,8,12,24,36....108 spindles
Grooved drum	Length 175mm dye tube,it can be customized
Take up package	Tube Bobbin (0°) / Cone 3°30,4°20, 5°57, 9°15
Max. package diameter	¢280mm
Max. length setting	999999 meter, electronic setting
Drive mode	Single spindle independent DC motor drive
Max. winding speed	1000meter/minute
Yarn-guiding traverse	Standard 147mm
Radial anti-aliasing system	Microcomputer control
Power	75W at highest speed
Yarn tension and waxing device	Every spindle has a yarn tension and waxing device
Auto Stop Device	Each spindle install auto stop device
Electronic Anti-Stack	Inverter control
Cleaner device	Every spindle has a Mechanical Knife yarn cleaner
Yarn tension and waxing device	Every spindle has a yarn tension and waxing device

Our company can customized according to customer requirements;2 spindles/set,4 spindles/set,6spindles/set,8spindles/set,12spindles/set.
Features
Automatic length setting up to 999999 meter; Motor for each spindle with adjustable winding speed and independent controlling of each spindle; Optical yarn breaking detector for each spindle;(auto stop of yarn break is controlled by infrared sensor) Every spindle configuration of rotating tension slices. Microcomputer controlled anti-aliasing;(Electrical wobble frequency anti-patterning function) Using variable frequency speed control and slow start device.
Detailed Photos
Customer Show

Related machine
We can supply you kinds of cone winding machine,assembly doubling winder,TFO twisting machine,hank to cone winding machine,cone to hank winding machine.
We can supply small size carding machine,sample opening machine,lab draw frame,mini roving machine,lab ring machine.
Company Profile
We will pack the goods carefully and safely deliver to your hands.
Our express can be sent to various locations and can be delivered.
FAQ
Q: How's the after-sale service?
We offer engineers available to service overseas under merchandiser's supervision and translation.
Q: Are you available for on-the-spot invitation?
We do welcome our new and old friends come here to have a visitation. Besides, we would send you our exposition and relative information to promote a face-to-face meeting if you'd like to.
Q: Is the price offered changeable?
We offer reasonable price for every client, and the price is changeable according to purchasing amount.
Q: How about the quality?
The main structure and raw materials are all supplied by large companies.Key parts are research and developed by our own staff. We have an intelligent manufacturing system.
Q: Are you a manufacturer or Trade Company?
Factory + trade (integration),30 years focusing on textile machine field,More than 10 years exporting experience.
Q: Product /Quality Guarantee and After Sale Service?
12 months warranty for the International standard. We are work online 24 hours. If you have any questions about our machine you can contact us.
