Full Automatic Fireworks Packing Paper Pipe Tube Core Cutting Making Machinery

Full Automatic Fireworks Packing Paper Pipe Tube Core Cutting Making Machinery

US$32,000.00
1-2 Sets
US$31,000.00
3+ Sets

Basic Info.

Model NO.
HSS-J600
Paper Core Usage
Paintings Packaging, Instrument Package, Industry
Tube Machine Type
Winding Machine
Gumming Type
Double Side
Layers of Roll Paper
3-8
Reelpipe Speed
3-60 M/Min
Wall Thickness of Paper Tube
0.5-3 mm
Certification
CE
Condition
New
After-sales Service
One Year Warranty
Paper Shelf Type
Integral Reel Stand
Main Motor
5.5 Kw
Cutting Way
Servo Synchronism Multi-Blade Cutting
Transport Package
Wooden Case
Specification
6000*1600*1600 mm
Trademark
Horsen
Origin
China
HS Code
84418090
Production Capacity
20sets/Month

Product Description

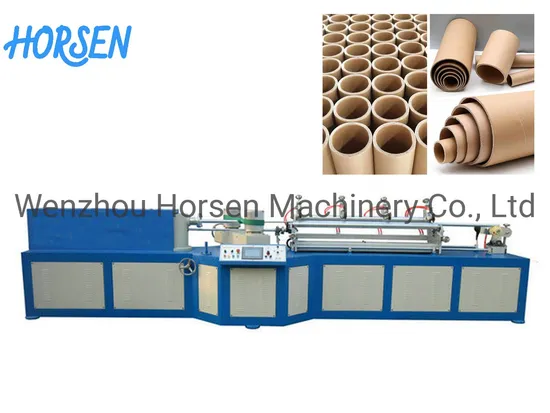

PAPER TUBE MAKING MACHINE
USE: Suitable for all kind of paper tube / paper can production. Such as package tin, tea caddy, food cans, wine cans, fireworks tube, calendar tube, fax paper core, etc.
FEATURE: Numerical control servo cutter device, high precision cutting; Automatically cut, automatically fall pipe, automatically change speed and revert; With online multi-cut blades, no need secondary cutting, save labor and time. Stable production at the highest speed 45 m/min Specification:
Technical Parameter
Number of roller 3-8 layers
Tube diameter 15-100 mm
Tube wall-thickness 0.5-3 mm
Core mould fixed way Flange chuck
winding head 2
Cutting way Servo synchronism multi-blade cutting
Gluing way Double sides
Operator 1-2 person
Winding speed 3-60 m/min
Speed control Transducer
Mainframe size & Weight
Mainframe size 6000*1600*1600 mm
Area space 10000*10000 mm
Weight 3000KG
Driving system
Main motor 5.5 KW
Reducer type WPDO155
Reduce type RV40-1:7.5
Conveyor reducer type 0.37 KW
Cutting motor Servo motor
Cut left-right control Synchronous belt + servo motor
Synchronism control cutting system servo system
Glue pump 750 W

1 Year Guarantee !
100% Good Quality !
24 Hours online Service!
if you have any inquiry, pls feel free to contact us. We will try our best to satisfy with you !
