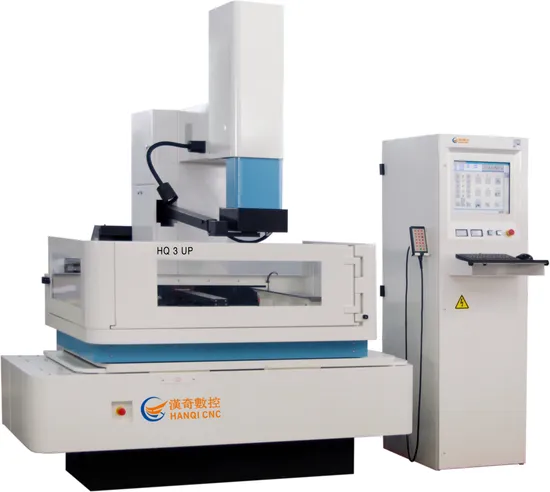

Chinese CNC Wire Cut EDM Wedm Machine
| US$25,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
2UP
Transport Package
Wooden Case
Trademark
HANQI EDM
Origin
China
HS Code
8456301090
Production Capacity
500
Product Description
| Specification | ||||
| Model | FW1U | FW2U | FW3U | |
| Machine | ||||
| X,Y,Z travel | mm | 350×320×150 | 500×400×250 | 630×500×350 |
| U,V travel | mm | ±18 | ±18 | ±22 |
| Cutting degree | °/mm | ±10/80° | ±10/180 | ±10/250 |
| Wire diameter | mm | 0.12-0.20 | 0.12-0.20 | 0.12-0.20 |
| Machine size | mm | 1625×1225×1730 | 1790×1715×2050 | 2310×1940×2408 |
| Controller size | mm | 935×685×1865 | 935×685×1865 | 935×685×1865 |
| Machine weight | kg | 1810 | 2680 | 3500 |
| Working tank | ||||
| Workpiece size | mm | 630×400×200 | 800×500×300 | 930×650×400 |
| Loading | kg | 300 | 600 | 800 |
| Worktable size | mm | 650×420 | 800×500 | 930×650 |
| Working tank size | mm | 960×640×120 | 1200×740×150 | 1360×930×150 |
| Working fluid tank | ||||
| Filter fineness | μm | 10 | ||
| Volume | L | 50 | ||
| Pulse power | ||||
| Max cutting speed | mm2/min | 180 | ||
| Best roughness | μm | ≤1.0 | ||
| Control system | ||||
| Hardware | Industrial PC | |||
| Communication interface | USB,LAN,RS232 | |||
| Axis control | 4 axis simultaneous | |||
| ISO code | G and M code | |||
| Language | Chinese-English- Spanish- Portuguese-Russia | |||
