1L 3L 5L Dispersion Lab Kneader Mixer

Product Description

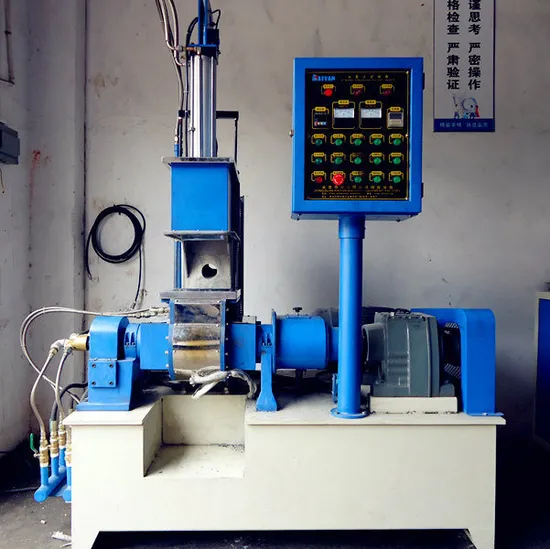

Dispersion Kneader Mixer (X(S)N-10*32) for rubber mixing
Dispersion mixer/rubber kneader/kneader
This mixer is a new and high-tech equipment developed for the mixing of high-power or low-power foaming plastics and for the foaming of rubber and plastics products.
Specifications: 3L-200L
Features:
1. This mixer is new and high-tech equipment developed for the mixing of high-power or low-power foaming plastics and for the foaming of rubber and plastics products.
2. This mixer possesses of the automatically contstant temperature water supply system and the high and low pressure control device of RAM.
3. This mixer prosseses of the time sequential control and temperature sequential control functions.
4. According to the requirement, the revolution speed of front rotor can be raised up to Upwards of 40r/min.
5. According to the request of users, the heating mode can be provided with the steam heating, electric heating or heating by heat conductive oil.
6. This product is a most ideal plastics mixing.

Molde/Item		X(S)N-3×32	X(S)N-5×32	X(S)N-10×32	X(S)N-20×32	X(S)N-25×32	X(S)N-35×30	X(S)N-55×30	X(S)N-75×30	X(S)N- 110×30	X(S)N- 150×30
Total volume of mixing chamber	L	8	15	25	45	55	75	125	170	250	325
Working volume of mixing chamber	L	3	5	10	20	25	35	55	75	110	150
Driving motor power	kW	5.5	11	22	37	37	55	75	110	185	220
Tilting motor power	kW	0.55	1.1	1.1	1.5	1.5	2.2	2.2	3	5.5	11
Tilting angle	°	140	140	140	140	140	140	140	140	140	135
Rotational speed of the rotor (front /rear)	r/min	32/24.5	32/23.5	32/25	32/27	32/27	30/24.5	30/24.5	30/24.5	30/24.5	30/24.5
Pressure of compressed air	MPa	0.5~0.8	0.6~0.8	0.5~0.8	0.6~0.8	0.6~0.8	0.5~0.8	0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8
Capacity of compressed air	m 3 /min	≥0.3	≥0.5	≥0.5	≥0.7	≥0.7	≥0.9	≥1.0	≥1.0	≥1.5	≥1.0
Pressure of cooling water (rubber mixing )	MPa	0.2~0.4	0.2~0.4	0.2~0.4	0.2~0.4	0.2~0.4	0.3~0.4	0.3~0.4	0.3~0.4	0.3~0.4	0.2~0.4
Pressure of heating steam (plastics mixing )	MPa	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8	0.4~0.8

Our main product :
Rubber mixing mill
Rubber vulcanizing machine
Rubber kneader
Rubber tiles press machine
Rubber cutter
Waste tire recycling machine
Reclaimed rubber machine
raw rubber steel wire separator machine
After-sales Service:
1 overseas service, technician provides debug and training
2 during warranty, if quality problem appears (not include man made problem), we can replace it by free..
3 we will reply during 24 hours once problem appears, we can solve through guide picture or video; if problem can not solved, we can send engineer to your factory.
About us:
Qingdao Guangyue Rubber Machinery Mnanufacturing Co.,Ltd make high quality rubber machine, from materials to producing, we use the good quality material, complete management system, also excellent aftersale service, we had a great feed back from south America,north Europe,Middle East,Aisa and so on we hope to be one reliable factory for you! welcome to visit our manufacturer!
CE,SGS ISO9001 Certification
