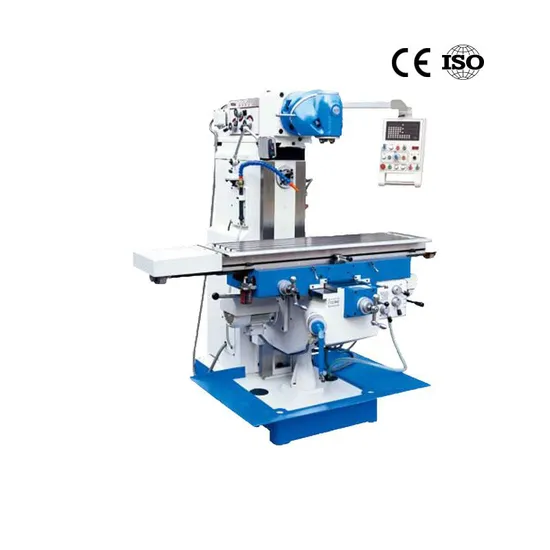

Universal Milling Machine X6432 High-Quality Universal Swivel Head Rotary Head Milling Machine
| Negotiable | 1 Set (MOQ) |
Basic Info.
Model NO.
X6432
Type
Worktable Milling Machine
Structure
Rocker
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
CE
Condition
New
Transport Package
Full Closed Plywood Box
Trademark
SENMO
Origin
China
HS Code
84596990
Product Description
| Universal Milling Machine X6432 |
| Specifications | X6432 |
| Table size | 1320x320 mm |
| X-axis travel (manul) | 1000mm |
| Y-axis travel (manul) | 300mm |
| Z-axis travel | 400mm |
| Distance vertical spindle to table surface | 220-660mm |
| Distance vertical spindle to column surface | 100-600mm |
| Ram travel | 380mm |
| Spindle taper | ISO40(V) / ISO40(H) |
| Spindle speed range (Vetical) | 45-1660rpm (8 steps) |
| Spindle speed range (Horizontal) | 40-1300rpm (8 steps) |
| T-slot size | 14mm/63mm/5 |
| Feeding rate (X/Y) | 20-360mm/min |
| Feeding rate (Z) | 422mm/min (only rapid) |
| Rotation range of spindle | ±360º |
| Table swivel angle | ― |
| Main Motor power | 3KW (V/H) |
| N.W/G.W | 2100/2300kg |
| Standard Accessories | Optional Accessories |
| Machine Work lamp | Swivel worktable |
| Coolant system | Digital readout system |
| CE electrical cabinet | Big table 1600mm |
| Pendent control station | Spindle protect guard |
| Drill chuck | Slotting head |
| Drawbar | Deluxe pendent control station |
| Chip tray | Dividing head device |
| Manual lubrication oil pump | Rotary table |
| Clamping kit | |
| Vice |
Our Services
What we can do for you? 1. Experienced staffs answer all your questions in time. 2. Customized design is available, more details to let you know our machines well. 3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
