Disc Harrow (Medium Hydraulic Mounted Disc Harrow) 1bj Seriers

Product Description

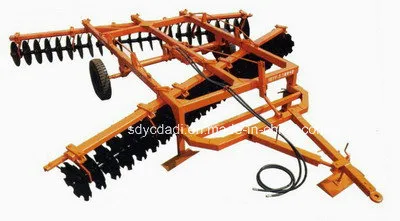

1BJ-4.0 Middle-duty Off-set Disc Harrow
The 1BJ-4.0 middle-duty off-set disc harrow has 36 pieces of disc blades and its working width is 4.0m. Its has two disc gangs and the front gangs are assembled with scalloped disc, and rear gangs with plain disc.The material of the disc is superior 65Mn,and the disc blades are made of heat-treatment processing.The middle duty disc harrow has the reasonable structure, rugged,transportation convenience,easy to adjusted,facilitate the use of maintenance,match a wide range of characteristics,and it can complete the breaking crop,ridge operation one-time. The bearing is ball bearing with sphere-outside and square-inside, its rated load is large, trailing resistance is small, sealing is good.
The middle duty disc harrow 's folded wings make the working width wider and transportation width narrow. Fitted with hydraulic lifting rubber wheels and spring adjusting devices and roller bearing assemblies. They are convenient for transporting.
The 1BJX series Disc Harrow are suitable for pulverized and loosening clods on sticky heavy clay soil after ploughing and for planning the land before sowing.On cultivated land, the machines can make soil and fertilizer mix up, and clear away the stump of plants and be used instead of plough on light or medium soil and preparing seed bed for planting.
The 1BJ series Middle-duty Disc Harrow could be used with from90 HP to 120HP type tractors.
Technical parameters:

Model	1BJ-4.4	1BJ-5.3
Working width(M)	4.4	5.3
Overall size(mm)	2970*2680*1460	2970*3260*1460
Working depth(mm)	140
Dia.Of Disc(mm)	560
Thickness of disc(mm)	4
Disc spacing(mm)	230
Qty.Of Disc	40	48
Productivity(Ha/h)	2.7	3.2
Weight(Kg)	1750	2200
Linkage	Trailed
Matched power(Hp)	80-100	110-150
