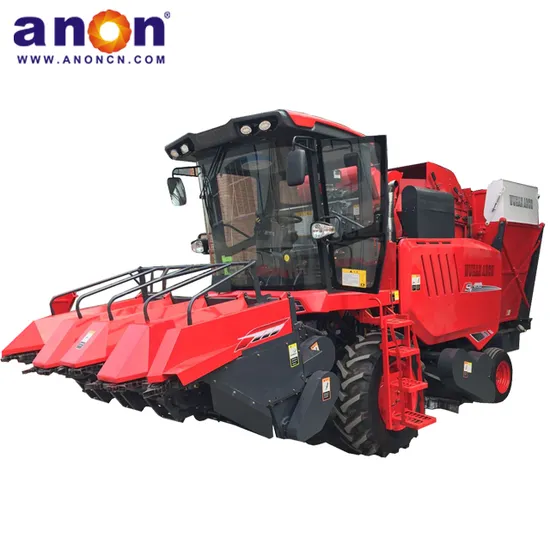

Anon Agriculture Tools Harvesting Machine Farm Wheel Corn Maize Harvester

Product Description

Anon Agriculture Tools Harvesting Machine Farm Wheel Corn Maize Harvester
Feature
Self-propelled corn harvester with compact design, short body, strong maneuverability, small turning radius, convenient U-turn, high harvesting efficiency; new dynamic peripheral, novel and fashionable design, beautiful and practical, convenient maintenance; original harvesting table, can be Realize the wrong harvest, adapt to various row spacing and agronomic requirements.
Advantage
1. The cutting table adopts the forced feeding method of the pull-heel chain, which can realize the wrong row harvesting, and can realize the horizontal harvesting at the top of the field.
2. The harvester picking roller adopts double helix picking roller, which can pull the stems quickly without entanglement and blockage.
3. The hob-type pre-crusher and the center-mounted field return machine can deeply crush the straw and return it to the field. The cutting stubble is low and the straw crushing rate is high.
4. The peeling machine adopts 5 groups of 20 rollers, a finger-type pressure feeding device, flexible peeling technology, low seeding rate, high peeling rate
5. Chute-type grain recovery device can quickly unload grain, short time and high efficiency
6. The elevator and peeling machine are equipped with speed alarm devices, which can transmit fault information in the first time
7. The electronic visual and audio-visual monitoring system is installed in the grain bin, peeling machine and the rear of the car, which can intuitively work conditions, have clearer vision and safer operation
8. The walking system adopts a stepless speed change mechanism, which makes the operation and walking operation more convenient
9. The overall large-arc glass cab is comfortable to work and improves the visual environment of work

Type	Wheel type
Wheel	2 drive wheel + 2 direction wheel
Function	Picker + peeling, produce "corn cob"
Model of engine	YC4A165-T300
Power	165hp
Engine speed	2300-2400 r/min
Harvester rows	4 rows
Cutting width	2000mm
Harvest efficiency	0.33-0.66 hectare / h
Total loss rate	less than 4%
Pelling rate	more than 90%
Impurity rate	less than 1.5%
Oil consumption	less than 20kg/hectare
Size	6392*2544*3378mm
NW	6020KGS
