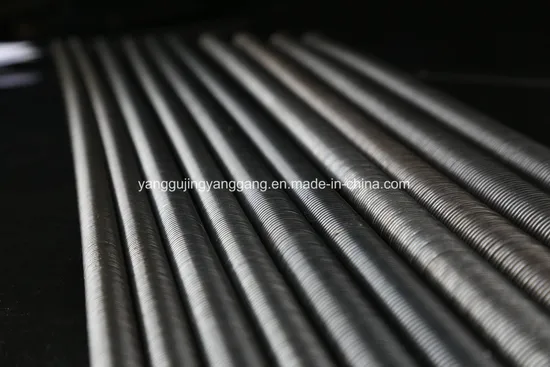

Concrete Vibrator Shaft/Flexible Drive Shaft/Drain Cleaning Shaft (JYG8.10.11.12.13)
| US$0.80 | 1,000 Meters (MOQ) |
Basic Info.
Model NO.
JYG8.10.11.12.13
Smooth
Wear Resistant
1.5mm-30mm
Transmission
Soft
Stiff
Steel Wire
Stainless Steel Wire
Levorotation
Dextrorotation
Load
Drive Shaft
Stiffness & Flexibility
Flexible Shaft
Axis Shape
Soft Wire Shaft
Shaft Shape
Real Axis
Transport Package
Cartons, Pallets, Woven Bags. or as Your Request
Specification
ISO9001: 2008, SGS
Trademark
JYG
Origin
Yanggu, Shandong
HS Code
8483109000
Production Capacity
600000 Meters Per Month
Product Description
Structure: 70#~75# high-carbon steel wire
Direction of Twist: Levorotation and dextrorotation
Applicable Scope: Vibrating machine, automobile, motorbike, counter, revolution counter, electric tools, gardening machinery mower, and various mechanical flexible rotations.
Function: Smooth, flexible, highly-elastic, and wear resistant
| Diameter (mm) | Tolerance (mm) | Number of Layers | Loading Moment (N @ m) (Sample 500mm Long) | Weight (kg/ 100m) | |
| 2.0 | +0.02 -0.02 | 3/5 | 0.8 | 1.8 | |
| 2.5 | 3/5 | 1.0 | 2.8 | ||
| 3.2 | 3/5 | 1.3 | 4.6 | ||
| 3.8 | 3/5 | 1.5 | 6.5 | ||
| 5.0 | +0.00 -0.05 | 3/4/5 | 1.8 | 11.3 | |
| 6.0 | 3/4/5 | 2.4 | 16.2 | ||
| 6.5 | 4/5/7 | 2.9 | 18.7 | ||
| 8.0 | | 4/5/6/7 | 7.5 | 28.8 | |
| 10 | 4/5/6/7 | 22.5 | 45.5 | ||
| 12 | 4/5/6/7 | 39.0 | 66.5 | ||
| 13 | 4/5/6/7 | 50.5 | 77.5 | ||
| 16 | 4/5/6/7 | 115.0 | 114 | ||
| 18 | 4/5/6/7 | 160 | 145 | ||
| The flexible shafts not listed in the chart can be customized | |||||
