Water Tank Fire Engine Truck HOWO Fire Fighting HOWO Water Foam Tank Fire Truck for Sale

Product Description

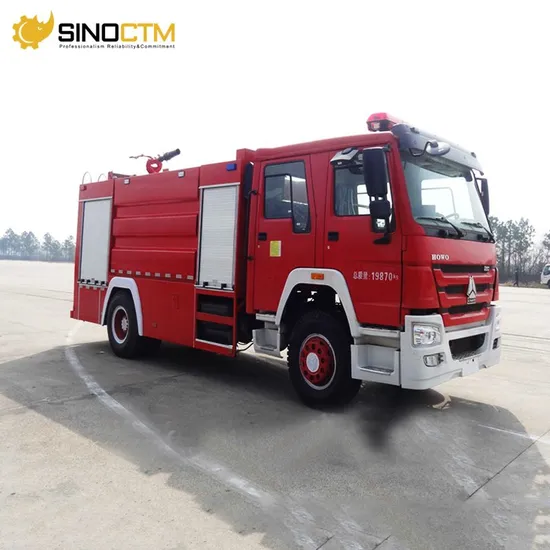

Sinotruk New Design water and foam Howo Fire Truck
Fire truck(also called fire truck, fire fighting truck, water tank fire truck ,foam tank fire truck,fire sprinkler truck, fire pump truck, fire rescue truck, fire fighter truck, fire alarm truck, fire ladder truck, fire foam truck, fire water cannon, fire engine, fire monitor, fire fighting vehicle, water tanker fire truck, foam tanker fire truck, water carrier fire truck ) is mainly used to emergency fire fighting.
Specification of Sinotruk HOWO 4X2 8000L Fire Fighting Truck

SINOTRUK HOWO 4x2 RESCUE FIRE TRUCK SPECIFICATIONS
vehicle main parameters
Overall Dimension		8650×2500×3440
GVW		16000kg
Engine Model		WD615.87
Engine Power		213kW
Wheelbase		4600mm
Driving Type		4×2
Max.speed		102km/h
Emission Standard		9726ml
Passengers		2+4
Approach angle		≥16°
Departure angle		≥23°
Generator		10KW
Lifting lamp		4×1000W,Height≥7.5M
Traction winch		5443kgf
Crane		5000kg
Cabin
Structure		flat,4 doors,double row of seats
Passenger No		2+4
Back row of chairs		4 sets of Air respirators at the back of the back row seats
Drive type		Right hand drive
Equipment		Besides original equipments on chassis,add:100W siren,long line fire lights,marker lamp,outline marker lamp,PTO and so on
Frame body
Material		The outer frame of the body are all high quality Q235A, the inner frame use high strength aluminum alloy, the bottom panel adopt aluminum panels with anodic oxidation treatment.
The doors		The doors are aluminum alloy structure with locks which are good sealing and dustproof.
Lifting Lamp
Lifting system		BSD-Z7041000
Manufacturer		BOCAN
Power		4×1000W
Lifting height		7.6m(From top to ground)
Rotation Angle		Horizontal 360°,Vertical 330°
Lifting type		Pneumatic
Control Cabinet Voltage		380/220V
Other		With control cabinet
Hydraulic Crane
Model		SQ5ZK2
Max Lifting Weight		5000kg
Max.Lifting Torque		10.5T.M
Max Length of hydraulic arm		8m
Max Working Height		9m
Rotation Angle		370°
Installation type		Rear-mounted
Rotary range		360°
Traction Winch
Model		N16800XF-24V
Manufacturer		USA CHAMPION
Max traction force		16800lbs(7560kgs)
Driving type		Power-driven
Diameter of wire rope		13mm
Length of wire rope		48m
Generator
Model		SHT11500
Rated Voltage		220V/380V
Rated Power		10kW
Equipped		Movable coil,earthing system
Starting Mode		Electric start and manual start
Electrical Equipments
Additional electrical		Independent circuit
Auxiliary lighting		Headlamps are installed in the tools compartment and storage compartment. operating dashboard is equipped with lighting switch, indicator light.etc. It is convenient for observation.
Side flashing light		A set of red and blue flashing lights are installed on both sides of the vehicle body.
The warning device of the cabin		Long red light 1 piece, which is installed on the top of the cabin; Electronic alarm 1 piece, which is installed in the cabin; The control box is installed below in front of the driver
The accessories equipment list
Portable dry powder fire extinguishers		1
Bucket		2
Triangle Warning board		2
sole timber for crane		2
Spare light tube		2
Original chassis tools and accessories		1
Packing	Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice

Fire fighting truck can be divided into many types:
a. According to vehicle size ,there are mini fire fighting truck ,light fire fighting truck ,medium fire fighting truck ,heavy-duty fire fighting truck;
b. According to chassis drive type ,there are 4x2 fire fighitng truck ,6x4 fire fighting truck ,8x4 fire fighitng truck and off-road type 4x4,6x6 fire truck;
c. According to chassis brand,ther are Dongfeng,FOTON,FAW ,SINOTRUCK ,etc.
d. According to fire agent,there are water tank fire fighting truck ,water/foam fire fighting truck ,dry powder fire fighting truck
Fire truck details
Our Company
SINOTRUK is located in Jinan city and was founed in 1956.It once manufactured china's first heavy duty truck. Our company belong to SINOTRUK sales department and we have specialized in sinotruk trucks and spare parts for many years.The famous brand of sinotruk are HOWO series,HOWO A7 series,HOHAN series.We can supply tractor truck,dump truck,cargo truck,concrete mixer truck,fire tanker truck,water truck,fuel tank truck,bulk cement truck,sewage suction truck and also different types of semi trailers.
In 1960,sinotruk introduced the steyr technology using on engine and axle from Austria.Later,sinotruk established cooperation with German man group and wobaco company.Today,sinotruk has developed into china's largest heavy duty truck manufacturing base and made significant contributions to the development of china's heavy duty truck industry and national economic growth.SINOTRUK has an annual output of 180,000 vehicles and 200,000 engines capacity.
We have not only the certificate and license of truck export and also strict quality management, fast and convenient channel of goods delivery, strict examination in quality and quantity of products, professional packing, professional and reliable loading goods, on-time delivery and competitive prices. If you want to buy these products, please contact us.
We sincerely hope to cooperate with you to expand market in your country!
Main products
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
Our Certificates
Fire Trucks on board for shipping FAQ
1. MOQ: 1 unit
2. Optional payment terms: T/T or L/C
T/T: 30% deposit by T/T, 70% balance should be paid before shippment.
L/C: 30% payment advance, 70% L/C at sight.
3. Parts of famous brand can be adopted by your requirement.
4. Delivery time: Within15 workdays after receiving 30% deposit of T/T About Us
1 Factory price, more competitive than agent price.
2 Quality: With SINOTRUK group inspection system, a series inspections are well done before the exportation.
3 Warranty: One year or 100 000k which comes to the first for the engine, gear box, and axles.
4 After-sales: Professional after-sales team sovle your difficult or special questions within 3 working days or 5 working days, and all spare parts are available for your urgent use.
5 Transportation: Professional logistics team work with international shipping company for your truck shipment successfuly.
