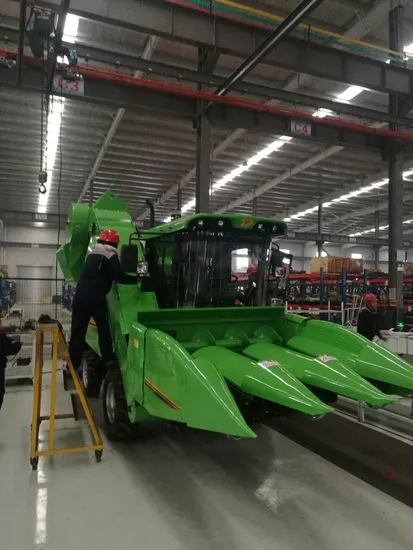

4yzp-3 China Corn Harvester Disk Corn Storage Harvester
| US$5,000.00-55,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
4YZP-3
Harvest method
Cutting
Drive Type
Gear Drive
Transmission
Soft Shaft
Portable Harvester Type
Backpack Type
Certification
QS, ISO9001:2008, CE
Color
Green
Application Field
Agriculture
Transport Package
Three for a Cabinet
Specification
6380mm*2200mm*2900mm
Trademark
Farmlead
Origin
China
HS Code
87019310
Production Capacity
15000 Sets/Year
Product Description
| 1 Engine brand and model | QuanChai4D2-110U32 |
| 2 Rated power and engine | 83KW |
| 3 Engine rated speed | 2400r/minute |
| 4 Engine cylinder diametre stroke | 386Nm |
| 5 engine displencment | 4.087L |
| 6 Maximum engine torque | 386Nm |
| 7 Maximun engine torque | 150X118mm |
| 8 Machine weight | 4550KG |
| 9 Size length width height | 6380*2200*2900 |
| 10 Front wheel model | 9.50-16 |
| 11 Rear Wheel Type | 6.00-16 |
| 12 Number of jobs productivity m2 per hour | 3 row ,2300-4000 m2/h |
| 13 working width | 1850mm |
| 14 row spacing suitable for harvesting | 550-650 |
| 15 harvesting for method | Spike plate hexagon roller |
| 16 Straw cutting height | 100mm |
| 17 Maximum unloading height for grain containers | 1920 |
| 18 Mode of transport to grain box belt | / |
| 19 Maximum lift height | 2850 |
| 20 Minimum clearance | 250mm |
| 21 Working speed | 2.0-5.0 km/h |
| 22 Harvest efficiency | 2300-4000m/h |
| 23 specific fuel consumption | 35 |
| 24 Size and quantity of peeling roll | 73x970mm 12 roller |
| 25 Wether to install fan | yes |
| 26 Fan form e g centrifugal | centrifugal |
| 27 Fan diameter | 300mm |
| 28 Grain box volum | 1800L |
| 29 Unloading model of grain box Hydralink cylinder | Mobile rovoller and unloading Hydraulic cylinder drive |
| 30 Working width of straw returning machine | 1500mm |
| 31 Shift method for gear box | draulic variable speed + Mechanical gearbox |
| 32 Steering mode | Steering wheel Hydraulic power |
| 33 brake mode | Disc mechanical brake |
| 34 front guage | 1740 |
| 35 rear track | 1600 |
