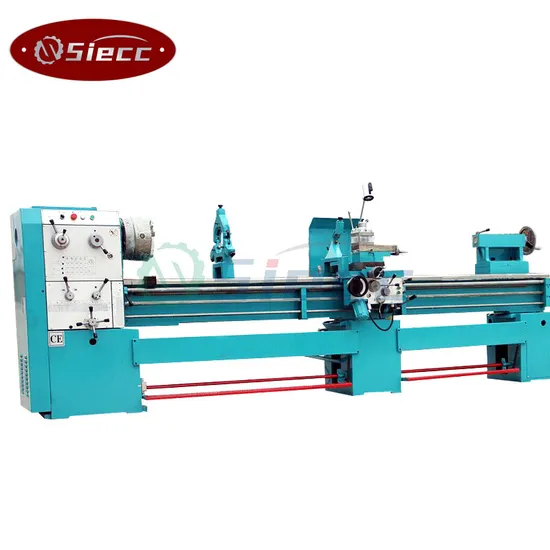

C6236h Steel Mechanical Lathe Machine with Good Price

Product Description

Lathe Machine:
Tailstock locked by thread and camlock.
Spindle hole 52mm, the nose conforms to SO-C6
Kinds of threads.

Model		CH6236G/750MM	CH6236G/1000MM
CAPACITY	Max.swing over bed	360mm
	Max.swing over cross slide	198mm
	Max.swing over gap	476mm
	Center Distance	750mm	1000mm
HEADSTOCK	Spindle hole	38mm
	Spindle nose	ISO-D5
	Spindle taper	MT5
	Spindle speed(Number)	(8steps)70-2000rpm
FEEDS	Metric threads range	26kinds 0.4-7mm
	Inch threads range	34kinds 56-4 T/inch
	Longitudinal feeds range	20kinds 0.052-1.392 mm/r
	Cross feeds range	20kinds 0.078-1.044 mm/r
TAILSTOCK	Taper of tailstock sleeve	MT3
	Max.travel of tailstock	100mm
MOTOR	Main drive motor	1.5KW
PACKING L*W*H	Center Distance(750mm)	175*75*100cm	200*75*100cm
N.W/G.W	Center Distance	570/620kg	640/690kg

How about your machine quality?We are worry about the quality.
SIECC is a mature brand in CHINA,through our many years research in technology,our design including structure and detailed sercurity and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are SIECC machines.And where there are our machines,there are good reputation and terminal user satisfaction.

Whether the machine price can be more discount
SIECC always provide high quality machine,as we know ,oversea market is more important and difficult than domestic market because of communication time costing after sales,So always,our machine has enough qaulity standard to make sure the machine can work more than the real warranty period.In this way ,we will save a lot and think in advance for the clients.
Actually SIECC also think about our price level,we are sure to provide quality=price and pice=quality ,the matched price and acceptable for the clients and durable for our machines.We welcome your negotiate with us and get a good satisfaction.
How about your manufactory in CHINA
SIECC located in HAIAN CITY,NANTONG,JIANGSU province who is the leading area in China and also in the worldwide as the center of the metal plate solution machines,We have worked about 10 years in this area and totally have about 150 staffs.Rich experience in this field with professional technical supporting and oriented service.
We welcome your visit to us any time.

Do you accept L/C payment term?
Yes,we accept 100% L/C at sign from almost all countries.
