Spain Type Tiles Roofing Machine

Product Description

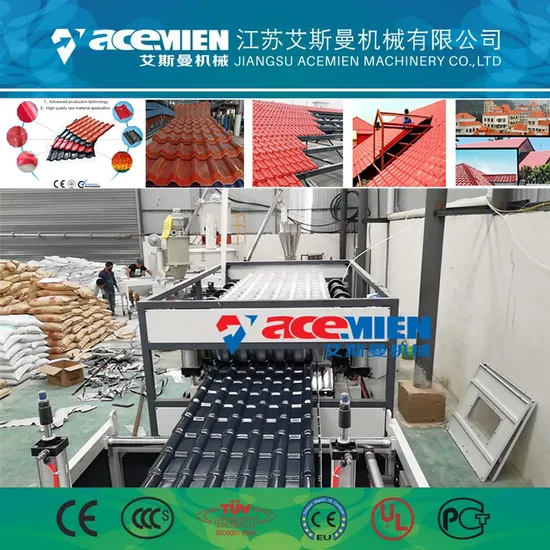

Spain Type Tiles Roofing Machine
Product Description:
This PVC+ASA & PMMA synthetic resin tile extrusion machine adopts the advanced foreign technology, and designed for corrosion resistance of plant and heavy acid rain area, it's a new generation of permanent roofing materials.
This line adopts a processing two layer co-extrusion technology, each layer has different functions. Surface materials: weather ability resin to keep the durability and resistance to chemical corrosion of products.
Underlying material: white ductile materials, to enhance the sense of space and brightness of house.
The two different materials give the each features of product: smooth face and getting together well. The new PVC anticorrosive composite wave tile solves the problems of durability, corrosion resistance, small rigid, the sense of space and aesthetic.
Technical Parameters :

Raw material formulation	Bottom layer PVC powder CaCO3 CPE PE-WAX Stearic acid Compound stabilizer ACR paraffin Surface layer ASA granule
Description final product Output	Two layers PVC+ASA Co-extrusion Glazed tile Output 300-400kg/h(Depending on CaCO3 proportion)
Final product	Main tile1set Two layers PVC+ASA Roofing tile Width 720/880 /1040mm Thickness: 2~3.0mm Wave distance 160mm Wave height:28/30mm Wave length 220/250mm Ridge tile 4sets

Machine configuration:

No	Name	Number
1	Screw loader	1set
2	SJZ80/156 Conical twin screw extruder	1set
3	SDG50 drying hopper	1set
4	Vacuum loader	1set
5	SJ50/30 single screw extruder	1set
6	Mould	1set
7	Distributor	1set
8	Embossing roller	1set
9	Trimming device	1set
10	Forming machine	1set
11	Cutter	1set
12	Stacker	1set

FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 45-60 days if the goods are not in stock, it is according to what kind of machine you need

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: 30% T/T in advance ,70% balance before shipment or Negotiable
If you have another question, please feel free to contact us as below
We will test machines in our factory before delivery. Customer check machines running in our factory, after customer is fully satisfied with the quality, then delivery, when machines arrive in customer's factory, we will send our engineer to test the machine in customer's factory
We supply machines technical support, material formulation; guarantee machines and spare parts supply
