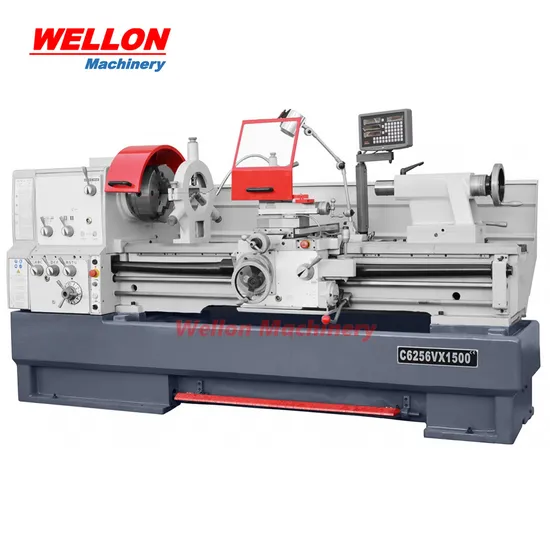

Dro Precision Lathe Machine (C6251V / C6256V Horizontal Lathe Machinery)
| US$10,000.00-18,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
C6251V / C6256V
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Spindle Bore
80mm
Distance Between Centers
1000/1500/2000/3000 mm
Width of Bed
350mm
Swing Over Bed
510mm
Transport Package
Ply Woodcase
Specification
CE ISO9001 ROHS
Trademark
WELLON
Origin
Tengzhou, China
HS Code
8458190000
Production Capacity
100sets/Month
Product Description
Products Description:Performence Features:
Spindle speed Variable changed, with High Low two steps,with speed display
The guide way and all gears in the headstock are hardened and precision ground.
The spindle system is high rigidity and accuracy.
The machines have powerful headstock gear train, high rotating accuracy and smooth running with Iow noise.
An overload safety device is provided on the apron.
Pedal or electromagnetic braking device.
Tolerance test certificate, test flow chart included
Spindle bore 105mm is optional
Technical parameter:
| SPECIFICATION | C6251V | C6256V |
| Swing over red | 510mm | 560mm |
| Swing in gap | 300mm | 350mm |
| Swing of gap | 738mm | 788mm |
| Length of gap | 200mm | |
| Distance between centers | 1000/1500/2000/3000mm | |
| Width of bed | 350mm | |
| Spindle nose | D1-8 | |
| Spindle bore | 80mm | |
| Taper of spindle bore | No.7Morse | |
| Range of spindle speed | Variable, 30-1700r/min | |
| Max.travel of compound rest | 130mm | |
| Max.travel of cross slide | 326mm | |
| Leadscrew pitch | 6mmOr4T.P.L | |
| Max.section of tool | 25×25mm | |
| Longitudinal feeds range | 35kinds0.059-1.646mm/rev | |
| Cross feeds range | 35kinds0.020-0.573mm | |
| Metric threads range | 47kinds0.2-14mm | |
| Inch threads range | 60kinds2-112T.P.L | |
| Diametrical pitches range | 50kinds4-112D.P. | |
| Module pitches range | 39kinds0.1-7M.P. | |
| Dia of tailstock sieeve | 75mm(3") | |
| Travel of tailstock sleeve | 180mm(7") | |
| Morse taper of tailstock sleeve | No.5Morse | |
| Cross adjustment | 13mm | |
| Power of main motor | 7.5kw(10HP)3PH | |
| Power of coolant pump | 0.1kw(1/8HP),3PH | |
| Overall dimension(L×W×H)cm | 239/284/334/434×112×143 | |
| Packing size(L×W×H)cm | 245/290/340/440×113×182 | |
Standard accessories :
Three Jaw Chuck and Adapter
Four Jaw Chuck and Adapter
Face Plates
Steady Rest
Follow Rest
Oil Gun
Thread Chasing Dial
Operation Manual
One set of Wrenches
Reduction Sleeve
Dead centers
Work lamp
Coolant system
Foot brake
Operate tools
Optional accessories :
Taper turning attachment
Lead Screw Cover
Tool post cover
Chuck cover
Quick change tool post
Live center
DRO
