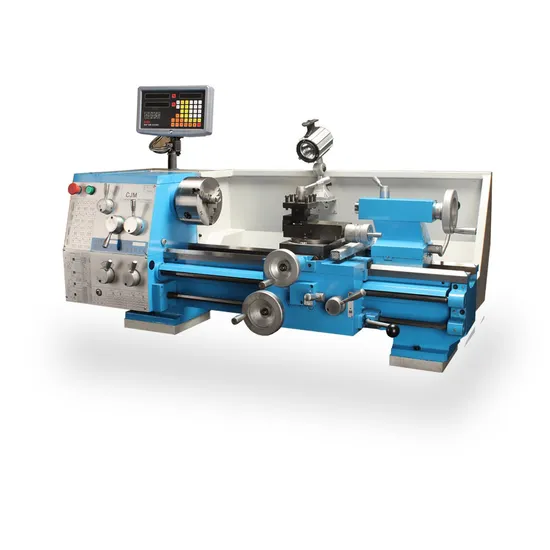

Upscale Horizontal Small Bench Metal Cjm360 Manual Mini Lathe Machine for Sale

Product Description

Product Description
Upscale Horizontal Small Bench Metal Cjm360 Manual Mini Lathe Machine for Sale
Product Parameters
Bench Lathe have all basic characteristics comparing to normal larger gear head lathe, it has unique advantages, such as, smaller size, lighter weight, lower noise and so on. Its relatively simpler structure also remain in full rigid and high strength hardened steel base construction.
Further more, full scale of accessories are provided for each Bench Lathe who still be able to carry on turning, drilling, boring, knurling and threads processes, which also means it can be widely introduced into small metal / nonmetal workpieces machining during family metal work, technical school education or scientific facilities research.
Product feature:
1.Most economical,widely useful hobby lathe.
2.Power longitudinal feed allows threading.
3.V-way a depot double triangle and rectangle side way.
4.Easy access to safety switches.
5.Spindle is supported by precision tapered roller bearing.
6.Head stock be gear drive power.
7.Large MT4 spindle bore.
8.High precision chuck.
9.Induction cuts with cross & longitudinal power feed

Technical Specifications	Specifications	CJM360
	Max.swing over bed	360mm
	Max.processing length	750mm
	Max.swing over cross slide	240 mm
	Spindle hole	38mm
	Spindle taper	MT.5#
	Compound cross travel	180mm
	Compound longitudinal travel	100mm
	Metric thread kinds	22
	Metric thread range	0.20-7mm
	Inch thread kinds	45
	Inch thread range	2-48 1/n″
	Longitudinal feed at spindle every turn	0.10-1.40mm/r
	Cross feed at spindle every turn	0.045~0.60mm/r
	Max Travel of tailstock sleeve	100mm
	Tailstock taper	MT.3#
	Spindle speed steps	12
	Spindle speed range	80~2000r/min
	Main motor	1500w
	Weight	350/390kg
	Packing size(L*W*H)	1580x745x730mm

Realistic photos
Detailed Photos

Our Advantages
why not consult us once instead of searching ten times
Certifications
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
