High Quality High-Precision Multi-Function Bar Feeder Turning CNC Mill Turn Machine

Product Description

Product Description

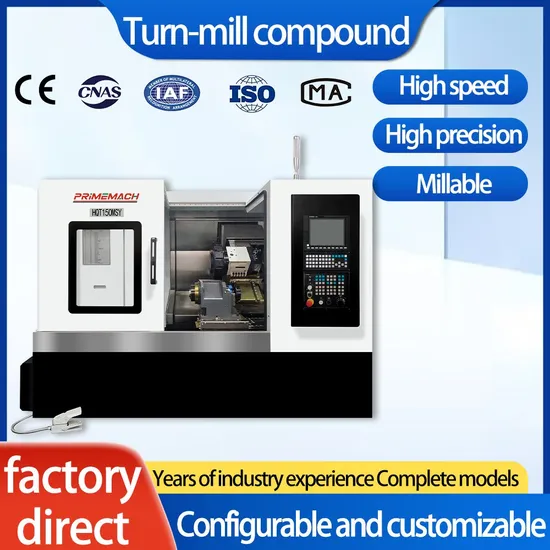

HQT150MSY is a high-precision and high-efficiency dual-spindle turning and milling compound machine tool, which is widely used in precision machining fields. The machine combines turning and milling functions to complete the machining of complex parts in a single clip, significantly improving production efficiency and machining accuracy.
Detail
Dual spindle design: Equipped with two independent spindles, can be processed at the same time, reduce the number of clamping, improve production efficiency.
Turning and milling compound function: set turning and milling function in one, suitable for complex parts processing.
Linear guide rail and ball screw: X, Y, Z axis adopts high-precision linear guide rail and ball screw transmission, with high motion accuracy, low friction, fast response speed and other advantages, can achieve fast feed and accurate positioning, to ensure the accuracy and efficiency of processing.
High precision: The use of high rigidity bed and precision guide rail to ensure machining accuracy and stability.
High degree of automation: Optional automatic loading and unloading system to achieve automated production.

HQT150MSY
CNC control system	SYNTEC 220TB
Maximum turning diameter	Φ 600 mm
Spindle disc type maximum machining diameter	Φ 320 mm
Countershaft disc type machining diameter	Phi 250 mm
Maximum turning length (one clip, one top)	510+40mm(back knife)
Maximum milling length (one clip to one tip)	550mm
Maximum distance between spindle gripper and countershaft gripper	530mm
Minimum distance between spindle gripper and countershaft gripper	30mm
Minimum distance between spindle gripper and cutter head	-110mm
Maximum distance between spindle gripper and cutter head	510mm
Spindle speed/auxiliary spindle	4500rpm
Spindle specification/countershaft specification	A2-6/A2-5(motorized spindle)
The main shaft hollow can be passed through the bar diameter	52mm(main)/40mm(auxiliary)
Spindle/countershaft chuck dimensions	8/6inch hollow chuck
X axis maximum travel	260mm
Maximum Y-axis travel	±60mm
Maximum travel of Z1/Z2(auxiliary) shaft	620/500mm
X axis fast moving speed	24m/min
Z-axis fast moving speed	24m/min
Number of tools installed on the tower	16t
Outside diameter tool bar height	25*25mm
Inside diameter Maximum diameter of tool bar	Φ 40 mm
Spindle/auxiliary spindle motor	15/11kw
Milling shaft	3.9 kw
Total machine power	45kw
Cooling tank capacity	260L
Machine height	2100mm
Floor area (length * width)	2900*1900mm
Gross machine weight	5500kg
SIEMENS/FANUC systems	High pressure effluent 30/70Bar
Power seat radial 0°	Power cutter seat axis 90°
10inch hollow chuck	Automatic door

Company Profile
Anhui Primacon Intelligent Equipment Co., Ltd. is an Anhui Province SMEs and a national high-tech enterprise. Located in the beautiful city of Tongling, Anhui Province, the company focuses on the research, development, production and sales of multi-axis CNC lathes and machining centers. Introducing advanced technology from Germany and Japan, is committed to improving the quality of machine tools and high level of application, and we also offer automation integration services. Our products are mainly used in fields such as automotive manufacturing, aerospace, mold manufacturing, engineering machinery, and general equipment industry.
The company's main products:
1.High precision CNC lathe HQT series, QTE series; 2.High-precision turning and milling composite series; 3.Vertical, Horizontal, Gantry Machining Center series. We always adhere to the breakthrough innovation, deep plowing expertise, continue to strive forward!
Exhibition
Our Advantages
Certifications
Packaging & Shipping
FAQ
Q: What machining functions do your machining centers support?
A: Our machining centers support drilling, tapping, milling, boring, and turning functions, with multi-axis options (such as 3-axis, 4-axis, and 5-axis) to meet the needs of complex workpiece machining.
Q: What is the precision of your CNC lathes?
A: The machining precision of our CNC lathes typically ranges from 0.001mm to 0.003mm. Depending on the model, higher precision can be customized upon request.
Q: Can the machines be customized according to customer requirements?
A: Absolutely! We support customization of machining range, spindle power, automation level, and fixture and tooling configurations to meet your production needs.
Q: Can you provide automation solutions?
A: Yes, we can provide automation solutions, including automatic feeding systems, robotic arms, and production line integration.
Q: What does your after-sales service cover?
A: Our after-sales service includes providing detailed operation manuals, instructional videos, and remote technical support to help customers quickly learn how to operate the equipment. Additionally, we maintain dedicated service records for each customer to monitor equipment performance and ensure long-term stability. We also supply spare parts and respond promptly to customer inquiries and needs to ensure proper equipment functioning.
Q: What should I do if the machine breaks down?
A: If the machine breaks down, you can contact our after-sales team at any time. We offer remote video diagnosis, phone guidance, and, if necessary, dispatch engineers for on-site repairs.
Q: How long is the delivery time?
A: Standard models usually require 30-45 days for delivery. For customized models, the delivery time may take 60 days or longer, depending on the complexity. The exact delivery time will be confirmed with the order.
Q: How are the machines packaged and transported?
A: Our machines are packaged with waterproof and rustproof materials, reinforced with sturdy wooden crates, suitable for sea and long-distance transportation to ensure the products arrive at your specified location in perfect condition.
Q: What payment methods do you accept?
A: We accept various payment methods, including T/T bank transfers and Letters of Credit (L/C). Please contact us if you have other requirements.
Q: Do you have export experience?
A: Yes, we have been exporting machines to many countries worldwide for years and are familiar with export procedures, including customs declaration, clearance, and providing relevant certificates such as CO, invoices, and packing lists.
