Magnetic Material Blender Mixer – Homogenizing Rare Earth Powders for Magnet Production in Electronics

Product Description

Product Description
The conical screw (Nauta) mixer is a convective mixer with high mixing efficiency. It is gentle and guarantees the highest level
of mixing accuracy without product distortion. It is a highly efficient vertical powder mixer with low energy consumption for batch
mixing of powder and granules of various particle sizes.
Typical Application
Applicable Materials
Salts, Lactose, Bran, Gelatin, Barley, Starch, Dried Fruits, Fiber, Soy Protein, Spices, Sugar substitutes, Cellulose, Wheat,
Food Seasonings, Seaweed, Nutraceutical, Proteins, Vitamins, Aluminum silicate, Catalysts, Kaolin, Metallic Compounds, Silica,
Calcium Carbonate, Pigments, Zinc Oxide, Detergents, Dyestuff, PE, PP, PVC, Silicone, Synthetic Resin, Synthetic Rubber, etc. Working Principle

Conical Screw Mixer consists of the drive unit, conical vessel, transmission assembly, double screws, and discharge valve. The screws and screw arms are driven by the motor and reducer; both separately move at different speeds. The spiral moved the materials upward along the central shaft, where the materials drop by its gravity in the center. At the same time, the screw arm revolves around the central shaft to keep the materials rotating and dispersing in the mixer. The whole mixing forms a three-dimensional action; where raw materials are sheared and diffused repeatedly in the vessel. Thus, the mixture achieves optimum homogeneity.

Product Parameters

Model	Allowable working volume	Spindle speed(RPM)	Motor power(KW)	Solo drive male rotation Motor power (KW)	Equipment weight(KG)	Overall dimension(mm)	KB1	B1	A1	K1	KF1
VSH-0.01	4-6L	130/3	0.37	N/A	100	455(D)*540(H)	N/A	478	N/A	N/A	N/A
VSH-0.015	6-9L	130/3	0.37	N/A	110	470(D)*563(H)	N/A	478	N/A	N/A	N/A
VSH-0.02	8-12L	130/3	0.55	N/A	120	492(D)*583(H)	N/A	478	N/A	N/A	N/A
VSH-0.03	12-18L	130/3	0.55	N/A	130	524(D)*620(H)	N/A	590	N/A	N/A	N/A
VSH-0.05	20-30L	130/3	0.75	N/A	150	587(D)*724(H)	N/A	590	N/A	N/A	N/A
VSH-0.1	40-60L	130/3	1.5	N/A	210	708(D)*865(H)	N/A	682	N/A	N/A	N/A
VSH-0.15	60-90L	130/3	1.5	N/A	250	782(D)*980(H)	N/A	682	N/A	N/A	N/A
VSH-0.2	80-120L	130/3	2.2	0.37	500	888(D)*1053(H)	N/A	855	N/A	515	650
VSH-0.3	120-180L	130/3	3	0.37	550	990(D)*1220(H)	N/A	855	N/A	515	650
VSH-0.5	200-300L	130/3	3	0.37	600	1156(D)*1490(H)	N/A	855	N/A	515	650
VSH-0.8	320-480L	57/2	4	0.75	900	1492(D)*1710(H)	708	1005	525	680	890
VSH-1	400-600L	57/2	4	0.75	1200	1600(D)*1885(H)	708	1005	525	680	890
VSH-1.5	600-900L	57/2	5.5	0.75	1350	1780(D)*2178(H)	708	1025	525	680	890
VSH-2	0.8-1.2m3	57/2	5.5	0.75	1500	1948(D)*2454(H)	708	1025	525	680	890
VSH-2.5	1-1.5m3	57/2	7.5	1.1	1800	2062(D)*2473(H)	708	1075	525	680	890
VSH-3	1.2-1.8m3	57/2	7.5	1.1	2100	2175(D)*2660(H)	708	1075	525	680	890
VSH-4	1.6-2.4m3	41/1.3	11	1.5	2500	2435(D)*3071(H)	730	1295	N/A	856	1000
VSH-5	2-3m3	41/1.3	15	1.5	3000	2578(D)*3306(H)	730	1415	N/A	856	1000
VSH-6	2.4-3.6m3	41/1.3	15	1.5	3500	2715(D)*3521(H)	730	1415	N/A	856	1000
VSH-8	3.2-4.8m3	41/1.1	18.5	3	3800	2798(D)*3897(H)	835	1480	780	N/A	N/A
VSH-10	4-6m3	41/1.1	18.5	3	4300	3000(D)*4192(H)	835	1480	780	N/A	N/A
VSH-12	4.8-7.2m3	41/1.1	22	3	4500	3195(D)*4498(H)	835	1480	780	N/A	N/A
VSH-15	6-9m3	41/0.8	30	4	5000	3434(D)*4762(H)	N/A	1865	1065	N/A	N/A
VSH-20	8-12m3	41/0.8	30	4	5500	3760(D)*5288(H)	N/A	1865	1065	N/A	N/A
VSH-25	10-15m3	41/0.8	37	5.5	6200	4032(D)*5756(H)	N/A	N/A	1065	N/A	N/A
VSH-30	12-18m3	41/0.8	45	5.5	6700	4278(D)*6072(H)	N/A	N/A	1065	N/A	N/A

Equipment Details Display

High Precision Gear :The gear has highprecision, smoothsurface and strongbearing capacity .	Vibration Core Motor:Can work continuouslyfor a long time.	High Sealing:High technical sealingdegree, to preventpolluting materials.

Installation Options

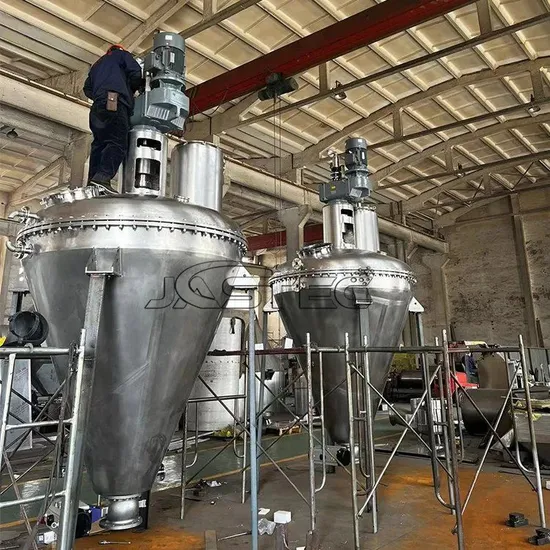

Workshop Enviroment
Company Profile
Company Exhibition Jastec(Shanghai) Technology Co., Ltd is a professional supplier of food deep processing (include food additive) machinery. It integrates develop, sales, after-sale services as a whole, being a professional supplier for extraction equipment, drying equipment, mixing equipment, grinding equipment and turnkey project for food(include food additive)and agriculture industry etc.Jastec has passed the Occupational health and Safety Management System Conforms to the standard CE,SGS.As the members of China National Standardization technique Committee for Industrial Equipment,testified by experience of long-term users, our machine and production line have very high stability and reliability, which have been sold to more than 160 foreign countries like Asian, African,European, American. Jastec have established branch offices and showrooms in Europe and North America.
