Cak6166 Flat Bed High Precision Cheap Price Horizontal Metal CNC Lathe

Product Description

Product Description

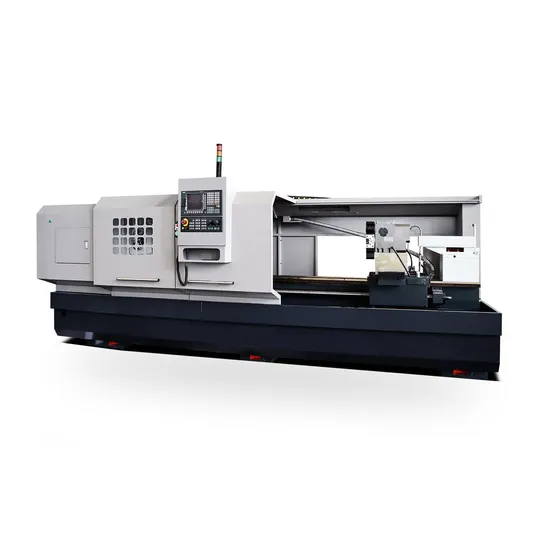

Cak6166 Flat Bed High Precision Cheap Price Horizontal Metal CNC Lathe
CAK series CNC Lathe machine is an economical, practical type machine tools with high quality.
It has a very wide use which is suitable for internal and external turning, tapering, circular arc, thread, boring, reaming of axis and disk workpiece. It also can achieve non-circular curve machining. You can choose the CNC system and optional accessories according to your requirements.
Features :
Big torque ,high precision spindle
Hydraulic shift ,easy operate
Z axis feed is directly connected which has high transmission accuracy and high positioning accuracy
Vertical 4 position electric toolpost with high positioning accuracy
Standard configuration:
GSK control system
Guideway width 400mm
Manual chuck
Manual tailstock
Optional Configuration :
Siemens or Fanuc system
Hydraulic chuck
Hydraulic tailstock
Electric turret /Hydraulic turret
Automatic chip conveyor
Application :
CAK series CNC lathe machine is an economical ,practical type machine tools iwth good quality .
The machine has a very wide use which is suitable or internal and external turning ,tapering,circular arc ,thread ,boring ,reaming of axle and disk workpiece .It also can achieve non-circular curve machining ,You can choose the CNC system and optional accessories according to your requirement .
Product Parameters

SPECIFICATIONS	SPECIFICATIONS	Units	CAK6140		CAK6150	CAK6161	CAK6166		CAK6180
			CAK6140B		CAK6150B	CAK6161B	CAK6166B		CAK6180B
			CAK6140C		CAK6150C	CAK6161C	CAK6166C		CAK6180C
	Swing over bed	mm	400		500	610	660		800
	Swing over cross slide	mm	180		280	350	380		520
	Distance between centers	mm	750/1000/1500/2000/3000
	Spindle bore	mm	52,(80 for B),[105 for C]
	Spindle bore taper	-	MT6,(φ90 1:20 for B),[φ113 1:20 for C]
	Spindle nose type	-	C6,(D8 for B),[D8 for C]
	Spindle speed steps	-	Manual 3 steps (Optional: stepless)
	Spindle speed range	rpm	21-150,66-500,162-1500 (Optional: 100-1600 )
	Turret/tool post	-	Electric 4 position	Electric 4 position		Electric 4 position	Electric 4 position	Electric 4 position
	Tool size	mm	25 x 25	25 x 25		25 x 25	25 x 25	25 x 25
	X axis travel	mm	200	250		310	330	400
	Z axis travel	mm	750/1000/1500/2000/3000
	X axis rapid traverse	mm/min	6000	6000		6000	6000	6000
	Z axis rapid traverse	mm/min	10000	10000		10000	10000	10000
	Tailstock quill diameter	mm	75	75		75	75	75
	Tailstock quill taper	-	MT5	MT5		MT5	MT5	MT5
	Tailstock quill travel	mm	150	150		150	150	150
	Main spindle motor	kw	7.5	7.5		7.5	11	11
	Coolant pump motor	kw	0.125	0.125		0.125	0.125	0.125
	Weight for 750	kg	2450	2500		2550	2650	2750
	Weight for 1000	kg	2550	2600		2650	2750	2850
	Weight for 1500	kg	2650	2700		2750	2850	2950
	Weight for 2000	kg	3050	3150		3250	3350	3450
	Weight for 3000	kg	3850	3950		4050	4150	4250
	Dimension for 750	mm	2550x1650x1700	2550x1650x1750		2550x1700x1800	2550x1750x1850	2550x1750x1900
	Dimension for 1000	mm	2750x1650x1700	2750x1650x1750		2750x1700x1800	2750x1750x1850	2750x1750x1900
	Dimension for 1500	mm	3250x1650x1700	3250x1650x1750		3250x1700x1800	3250x1750x1850	3250x1750x1900
	Dimension for 2000	mm	3700x1650x1700	3700x1650x1750		3700x1700x1800	3700x1750x1850	3700x1750x1900
	Dimension for 3000	mm	4710x1650x1700	4710x1650x1750		4710x1700x1800	4710x1750x1850	4710x1750x1900

Realistic photos
CAK series CNC Lathe Machine is an economical, practical type machine tools with good quality.
C The machine has a very wide use which is suitable for internal and external turning, tapering, circular arc,
thread, boring, reaming of axle and disk workpiece.It also can achieve non- -circular curve machining. You
can choose the CNC system and optional accessories according to your requirement.
Detailed Photos
Our Advantages
Why not consult us once instead of searching ten times
Trading one day earlier, you will earn money one day earlier than others and occupy more market share
Certifications
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
