High Performance PF1315 Impact Stone Crusher Machine Prices in China

Product Description

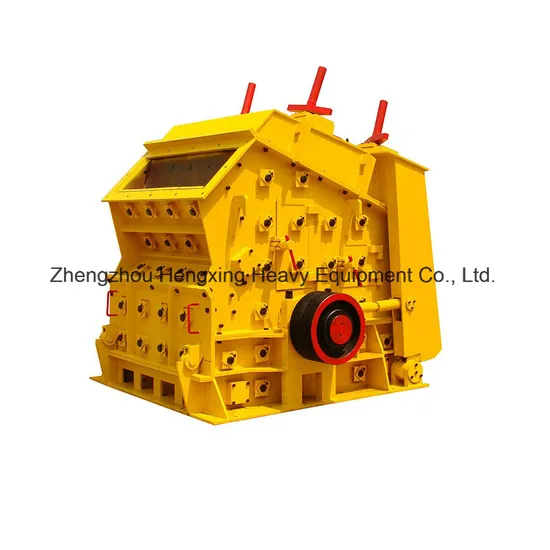

High Performance PF1315 Impact Stone Crusher Machine Prices In China
Hard stone crusher mainly include jaw stone crusher, impact stone crusher.
The impact hard stone crusher which is a kind Rock crusher that employs self-weigh security device in its back frame. When other objects enter the impact cavity, they will be forced out of the machine by the impact rack in the front and back of the machine.
Working principle of the impact crusher:
impact crusher is a kind of broken by impact energy to the material of crushing machinery.When the impact crusher works, the motor drives the rotor rotate of the impact crusher with high speed, on the rotor where installed the hammers. When the materials get into the area which the hammers effect, under the impact function of the hammer at a high speed, the materials are thrown to the impact device above the rotor continuously. And then the materials are rebounded from the impact liner to the area where the hammers effects for being recrushed. The materials from large to small all to be crushed at the impact chamber repeatedly. The process won't stop till the material are crushed to the required size and then discharged from outlet of the impact crusher.
Features and Benefits of our impact stone crusher:
1. Our impact crusher is of High reduction ratio and crushing efficiency
2. No-board connection; The blow bar of our impact crusher with high chrome(high chromed blow bar).
3. Impact plate with a special shape.
4. Crushed product of impact crusher with cubical shape.
5. Easy maintenance and reliable operation.
Impact Crusher features many advantages: Simple structure, Non-key Connection, high chromium Flat Hammer, special impact plate, simplified crushing process, and high-efficiency and energy conservation, Cubic shape for the final products. The discharge opening can be adjusted. It is widely used in water and electricity, expressway, sand and stone, crushing fields.
We have many models of hard stone crusher, please don't hesitate to contct zhngzhou HengXing Heavy Equipment Co., Ltd for the hard stone crusher, jaw crusher and impact crusher.
Impact stone crusher technical parameters:

Model	Size of rotor (mm)	Feed opening (mm)	Max. feed size (mm)	Capacity (t/h)	Power of Motor (kW)	Weight (t)
PF1007	Φ 1000× 700	400× 730	300	15-30	37	6
PF1010	Φ 1000× 1050	400× 1080	350	50-80	75	12.5
PF1210	Φ 1250× 1050	400× 1080	350	70-130	110	16.5
PF1214	Φ 1250× 1400	400× 1430	350	90-180	132	19
PF1315	Φ 1320× 1500	860× 1520	500	120-250	200	24
PF1320	Φ 1320× 2000	860× 2030	500	160-350	260	27

Impact crusher package and shipping :
