Factory Direct Sales Microcomputer Controlled Electronic Universal Testing Machine

Product Description

Microcomputer Controlled Electronic Universal Testing Machine Gantry Universal Testing Machine Tensile Strength Tester
1 Applications
The equipment is applicable to the manufacture of metal, adhesives, pipes, profiles, aerospace, petrochemical, waterproofing membranes, wire and cable, textile, fiber, rubber, ceramics, food, pharmaceutical packaging, geotextile, film, wood, paper, etc. The product quality supervision departments at all levels are also applicable to teaching demonstrations in colleges and universities.Tensile testing machine 10KN price computer controlled universal tensile testing machine.
2.Technical parameters

Model	WDS-10/20kn/30kn/50kn/100kn
Max. Testing Force	10kN/20kn/30kn/50kn/100kn
Measure Range of Testing Force	2%-100%FS
Accuracy of Testing Force	Over ±1%
Discrimination of Displacement(mm)	0.001
Accuracy of Displacement Measure	Over ±1%
Tensile Volume(mm)	800
Compression Volume(mm)	800
Testing Volume(mm)	800
Range of Speed Control(mm/min)	0.01~300
Accuracy of Speed Control	Over ±1%
Accuracy of Deformation Value Display	Over ±1%
Weight (kg)	250

3. Feathure
(1)A testing machine integrates various independent testing functions such as tension, compression, bending, tearing, and peeling, providing a variety of test items for users to choose;
(2)The synchronous belt drives the ball screw to rotate, ensuring high-precision and stable operation;
(3)1 ~ 500mm/min stepless speed change, which provides users with convenient testing of different test conditions;
(4) Multi-level limit protection, overload protection, automatic high-speed return, fault prompts and other intelligent configuration to ensure the safety of the user's operation;
(5) Portable manual control system to facilitate the user to quickly perform test operations, effectively ensure the safety of the system, and the reliability of the test operation;
(6)The equipment adopts miniaturization and structural integration design to meet the test requirements for various occasions;
(7)Professional software provides group test curve overlay analysis and statistical analysis of maximum, minimum, average, standard deviation, etc.

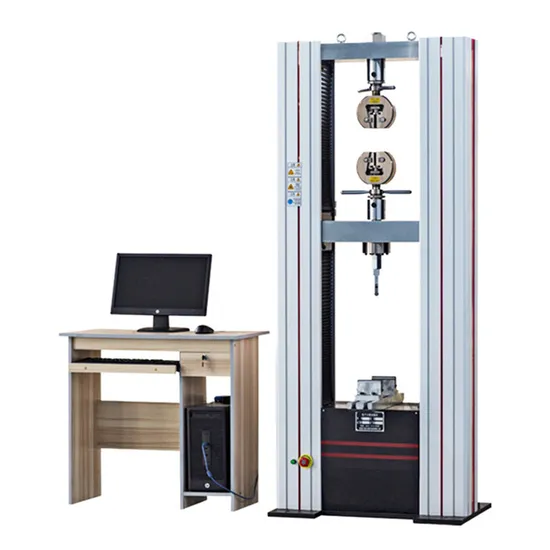

4.Details Images
FAQ
1. Are you a manufacturer?
Yes, we are one of the largest manufacturer of every kinds of testing machines in China. In general, every machine shipped from our factory provides 12 months of free maintenance, taking into account shipping reasons. We can extend the maintenance period for our customers for 2 months.
2. Do you have after-sales service? How can I ask? What about warranty?
Before the delivery of the equipment, we will carry out the factory inspection and the equipment will be shipped after the inspection. If your machine does not work properly, you can contact us and we will try our best to communicate with you via email or skype video chat. We promise we will reply to you within 24 hours and with 3 Within a working day to provide solutions. After confirming that it is really necessary, we can send you new parts or on-site maintenance.
The service does not include mechanical failure due to the following reasons:
(1) Wrong operation;
(2) Privately modified;
(3) Failure caused by non-equipment itself
(4) Use environment that is not suitable for equipment operation. Such as high temperature, humidity, corrosive gas or vibration.
(5) Problems caused by movement or transportation.
(6) Consumable components.
(7) Natural disasters
3. What is the delivery deadline?
Most of the time, we have inventory at the factory. If not, the delivery time is usually 15 to 20 days after receiving the payment. If you need it urgently, we can consider making special arrangements for you.
4. What kind of packaging and transportation do you use?
Under normal circumstances, we will use ordinary orders such as DHL, Fedex, UPS TNT transport. Large orders will use aviation or shipping.
5. Can the device be customized? Can I customize my own design on the device?
We can not only provide standard machines, but we can also provide customized machines according to your needs.
At the same time, we can also place your trademark on the machine.
6. What kind of packaging do you use?
Plastic sealed and sturdy wooden box.
7. What payment methods do you support?
Paypal, T/T, Western Union,L/C
