Latest high accuracy GNSS receiver GPS L1/L2 /L5 GLONASS L1/L2 /L3 BeiDou B1/B2/B3 GPS GNSS RTK Receiver

Product Description

Product Description
Description

Main chip	UBX-G7020-KT
Track sensitivity	-165dBm
Time to First Fix	Extremely fast at low signal level
Built in high LNA	YES
Power consumption	Max 25mA 3.3V
Protocol	NMEA-0183 compliant protocol or custom protocol
Operating temperature	-40 to 85℃
Operating voltage	3.0V to 5.0V
Module type	UART/TTL
Size	45x38x13mm
Certification	RoHS compliant(Lead-free)

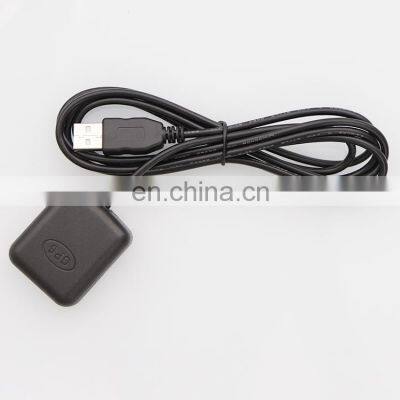

1. Power SupplyRegulated power for the HR-45R-20DUB is required. The VCC Pin Need a stable DC voltage supply. Power supply ripple must be less than 30mV. The input voltage Vcc should be 3.0V~5.0V, Recommended power supply voltage is 3.3V. maximum current is 25mA. Suitable decoupling must be provided by external decoupling circuitry.2. ApplicationThe G-Mouse is equipped with a USB connects to your application platform.The HR-45R-20DUB Gmouse It consists of a UBX-G7020-KT single-chip GPS IC which includes the RF part and Baseband part, a patch antenna, a LNA, a SAW filter, a TCXO, a crystal oscillator, Also comes with a 0.22F crystal capacitor, can backup satellite ephemeris about 2 hours.
Why Choose Us
FAQ
Q1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.
