Professional Design Brewery Stainless Steel Equipment Can Be Customized 500L Mash Tun

Product Description

China Manufacture Professional Design Brewery Stainless Steel Equipment Can Be Customized 500l Mash Tun
Product Parameter

Product Name:	Single Wall Mash Tun
Capacity:	100L - 500L
Material:	SS304/SS316
Surface treatment:	mirror polishing
Working pressure:	0.1Mpa
Weight:	50 - 300kgs
Dimensions:	700*700*962mm or others
Application:	brewery and distillery equipment

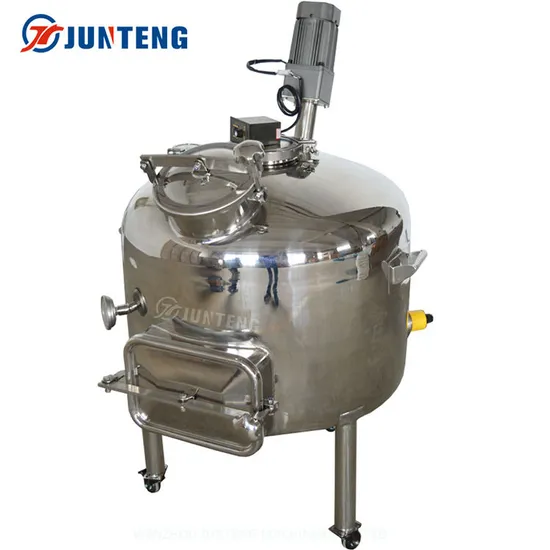

This mash is specially designed and made in excellent craftsmanship and quality. Its top has a stainless manhole that is easy for raw materials loading and clean. The electric heating element can heat the raw material if it's necessary. The agitator can mix the material during heating process in order to make the heating become evenly. The rake can get the waste out through the side manhole too. The false bottom can filter the wash. We can also make jacketed wall mash tun per client requirements. The jacketed mash has electric/steam heating jacket and PU thermal insulation, which makes the heating become more efficiently.
Product Display
Key Components
These key features are very important for the products performance and your products experience.





01.AGITATOR
Agitator can mix the material during heating process in order to make the mash heating
become evenly.





02.STAINLESS STEEL TOP
The stainless steel top manhole is easy for raw materials loading and clean. It can be made with glass manhole per clients requirement.





03.ELECTRIC HEATING ELEMENT
The electric heating element can heat the mash/wash in order to maintain a constant temperature. The casters can be built for the 100L to 500L mash tun for easy moving.





04.FALSE BOTTOM
The false bottom can filter the wash after the sparging with CIP rotatory cleaning ball.
The rake can get the waste out through the side manhole too.









05.FILTER FALSE BOTTOM
The filter false bottom is built in the same level of side rectangle manhole. The rake can push wall waste through this manhole after wash filtering.
Related Products

Production Process
Company Profile
FAQ
Q: Are you a manufacturer or trading company? A: Junteng is leading manufacturer based in Wenzhou, China. Q: Which kind of product can you make? A: We are producing and supplying distillery equipment, pharmaceutical equipment, crafts beer equipment, tanks and sanitary components.
Q: Can you make the products per our requirement? A: Yes, Junteng has strong R&D team that can provide you customized solution and products.
Q: Will you charge us for drafting drawing and designing? A: No, we provide free engineering and designing services for our customer if that is necessary.
Q: What is the warranty of your products? A: The standard warranty is 1 year for our products.
Q: Can you provide service and instruction for installation after delivery? A: Yes, we can provide you free instruction and support online. We can also send engineer to your factory for onsite instruction. But you need to pay the travel expense.
Q: Can we become your local distributor? A: Yes, we are working with many distributors all over the world. We'll be glad to discuss with you for the details if you have interest.
Q: What is your required MOQ? A: The MOQ is 1pc for the stock products. The MOQ of custom made product should be per discussion.
