Product Description

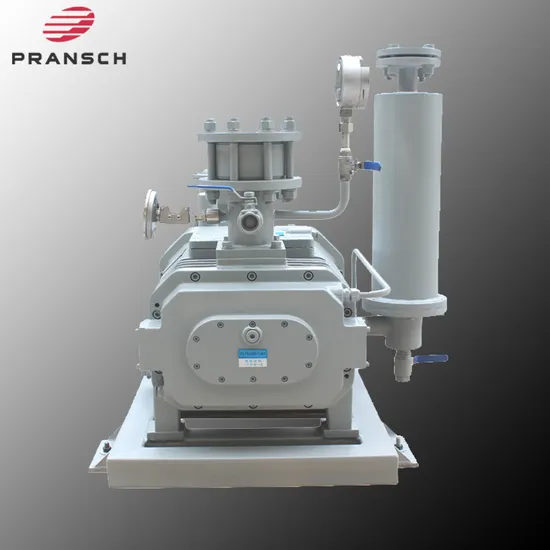

>DSE1100 Dry Screw Vacuum Pumps
Dry screw vacuum pumps operate with two screw rotors rotating in opposite directions. This traps the medium to be pumped between the cylinder and the screw chambers and transports it to the gas discharge. The advanced screw design results in lower electric energy consumption compared to standard screw designs. It also results in a lower heat load of the compressed gas.Cooling can be achieved through a high performance air cooling method eliminating the need of cooling water or indirect cooling method resulting in uniform temperatures throughout the pump body, eliminating cold spots and providing a thermally stable water jacket. The advanced screw design allows for best-in-class hydrogen pumping capabilities. Water cooling can take place in form of both direct water cooling or radiator cooling with air-cooled heat exchangers. Complete series with pumping capacity of 35 to 1100 m3/h Optimal ultimate pressure and broadest range of applications Completely dry and oil-free High pumping speed at atmospheric pressure reduces the pump-down time Water cooling with temperature monitoring Saving energy costs through internal compression Wear-free dynamic seal Direct gas flow and optimized temperature profile minimize deposits Low energy consumption, low noise level Extensive range of accessories

Technical data	Unit	DSE1100
Pumping Speed	m3/h	1100
	L/S	306
Ultimate Vacuum	Torr	0.04
	Pa	5
Motor Power	Kw	37
Motor speed	rpm	2900
Inlet Flange	mm	DN125
Outlet Flange	mm	DN100
Cooling Water Pressure	barg	2~4
Cooling Water Flow	L/min	8
Cooling Water Temp	ºC	5-35
Noise	dB(A)	≤85
Weight	Kg	1500

Applications Crude oil distillation - to separate out individual hydrocarbons Solvent recovery - to recover solvents from a process medium Vacuum-supported distillation - in pharmaceutical or chemical applications Freeze drying Cleaning/Drying of industrial parts Mold evacuation Transfer chambers Process chambers Heat treatment Space simulation Steel degassing Thermoforming Veneer pressing Vacuum assisted resin transfer moulding (VRTM) Flat panel display lamination Solar panel lamination Plasma enhanced deposition Physical vapor deposition Chemical vapor deposition Storage tank systems Rail tanker filling systems Road tanker filling systems Loading and unloading stations for tanker ships Vapor recovery during production processes
