ISO 9001 Certified Lathe Machine Tc-52 Metal Milling Machine

Product Description

Product Description

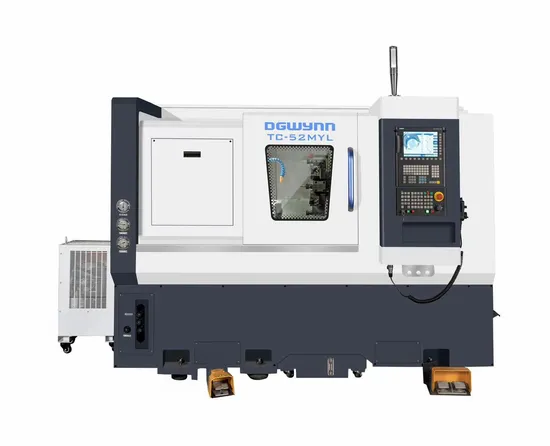

HIGH RIGIDITY,HIGH PRECISION FRAME DESIGN TC-52 MACHINE CENTER
- Our Machine Center is One-piece main body,low gravity 30 degree slant bed provide spindle and turret stable
accuracy.
- Through FEM analysis optimize machine structure design, maintain stable rigidity duringnheavy duty cutting,
also guaranty high accuracyand longer tool life.
- All machine main body adopt FC30 Mihanna iron casting with stiffener to enhance machine structure, heat
balance design satisfy long time machining requirement. FC30 iron casting also effective reduce vibration and prevent
machine deformation.
- X axis and Z axis driven by AC servo motors, provide powerful feed rate and acceleration and deceleration movement precision control. Absolute coordinate encoder instead limited switch, avoid limited switch damage also save time from needless zero point return when machine turn on.
- Option Attachment Of The Machine
- Machine Configuration Dimension Of The Machine
Detailed Photos
Product Parameters

Item	Descirbe	TC-52L	TC-52ML	TC-52MYL	Unit
Ability	Max. swing over bed	560			mm
	Swing over saddle	400			mm
	Max. turning length	500	450	480	mm
	Max. turning Dia.	325	320	380	mm
	Max. bar size	52			mm
X/Y/Z Stroke	X axis stroke	230 (205+25)	210 (185+25)	220 (205+15)	mm
	Y axis stroke			95 (±47.5)	mm
	Z axis stroke	570	560	590	mm
	rapid feed rate	24/24	24/24	24/24/20	m/min
Turret	Turret driven method	Servo tool tower	Power tool tower		Set
	Tool Qty.	12
	Shank specifications	25			mm
	2Power head specification		ER32	ER25	mm
	Boring tool holder specifications	Ø40		Ø32	mm
	Milling spindle speed		5000		rpm
	Motor powerof power head		3.55		kw
Spindle	Spindle nose	A2-6
	Spindle through hole Dia.	Ø66			mm
Tailstock	Tailstock travel	450			mm
	Thimble taper	MT-4
Control System	NC controller	SIEMENS - 828D
	spindle motor power	22			kw
	spindle speed	4000			rpm
	X/Z senvo motors	3.3			kw
	Y axis servo motors			2.3	kw
Dimensions	L x W x H	2700*1820*1900			mm
	Weight	≈ 4.6		≈ 4.8	Ton

Type & Scope of Processing
