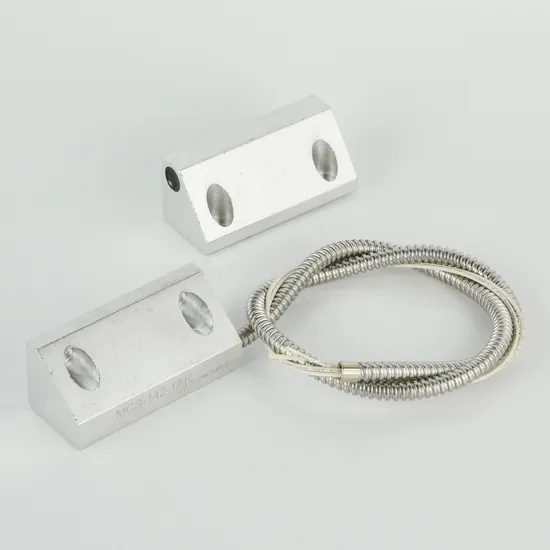

Rugged Door Contact Sensors
| US$5.20 | 1,000 Pieces (MOQ) |
Basic Info.
Model NO.
BSD-3015
Usage
Door, Personal, Window
Certification
CE, UL
Material
ABS+Magnet
Wire
#22AWG with 22" Armored Cable
Loop Type
Closed
Reed Form
N/O
Function
Plunger Flush Type
Product Name
Rugged Door Contact Sensors Bsd-3015
Transport Package
Bag/Carton
Specification
#22AWG with 22" armored cable
Trademark
Sentek
Origin
China
HS Code
85319010
Production Capacity
1000000PCS/Year
Product Description
Specification:
| Part Number | Loop Type | Reed Form | Closed Gap [Inch(mm)] | Depature Gap [Inch(mm)] | Maximum Initial Contact Resistance (Ohm) | Maximum Contact Rating (W) | Maximum Switching Voltage (VDC/VAC) | Maximum Switching Current (A) |
| BSD-3015 | Closed | N/O | 2.95 (75) | 3.18 (80) | 0.150 | 7.5 | 100 | 0.4 |
| BSD-3015WG | Closed | N/O | 3 1/2 (90) | 3.75 (95) | 0.150 | 7.5 | 100 | 0.4 |
| BSD-3015A | Open | N/C | 2 1/2 (65) | 0.150 | 3 | 30 | 0.2 | |
| BSD-3015C | Closed & Open | SPDT | 2 1/2 (65) | 0.150 | 3 | 30 | 0.2 | |
| BSD-3015D | DPDT | 2-SPDT | 2 1/2 (65) | 0.150 | 3 | 30 | 0.2 |
Dimension (mm):
Product Features:
* Small size
* Heavy duty Aluminum housing
* Extude aluminum casings for harsh environments
* Wire: #22AWG with 22" armored cable
* Longer cable available on request
* Switches or magnets are available separately
* Jacket cable available: BSD3015-J
* Resistor, Diode and Supervisory Loop available on request
